Specifications
1. Various types.2 .High efficiency and large capacity.
3. Consists of standard parts.
4. ISO and CE Certification.
We are professional conveyor supplier in china, and available around the world for industrial applications where difficulties in bulk material conveyor system lead to problems in production. Leading markets include cement conveyor system; port conveyor; coal-fired electric generating facilities; coal, metallic, and non-metallic mineral mines; steel mills and foundries; pulp and paper mills; grain, food, and chemical processing operations; aggregate, cement, and concrete producers; and bulk transportation facilities.

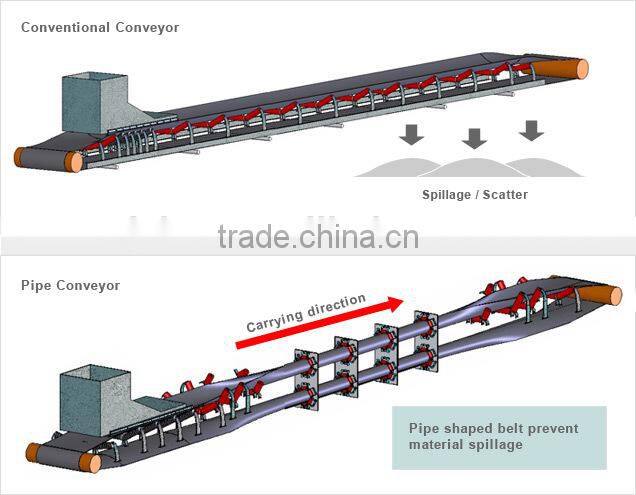

Our company can manufacture multi-tape conveyors: curved conveyor, long-distance conveyor, mine conveyor, pipe conveyor, tire conveyor, high-angle conveyor and air cushion conveyor,etc.
Features and advantage:
1.Conveyor systems are the logical connection between the phases of mining, processing, and storage.
2.Our overland belt conveyor systems are custom-made to meet the specific demands of the client's needs, the type and volume of material to be handled, and the existing topography of the route,as well as the prevailing climatic conditions.
3.Long-distance conveyors are the most effective means of transporting bulk materials over long distances,and costs are often lower than with truck or rail transportation.
Technical Parameter
Belt width(mm) |
Angle of dynamicrepose |
Belt speed(m/s) |
|||||
2.0 |
2.5 |
3.15 |
4.0 |
5.0 |
6.3 |
||
Capacity (t/h) | |||||||
800 |
10°-20° |
380-550 |
480-680 |
600-850 |
--- |
--- |
--- |
1000 |
630-880 |
790-1110 |
1000-1400 |
1200-1700 |
--- |
--- |
|
1200 |
900-1300 |
1150-1600 |
1450-2050 |
1850-2600 |
2300-3200 |
--- |
|
1400 |
1250-1800 |
1580-2250 |
2000-2800 |
2550-3600 |
3190-4500 |
--- |
|
1600 |
1700-2350 |
2100-2950 |
2650-3850 |
3400-4750 |
4250-5950 |
--- |
|
1800 |
2150-3050 |
2700-3800 |
3440-4840 |
4350-6100 |
5450-7650 |
6800-9600 |
|
2000 |
--- |
--- |
4380-6050 |
5480-7680 |
6850-9600 |
8700-12000 |
|
2200 |
--- |
--- |
5300-7300 |
6700-9300 |
8400-11700 |
10600-14600 |
|
2400 |
--- |
--- |
6300-8600 |
7900-11000 |
9900-13800 |
12600-17200 |
|
Our services:
1.Main Equipment Brand: Motor-Siemens or ABB, Reducer: SEW or Flender; Bearing: SKF
2. Delivery time: Four months after the contract effected
3. Offer validity: 60 days
4. Quality Guarantee: One year
5.Payment:20% of total contract price should be paid after the contract effected with 30 days; 70% of total contract price should be paid within 30 days after the goods delivered; 10% of total contract price should be paid with 30 days after the contract equipment is commission and accepted.
Overseas Exhibition
Certificate Authority
Company information :
Jiaozuo Creation Machinery Co., Ltd. is the globe supplier of the bulk material handling system (EPC) especially for mining, port, coal, power plant, metallurgy, construction (cement), chemical, food field and etc. with our comprehensive technology and service.

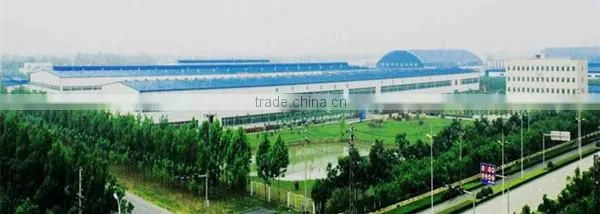

Since 1960, Jiaozuo Crane & Conveyance Machinery Plant (state own) which is special for manufacturing belt conveyor, portable conveyor, enclosed belt conveyor, pipe conveyor, mining conveyor, high angle belt conveyor, vertical belt conveyor; and in 2003,it reformed to private own named Jiaozuo Creation Machinery Co., Ltd. the headquarters covers an area of 150000 m², building acreage 70000 m².
Skype ID: William--Wei
We are dedicated to improving the quality and service the world . Sincerely welcome your cooperation and common development hand.
Any questions from you are welcome and will be replied in 24 hours.
