SMDT 2015 Fashionable Digital Signage Control Board With Android System

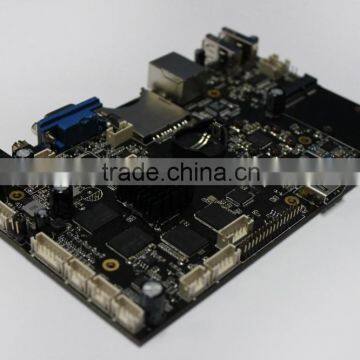

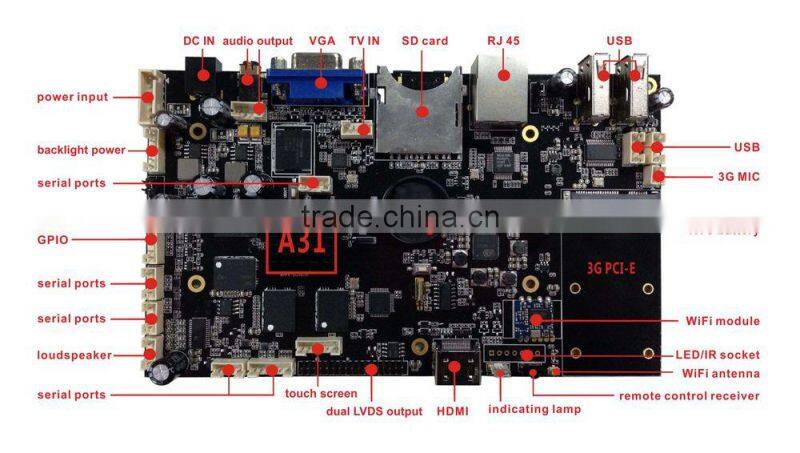

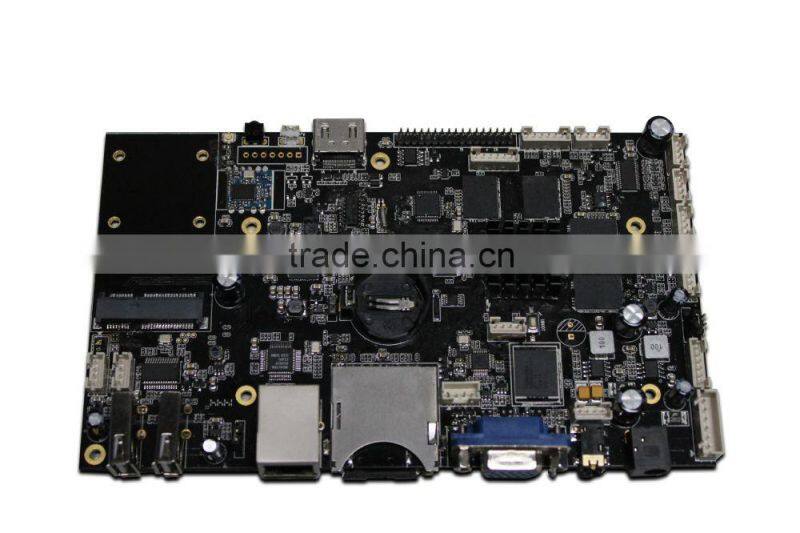

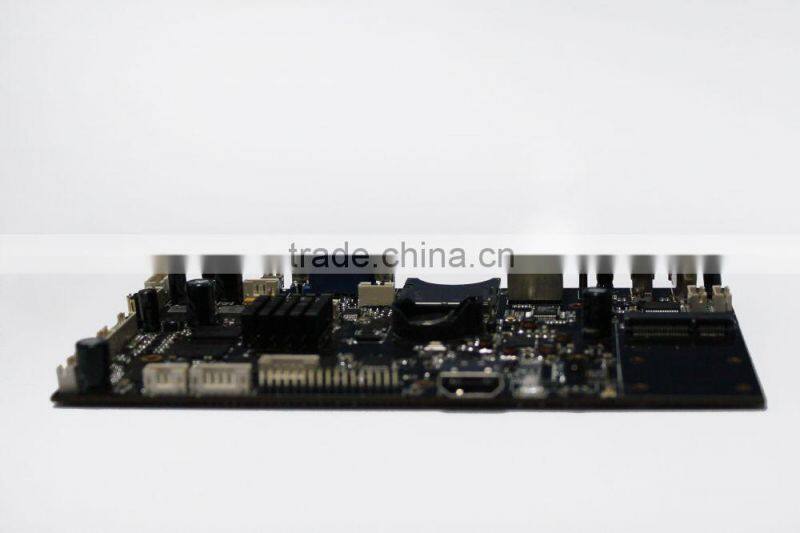

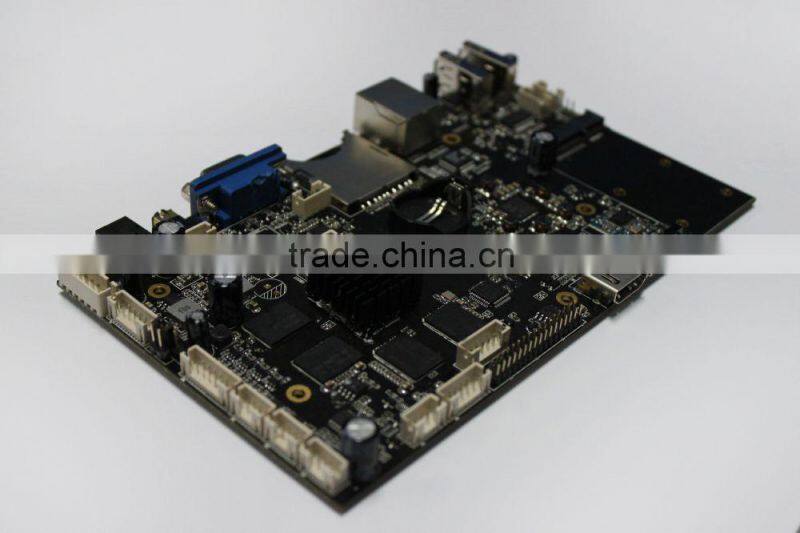

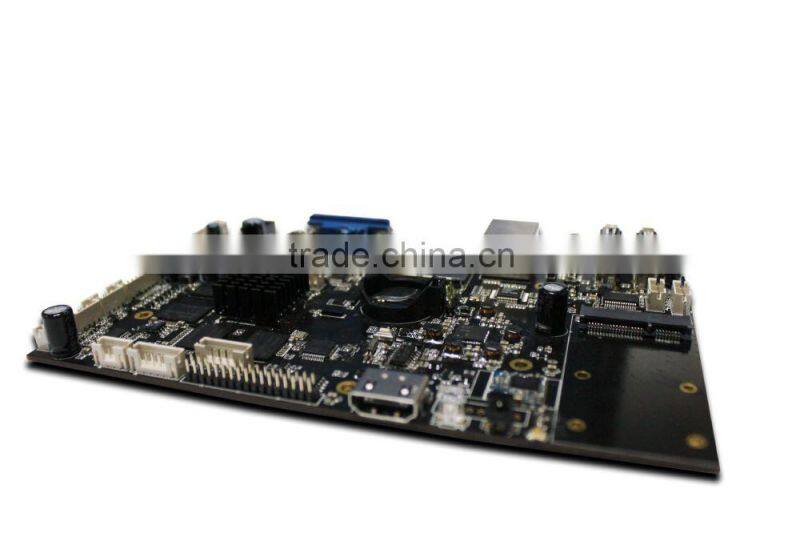

MBOX306GS digital signage board is upgraded from MBOX106GS. It removes not commonly used SATA interface and add three(total four)universal extensive serial ports for customers.
CPU is Allwinner A31 quad-core 64 dual channel DDR3 high-speed processor. Main frequency is up to 1.2GHz and have strong video processing ability which can be compatible with most video and image decoding format.
MBOX306GS carries Android 4.4 system,standard configures 2GB DDR3 and 8GB EMMC, combining multimedia decoding, LCD driver,Ethernet,HDMI,WIFI,3G and camera in one, supporting HDMI/VGA video output,dual eight LVDS driver, dynamically allocating LCD parameter, easily realizing support for 7 inches to 60 inches LCD. The product is well suitable for HD network play box, HD network advertising machine and variable interactive multimedia smart device.
1. High Integration: integrate USB/LVDS/Ethernet/HDMI/WIFI in one, combine USB/LVDS/Ethernet/HDMI/WIFI in one, simplifying design of whole machine. SD card can be inserted.
2. Built-in PCI-E 3G module: support Huawei, ZTE and many PCI-E 3G module, more suitable for remote maintenance of advertising all-in-one machine, saving labor cost.
3. Ample Extended Interfaces: four USB interfaces (two pins ports, two standard USB ports), two extensible serial ports, which can satisfy various requirements of peripheral in the market.
4. High Definition:maximum support 1080P decoding and variable LCD panels with LVDS signal.
5. Full function:support portrait and landscape screen, video multi-screen, scrolling screen, timing switch, USB data input and so on.
6. Easy Management:humanized play list maker software, convenient for advertising play management and control. Play log, easy for knowing the play.
Main Hardware Index | |
CPU |
Allwinner A31 64 bit high-speed processor,quad-core,main frequency up to 1.2GHz |
Internal Memory |
2G |
Built-in Memory |
EMMC INAND 8G |
Decoding Definition |
Max support 1080P |
Operating System |
Android 4.4.X |
Play Mode |
support loop, timing, inter-cut and variable play modes |
Network Support |
3G,Ethernet,support WiFi,wireless device extension. |
Video Play |
support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Image Format |
support BMP, JPEG, PNG, GIF |
USB2.0 port |
2 USB HOST, 2 USB pin ports |
Serial Ports |
3 pin serial ports |
Ethernet |
one,10M/100M self-adapting Ethernet |
SD Card |
compatible with SD and TF card |
LVDS port |
one,can drive 50/60Hz LCD panel directly |
HDMI port |
one, support 1080P output |
Audio and Video Output |
left and right channel output, built-in dual channel 4R/20W,8R/10W amplifier |
RTC real time clock |
support |
Timing Switch |
support |
System Upgrade |
Support USB upgrade, network upgrade |
Application.
Good after-sale service: wherever you located,in and out off China,we will provide you with good technical support.
