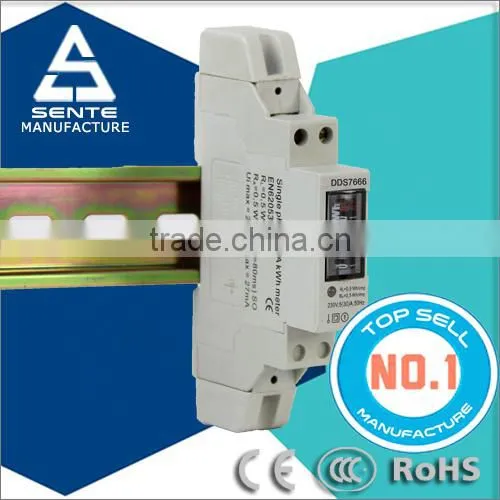

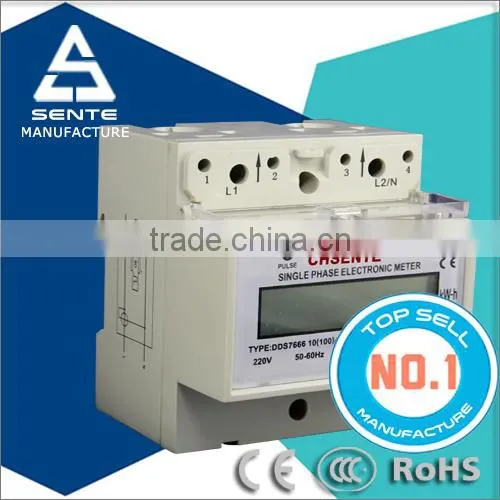

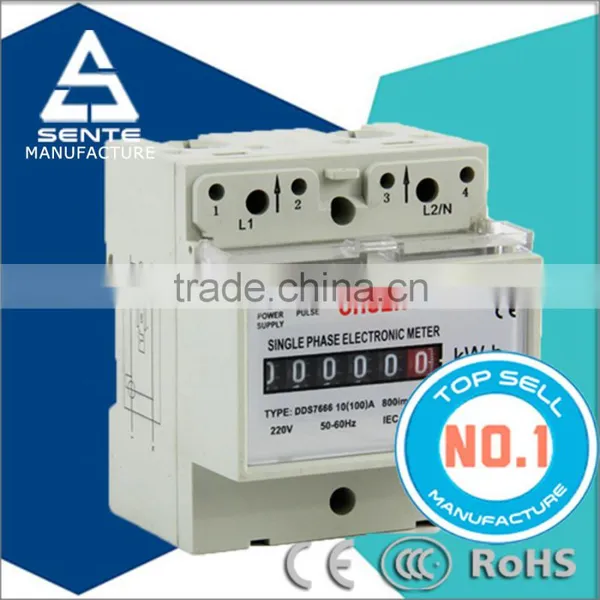

DDS 76666 single phase electric DIN rail energy meter voltmeter digital panel meter
1, Product Brief Introduction
Model DDS7666 single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopts micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. It has minimum size, and also a new single phase two wire active energy meter. It has already passed the test of the international authority CE. The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurately and directly measure 50HZ or 60Hzactive energy consumption from single phase AC electricity net. This meter has white backlight source eight digits LCD monitors shows the active energy power consumption.
2, Function and Features

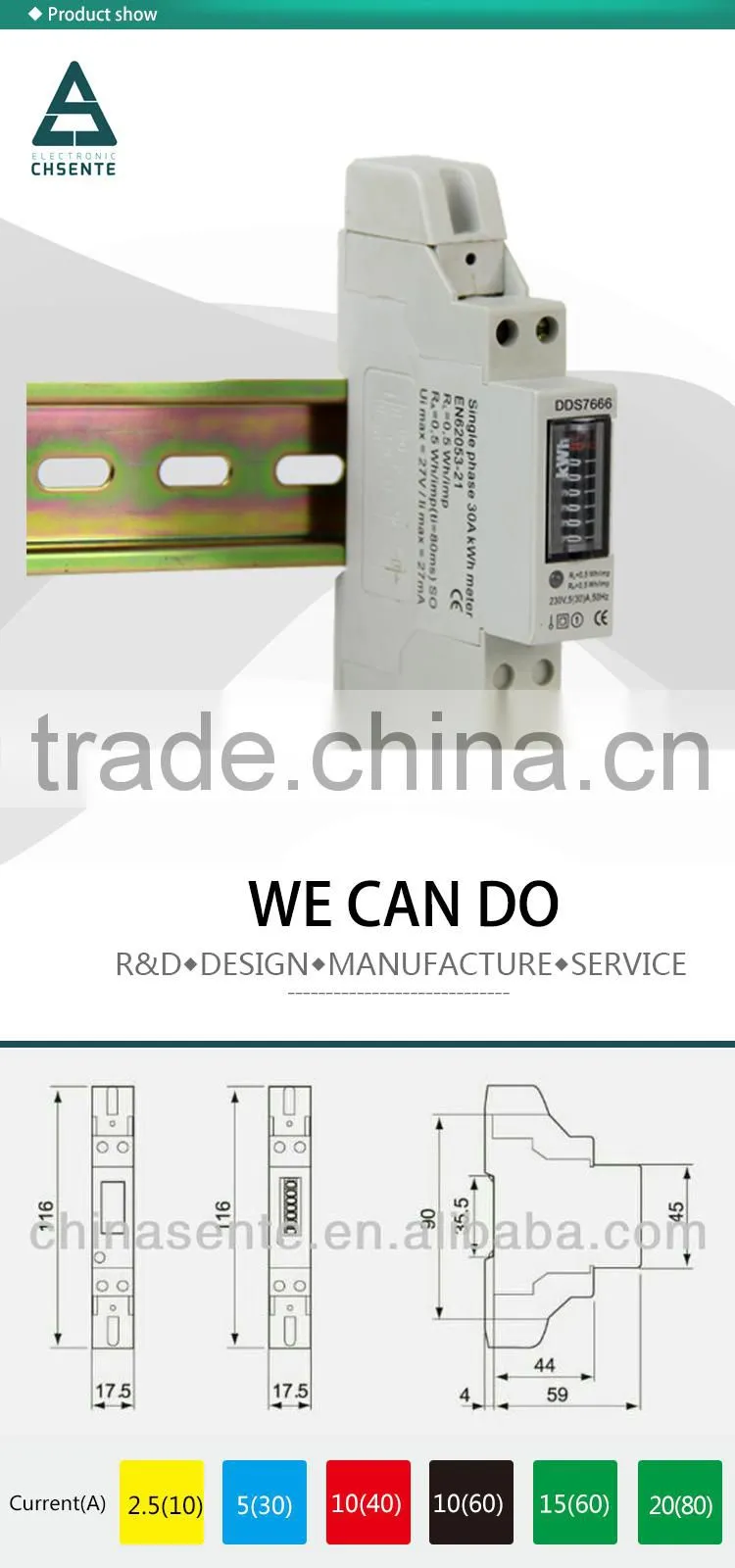

- 35mm standard DIN rail installation, complying with standard DIN EN 50022.
- Single pole width(Modules 17.5mm), complying with standard DIN43880.
- standard configuration pulse output with no power complying withstandard IEC 62053-31 and DIN 43864.
- Standard configuration 7+1 digits display(9999999.1 kWh)by white backlight source LCD. May select 7+1 digits display(999999.1 kWh) without backlight source normal LCD.
3. Main Technical Data
Model |
Accuracy |
Reference voltage(V) |
Current specifications(A) |
Starting current |
Insulation performance |
DDS5558 |
Class 1 |
127/230 |
5(32) |
0.02 |
AC voltage 4kv for 1 minute, 1.2/50us wave form impulse voltage 6kV |
NOTE: WE FOLLOW YOUR REQUIREMENT TO CUSTOMIZE THE PRODUCTS IF YOU REQUIRED, Model shows below

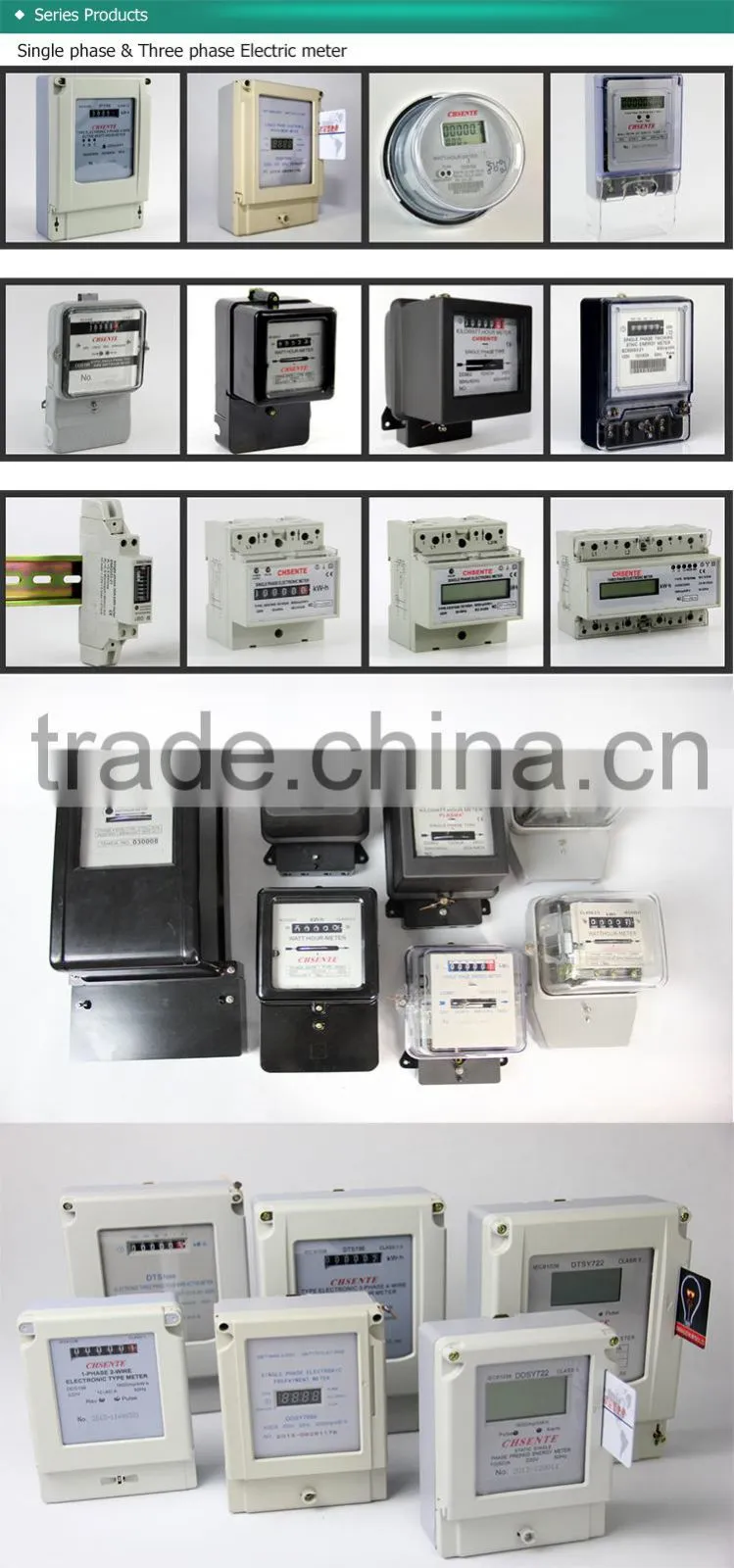

-DDSY/DTSY7666 Single phase & Three phase prepaid meter
-DDS196/DTS196 Energy meter

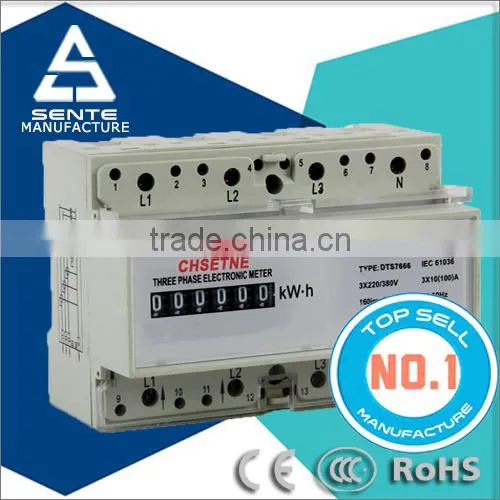

-DDS7666/DTS7666 Single phase Round energy meter/ Three phase smart meter
-DD862 Single phase Electrmechanical Electric meter
Plz feel free to contact me for more detail of Electric products
The meter is highly precise, highly sensitive. Highly reliable wide load rang, low power loss, the power in double directions. Both positive and negative work can be measured in accumulated same direction. So it can prevent any power steeling, such as reverse steeling. live-earth wire steeling, short circuit and so on.

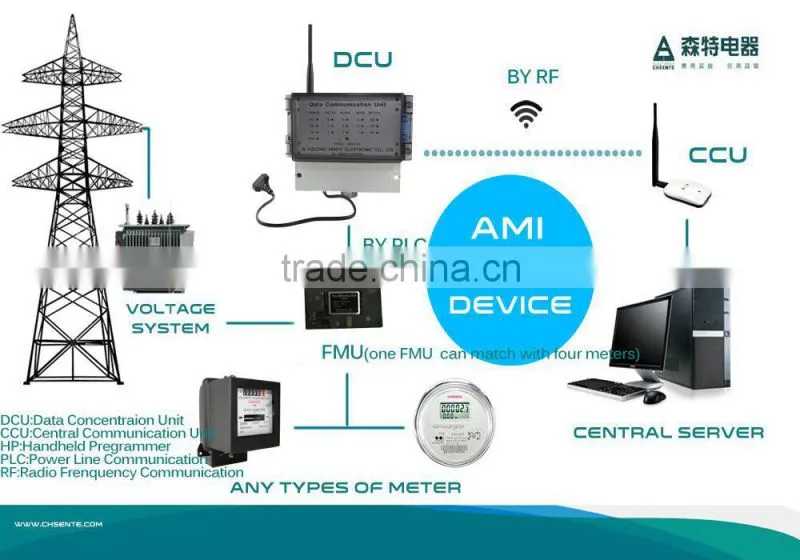

ANY TYPES OF METER CAN MATCH WITH AMI SYSTEM, ONLY WE CAN PROVIDE THAT FOR YOU
is a young team full of passion,most of staffs in SENTE’s time have abundant experience.What's more, we are devoted ourselves to exchange integrity for customers’ confirm. According to the different requirements of customers, actively try our best to assist customer to offer professional service, provide reasonable suggestion and guarantee quality on the base of completing the order on time, in addition,we also help customer save the cost.We all believe that only sowing customer satisfaction seeds can have business growth in the near future.
