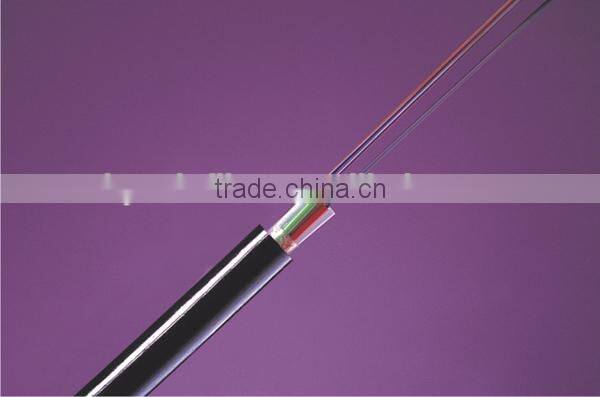

Manufacturer Outdoor Stranded Loose Non-metallic Strength Member GYFTY Optic Fiber Cable
Introduction:
The instruction of GYFTY53 is the single mode or multimode inserted to loosely tube by high the plastic of moudle. Filling warting blocking material in the tube. One single nonmetal strength member(FRP) in the mid of cable, added a layer of polyethylene sheath on FRP for some cores of fiber cable. armored steel tape for protecting. Finally, all of parts packed with PE sheath are extruded to cable by machine.
Features:
1. Low dispersion and attenuation.
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental characteristics.
3. Double sheath structure makes cable have nice moisture resistance and crush resistance performance.
4. Small cable diameter, light cable weight, easily to install.
Application:
1.Adopted to Outdoor distribution.
2.Suitable for aerial duct and buried method.
3.Long distance and local area network communication.
Main Technical Parameters:
No. of Fibers |
|
2-36 |
38-72 |
74-96 |
98-120 |
122-144 |
Design |
|
6*6 |
6*12 |
8*12 |
10*12 |
12*12 |
Loose Tube / Filler - Ø |
mm |
1.9 |
2.3 |
2.3 |
2.3 |
2.3 |
CSM Ø |
mm |
2.0 |
2.4 |
4.0 |
5.5 |
7.1 |
Outer Sheath Thickness |
mm |
2.0 |
2.0 |
2.0 |
2.0 |
2.0 |
Cable Diameter |
mm |
14.1 |
15.1 |
16.3 |
17.8 |
19.4 |
Cable Weight |
Kg/km |
193 |
212 |
246 |
288 |
336 |
