Outdoor Steel Wire Armoured GYXTC8S Fiber Optical Cable
Introduction:

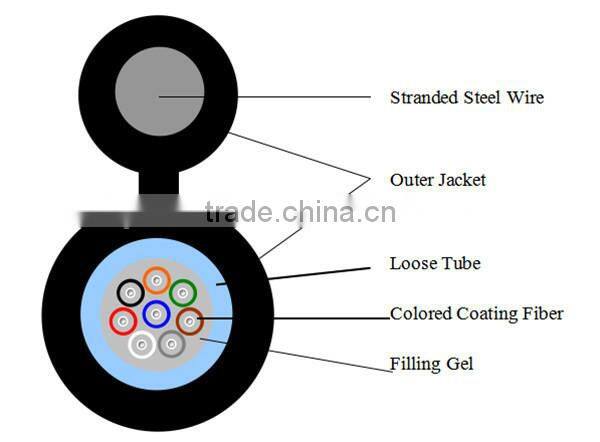

The fibres,either of singlemode or multimode type, are placed in a loose tube made of high modulus plastic. The tubes are filled with a waterresistant filling compound. After PSP is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. This kind of cable is specifically applied for self-supporting aerial installation.
Features:
1.Cores:as per buyers' request.
2.Stell tape armoured.
3.Pe jacket,steel wire stranded messenger.
Application:
1.Usable for aerial installation
2.Long-haul communication systems
3.Junction communication systems
4.Subscriber network systems
5.Local area network systems
Main Technical Parameters:
Cable type |
Fiber count |
Max fiber count |
Cable diameter mm |
Cable weight Kg/km |
Tensilse Strength Long/Short term N |
Crush Resistance Long/Short term N |
GYXTC8S-2-8 |
2-8 |
8 |
8.1×16.9 |
117 |
≥2000/≥6000 |
≥300/≥1000 |
GYXTC8S -10-12 |
10-12 |
12 |
8.1×16.9 |
121 |
