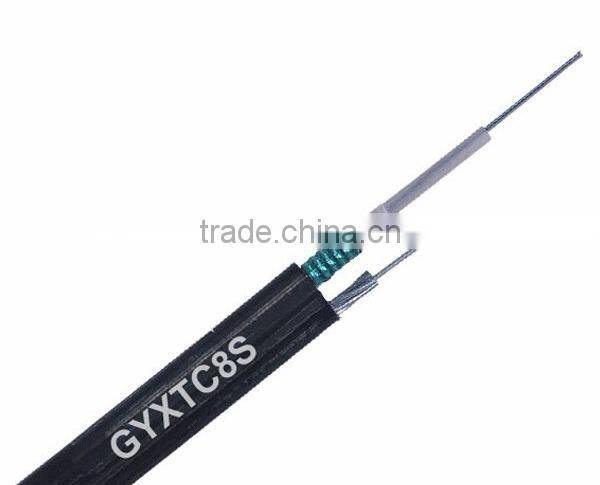

8 Core Figure 8 Self-support Outdoor Optic Fiber Cable
Introduction:

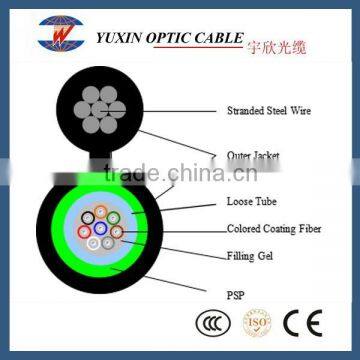

The fibres,either of singlemode or multimode type, are placed in a loose tube made of high modulus plastic. The tubes are filled with a waterresistant filling compound. After PSP is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. This kind of cable is specifically applied for self-supporting aerial installation.
Main Technical Parameters:
Fiber Parameters:
No. |
Items |
Unit |
Specification |
|
G.652D | ||||
1 |
Mode Field Diameter |
1310nm |
μm |
9.2±0.4 |
1550nm |
μm |
10.4±0.5 |
||
2 |
Cladding Diameter |
μm |
124.8±1.0 |
|
3 |
Cladding Non-Circularity |
% |
≤1.0 |
|
4 |
Core-Cladding Concentricity Error |
μm |
≤0.6 |
|
5 |
Coating Diameter |
μm |
245±7 |
|
6 |
Coating Non-Circularity |
% |
≤6.0 |
|
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
|
8 |
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
|
9 |
Attenuation(max.) |
1310nm |
dB/km |
≤0.4 |
1550nm |
dB/km |
≤0.3 |
||
Cable Parameters:
Items |
Specifications |
|
Fiber Count |
8 |
|
Colored Coating Fiber |
Dimension |
250±15μm |
Color |
Blue,Orange,Green,Brown, Grey,White,Red,Black,
|
|
Loose Tube |
Dimension |
2.50±0.05mm |
Material |
PBT |
|
Color |
Natural |
|
Strength Member |
Dimension |
7*1.0mm |
Material |
Stranded Steel Wire |
|
Outer Jacket |
Dimension |
5.5±0.2mm /8.5±0.3mm |
Material |
PE |
|
Color |
Black |
|
Mechanical and Environmental Characteristics:
Items |
Unite |
Specifications |
Tension(Long Term) |
N |
1500 |
Tension(Short Term) |
N |
2500 |
Crush(Long Term) |
N/10cm |
1000 |
Crush(Short Term) |
N/10cm |
2000 |
Min. Bend Radius(Dynamic) |
mm |
20D |
Min. Bend Radius(Static) |
mm |
10D |
Installation Temperature |
℃ |
-20~+60 |
Operating Temperature |
℃ |
-40~+70 |
Storage Temperature |
℃ |
-40~+70 |

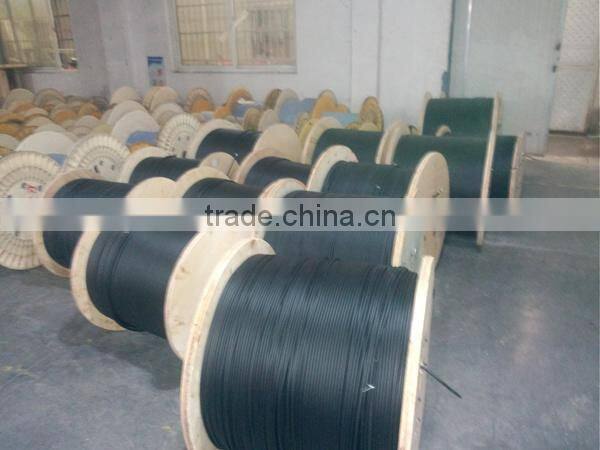

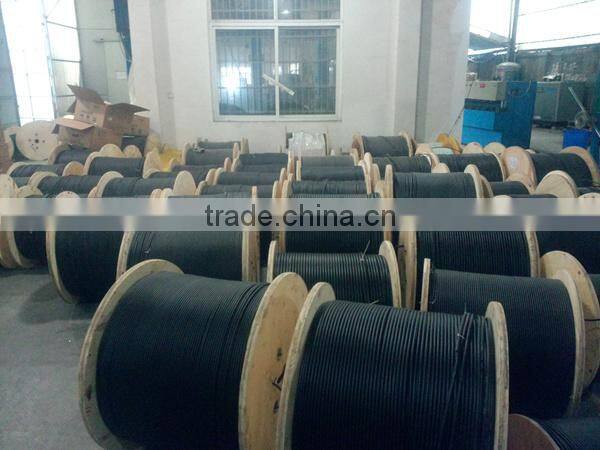

Pictures:
If you have any interest about our products,please contact with me anytime.
Contact with me:
Skype:mickeyma90
Phone:+8618758357139
