48 Core SM MGTS Mining Flame Resistant Underground Fiber Cable
Introduction:
The fibers, 250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. The cable is completed with a fiame-retardant sheath.
Application:
It can be used in Duct,Aerial and Direct buried.

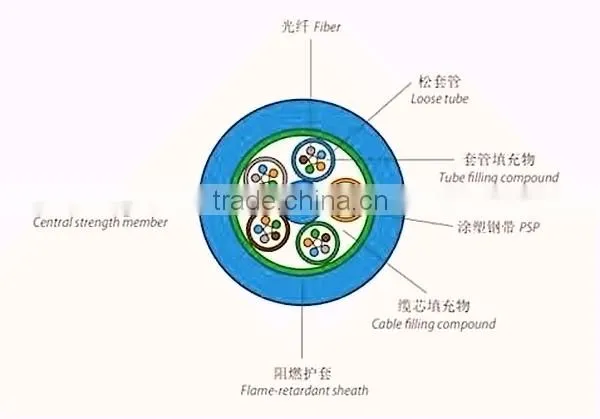

Structure:
Technical Parameters:
Technical Parameter
|
Fiber Count |
Tubes |
Fillers |
Cable Diameter (mm) |
Cable Weight (kg/km) |
Tensile Strength Long/Short Term (N) |
Crush Resistance Long/Short Term (N/100mm)
|
Bending Radius Static/Dynamic (mm) |
2~6 |
1 |
4 |
9.5 |
112 |
600/1500 |
300/1000 |
10D/ 20D |
8~12 |
2 |
3 |
9.5 |
112 |
600/1500 |
300/1000 |
10D/ 20D |
14~18 |
3 |
2 |
9.5 |
112 |
600/1500 |
300/1000 |
10D/ 20D |
20~24 |
4 |
1 |
9.5 |
112 |
600/1500 |
300/1000 |
10D/ 20D |
26~30 |
5 |
0 |
9.5 |
112 |
600/1500 |
300/1000 |
10D/ 20D |
32~36 |
6 |
0 |
10.0 |
131 |
1000/3000 |
300/1000 |
10D/ 20D |
38~48 |
4 |
1 |
11.0 |
188 |
1000/3000 |
300/1000 |
10D/ 20D |
50~60 |
5 |
0 |
11.8 |
188 |
1000/3000 |
300/1000 |
10D/ 20D |
62~72 |
6 |
0 |
12.4 |
204 |
1000/3000 |
300/1000 |
10D/ 20D |
74~84 |
7 |
1 |
13.8 |
255 |
1000/3000 |
300/1000 |
10D/ 20D |
86~96 |
8 |
0 |
13.8 |
255 |
1000/3000 |
300/1000 |
10D/ 20D |
98~108 |
9 |
1 |
15.6 |
284 |
1000/3000 |
300/1000 |
10D/ 20D |
110~120 |
10 |
0 |
15.6 |
284 |
1000/3000 |
300/1000 |
10D/ 20D |
122~132 |
11 |
1 |
17.4 |
340 |
1000/3000 |
300/1000 |
10D/ 20D |
134~144 |
12 |
0 |
17.4 |
340 |
1000/3000 |
300/1000 |
10D/ 20D |
Transmission Characteristics:
|
G.652 |
G.655 |
50/125um |
62.5/125um |
|
|
Max Attenuation (dB/km)
|
850 nm |
|
|
3.0 |
3.3 |
1300 nm |
|
|
1.0 |
1.0 |
|
1310 nm |
0.36 |
0.4 |
|
|
|
1550 nm |
0.22 |
0.23 |
|
|
|
Cable Cute-off Wavelength (nm) |
≤1260 |
≤1450 |
|
|
|
