Networking cable cat 6 cable
Category 5E (Cat 5E) is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling
for computer networks such as Ethernet, supports a frequency range of up to 100MHz and is designed for transmission
speeds of up to 1 gigabit per second(Gigabit Ethernet). It is also used to carry other signals such as telephony and video.

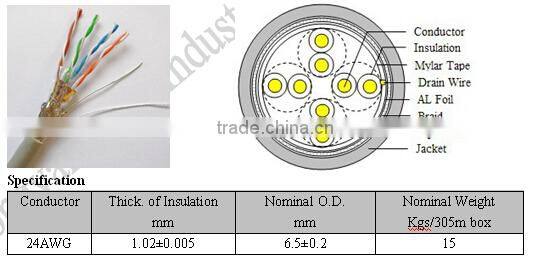

1.cat 5e cable ftp Constructions:
2.Conductor AWG:24awg or 26awg or 28awg, or as per your request
3.Conductor Material:CCA,CCA+CCS,BC(BARE COPPER),
4.Insulation:high density polyethylene(HDPE)
5.Drain Wire:Tinned Copper
6.Twisting:4 twisted pairs, 2 single conductors paired,
7.Twisted pair color code: 1: white- blue / blue 2: white- orange / orange
3: white-green / green 4: white-brown / brown
8.Jacket: PVC/PE/LSZH(Low Smoke Zero Halogen)
9.Connector:RJ45
10.Temperature Range: 0° to +70°C
11.Electrical Characteristics:
Max. Conductor Resistance: 9.2Ω/100m |
Min. Insulation Elongation: 300% |
||||||
Max. Resistance Unbalance: 2.4% |
Min. Propagation Velocity: 0.62C m/s |
||||||
Min. Conductor Elongation: 20% |
Characteristic Impedance: 100±15Ω |
||||||
Min. Insulation Resistance: 7000MΩ/km |
|
||||||
|
Frequency MHz |
Attenuation dB/100m |
NEXT dB |
PS-NEXT dB |
RL dB |
ELFEXT dB |
PS-ELFEXT dB |
|
1 |
2.0 |
65.3 |
62.3 |
20.0 |
64.0 |
61.0 |
|
4 |
4.1 |
56.3 |
53.3 |
23.0 |
52.0 |
49.0 |
|
8 |
5.8 |
51.8 |
48.8 |
24.5 |
45.9 |
42.9 |
|
10 |
6.5 |
50.3 |
47.3 |
25.0 |
44.0 |
41.0 |
|
16 |
8.2 |
47.2 |
44.4 |
25.0 |
39.9 |
36.9 |
|
20 |
9.3 |
45.8 |
42.8 |
25.0 |
38.0 |
35.0 |
|
25 |
10.4 |
44.3 |
41.3 |
24.3 |
35.8 |
33.0 |
|
31.25 |
11.7 |
42.9 |
39.9 |
23.6 |
34.1 |
31.1 |
|
62.50 |
17.0 |
38.4 |
35.4 |
21.5 |
28.1 |
25.1 |
|
100 |
22.0 |
35.3 |
32.3 |
20.1 |
24.0 |
21.0 |
|

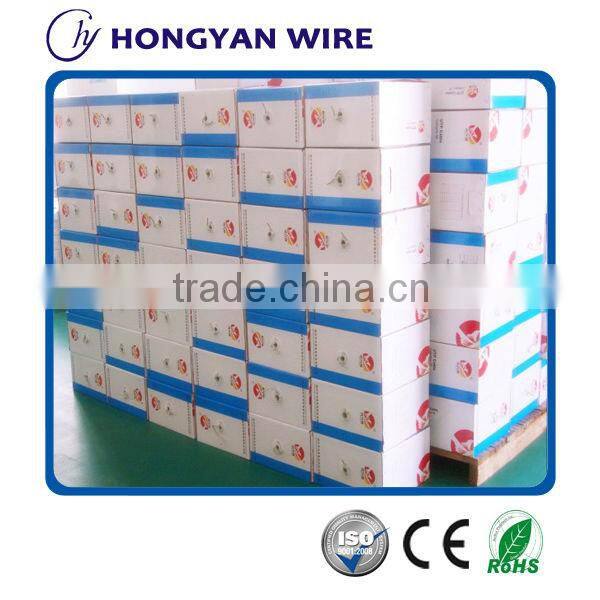

1)polybag or carton packing
2)pack it as per your request
1. inquiries will be replied within 24 hours.
2. Professional manufacturer, 16 years manufacturing experience.
3. OEM/ODM available
1) Printing your logo on the cable is available
2) Printing your logo on the pull box, or make it according to your design is available
3) Any your reasonable idea on cable, packing box are available.
4. High quality, reasonable and competitive price, fast lead time.
5. Good after-Sale Service.
1) All products will have been strictly Quality Checked in house before packing.
2) All products will be well packed before shipping.
