High quality 24awg ethernet cat5e
1.Description
Category 5E Cable(Cat 5E) is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 100MHz and is designed for transmission speeds of up to 1 gigabit per second(Gigabit Ethernet). It is also used to carry other signals such as telephony and video.
2.Standards
- ISO/IEC11801
- ANSI/EIA/TIA-568-B.2
3.Conductor
Class 1 solid plain copper
4.Insulation
HDPE(High Density Polyethylene)
5.Jacket
- PVC(Polyvinyl Chloride)
- LSZH(Low Smoke Zero Halogen)
6.Core Identification
- Blue, White/Blue;
- Orange, White/Orange
- Green, White/Green
- Brown, White/Brown
Conductor |
Thick. of Insulation mm |
Nominal O.D. mm |
Nominal Weight Kgs/305m box |
24AWG |
0.91±0.005 |
5.0±0.2 |
9.0 |
9.Electrical Characteristic
Max. Conductor Resistance: 9.2Ω/100m |
Min. Insulation Elongation: 300% |
||||||
Max. Resistance Unbalance: 2.4% |
Min. Propagation Velocity: 0.62C m/s |
||||||
Min. Conductor Elongation: 20% |
Characteristic Impedance: 100±15Ω |
||||||
Min. Insulation Resistance: 7000MΩ/km |
|
||||||
|
Frequency MHz |
Attenuation dB/100m |
NEXT dB |
PS-NEXT dB |
RL dB |
ELFEXT dB |
PS-ELFEXT dB |
|
1 |
2.0 |
65.3 |
62.3 |
20.0 |
64.0 |
61.0 |
|
4 |
4.1 |
56.3 |
53.3 |
23.0 |
52.0 |
49.0 |
|
8 |
5.8 |
51.8 |
48.8 |
24.5 |
45.9 |
42.9 |
|
10 |
6.5 |
50.3 |
47.3 |
25.0 |
44.0 |
41.0 |
|
16 |
8.2 |
47.2 |
44.4 |
25.0 |
39.9 |
36.9 |
|
20 |
9.3 |
45.8 |
42.8 |
25.0 |
38.0 |
35.0 |
|
25 |
10.4 |
44.3 |
41.3 |
24.3 |
35.8 |
33.0 |
|
31.25 |
11.7 |
42.9 |
39.9 |
23.6 |
34.1 |
31.1 |
|
62.50 |
17.0 |
38.4 |
35.4 |
21.5 |
28.1 |
25.1 |
|
100 |
22.0 |
35.3 |
32.3 |
20.1 |
24.0 |
21.0 |
|

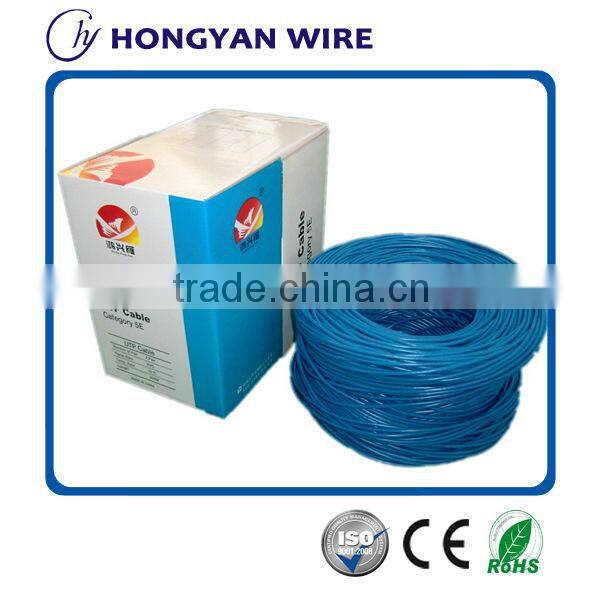

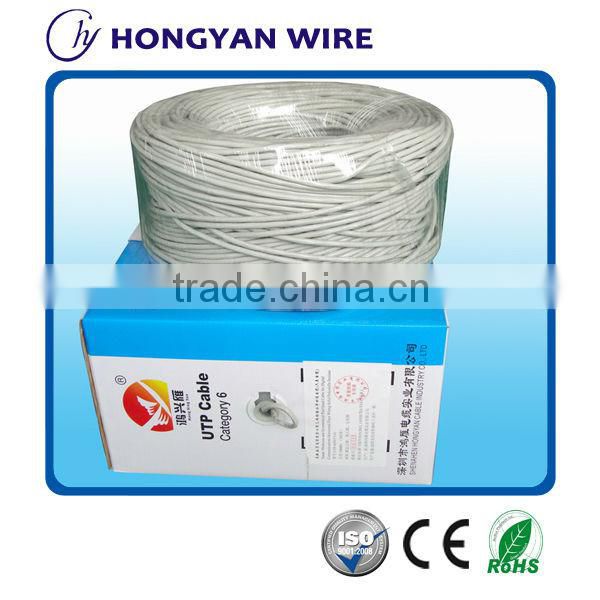

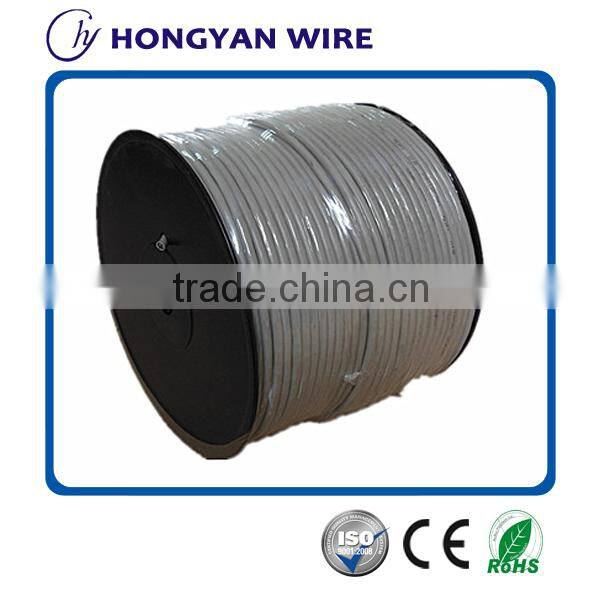

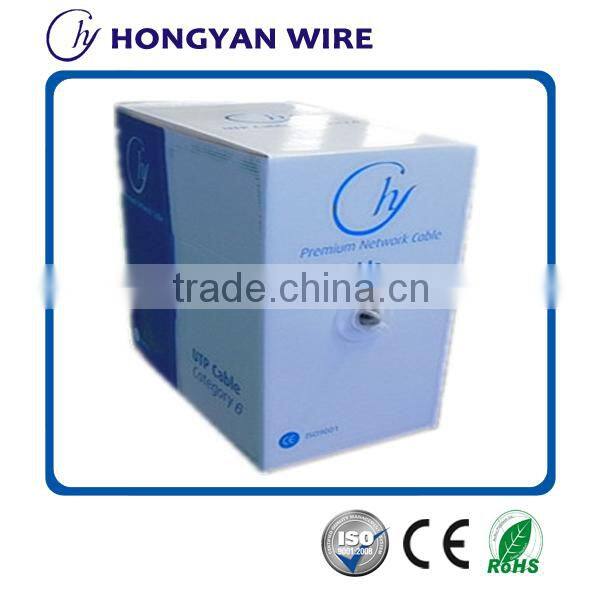

10. Packing and pictures
305M/Box (other packing is optional)

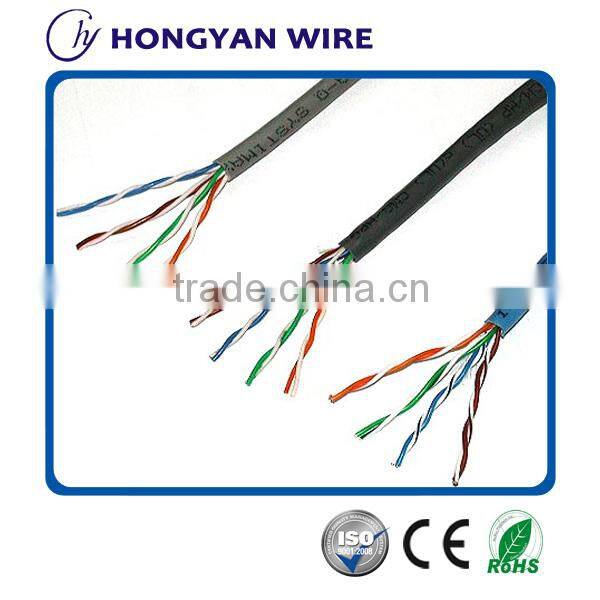

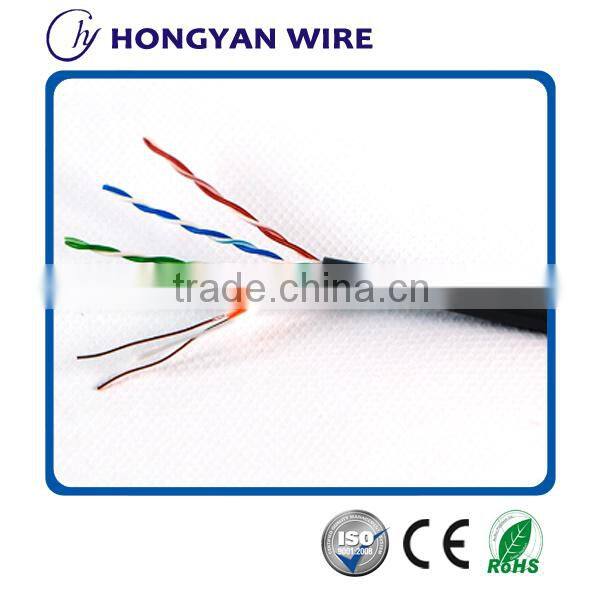

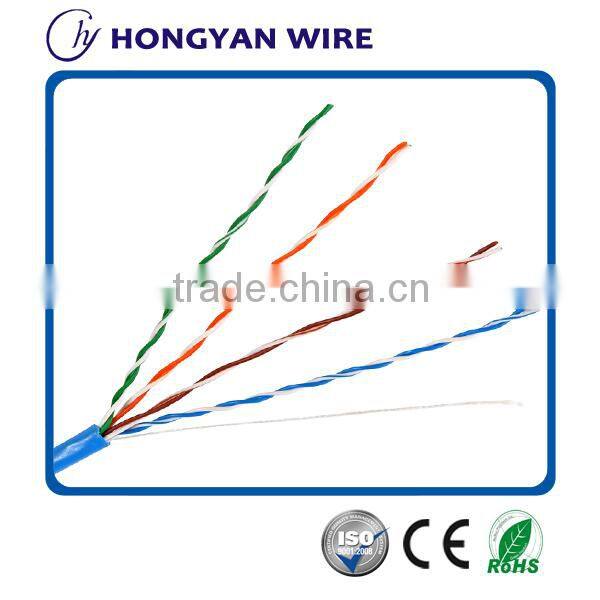

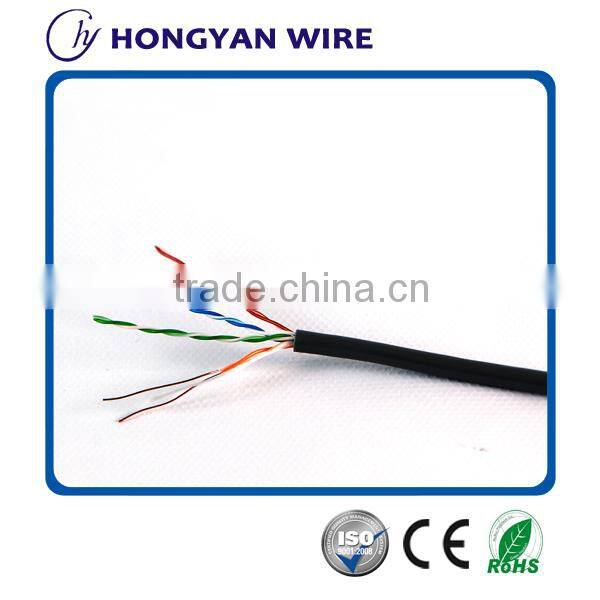

11. Products show
Factory information
pany profile
Shenzhen Hongyan Wire Industry Co., Ltd established in 1999 and is located in Maling Industrial Park, Longgang, Shenzhen, China. We are a professional designer and manufacturer in wires and cables with ISO9001, having two senior cable engineers, over twenty managing and well-trained workers.
Our main products: Cat5e UTP/FTP/SFTP Lan Cable, CAT6 UTP/FTP/SFTP Lan Cable, Electrical Cable, Power Cable, PVC Insulated Cable, XLPE Insulated Power Cable, Steel Tape Armor Cable, Control Cable, Telephone Cable, Coaxial Cable, Fire-resistant Cable and Flame-retardant Cable and so on
13.Pictures
14. Contacting Information
Shenzhen Hongyan Wire Industry Co.,Ltd
Address:Maling Industrial Park, Nanlian, Longgang ,
Shenzhen,China,Zip Code : 518116
Tel:86-755-89611579 , Fax:86-755-84801184 Mobile: +008613544278742
Contact: Jane Hsu
