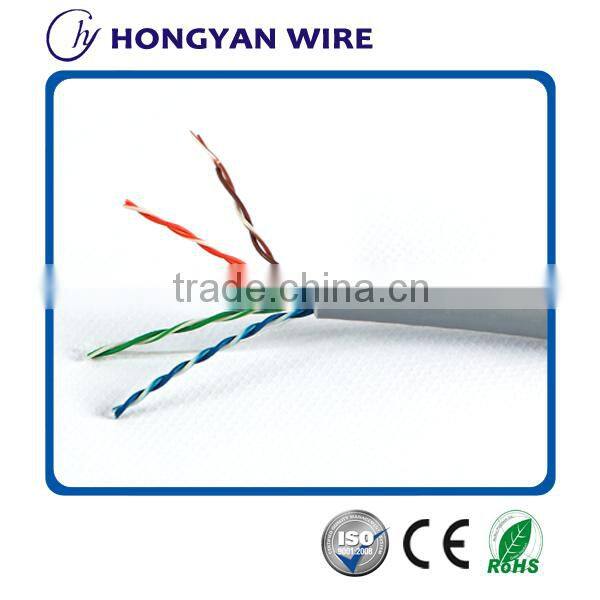

Copper 4 pairs x 24awg cat5e ethernet cable
Description
Category 5E Cable(Cat 5E) is a twisted pair cable for carrying signals. This type of cable is main used in structured cabling for computer networks such as Ethernet, supports a frequency range of up to 100MHz and is designed for transmission speeds of up to 1 gigabit per second(Gigabit Ethernet). It is also used to carry other signals such as telephony and video.
Standards Conductor
ISO/IEC11801 Class 1 solid plain copper
ANSI/EIA/TIA-568-B.2
Insulation Jacket
HDPE(High Density Polyethylene) PVC(Polyvinyl Chloride)
LSZH(Low Smoke Zero Halogen)
Core Identification Packing
- Blue, White/Blue; 305m/roll
- Orange, White/Orange 500m/roll
- Green, White/Green
- Brown, White/Brown
Specification
Conductor |
Thick. of Insulation mm |
Nominal O.D. mm |
Nominal Weight Kgs/305m box |
24AWG |
0.91±0.005 |
5.0±0.2 |
9.0 |
Electrical Characteristics
Max. Conductor Resistance: 9.2Ω/100m |
Min. Insulation Elongation: 300% |
||||||
Max. Resistance Unbalance: 2.4% |
Min. Propagation Velocity: 0.62C m/s |
||||||
Min. Conductor Elongation: 20% |
Characteristic Impedance: 100±15Ω |
||||||
Min. Insulation Resistance: 7000MΩ/km |
|
||||||
|
Frequency MHz |
Attenuation dB/100m |
NEXT dB |
PS-NEXT dB |
RL dB |
ELFEXT dB |
PS-ELFEXT dB |
|
1 |
2.0 |
65.3 |
62.3 |
20.0 |
64.0 |
61.0 |
|
4 |
4.1 |
56.3 |
53.3 |
23.0 |
52.0 |
49.0 |
|
8 |
5.8 |
51.8 |
48.8 |
24.5 |
45.9 |
42.9 |
|
10 |
6.5 |
50.3 |
47.3 |
25.0 |
44.0 |
41.0 |
|
16 |
8.2 |
47.2 |
44.4 |
25.0 |
39.9 |
36.9 |
|
20 |
9.3 |
45.8 |
42.8 |
25.0 |
38.0 |
35.0 |
|
25 |
10.4 |
44.3 |
41.3 |
24.3 |
35.8 |
33.0 |
|
31.25 |
11.7 |
42.9 |
39.9 |
23.6 |
34.1 |
31.1 |
|
62.50 |
17.0 |
38.4 |
35.4 |
21.5 |
28.1 |
25.1 |
|
100 |
22.0 |
35.3 |
32.3 |
20.1 |
24.0 |
21.0 |
|
