Multi-media Filter for Water Treatment

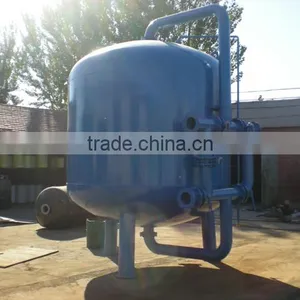

Multi-media Filter for Water Treatment thumbnail-1
Multi-media Filter for Water Treatment photo-1
US$ 3,000 - 85,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
EPO
Model Number:
YMGL
Contact Supplier Request Quote Chat Now
Qingdao Yimei Environment Project Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name EPO
Model Number YMGL

Specifications

1.This filter press has high dehydrated efficiency
2.Easy maintenance and cleaning
3.has since rectification function

Description:

Multi-media  filter,also called pressure type filter, is a main  part of water purifying system. The raw water is pressurized to flow through one or several kinds of filter media to reduce the turbidity and to remove the colloidal particles, micro-organism, suspended solid, organism, chlorine odor, and some heavy metal molecular, so as to achieve the purpose of purification which is one of the traditional water treatment methods.  The filter media include: anthracite, multi-porous ceramic, quartz sand, manganese sand etc., which can be applied according to actual situation. Multi-media filters are widely applied to water treatment processes such as:  water turbidity reduction for feeding water, pretreatment of reverse osmosis and ion exchange,  as well as sand removal of surface water and groundwater. If the turbidity of inlet water is less than 20NTU, the turbidity of outlet water can be below 3NTU.It also can be used as coarse filter equipment for lower requirement industrial water.  The materials of tank are: stainless steel, Carbon steel,A3 steel lined with rubber, FRP.

Main Parameter:

NO.

ITEM

Description

1

Housing material

carbon steel (with lining)/  Stainless steel/ FRP

2

Inner surface

rubber lining/epoxy resin for internal protection

3

Outside surface

both undercoat and finishing coat is painted twice

4

Media material

quartz/sand/active carbon/anthracite/gravel etc

5

Capacity

based on clients’ demand, have different size

6

Diameter

200mm-3000mm or other size

7

Function

pre-treatment for various water equipment/effectively remove chlorine, organic, colloid, etc

8

Back washing

automatic/manual

9

Control

automatic/manual

10

Connection

series connection parallel connection

11

Water Output(m3/h)

0.5-80

12

Speed (m/h)

8-12

13

Height of Filter layer(mm)

1100-1500

14

Dimension(mm)

1800X3200

11

Dia. of outlet &inlet

DN20,25,40,50,75,80,100 or others



Technical data:

Model

Diameter(mm)

Working

temperature (°C)

flow rate

(m3/h)

Filtering rate(m/h)

material

wall material(mm)

Sand dosage(t)

YMGLQ400

400

5~50

1.5

10

Q235

6

0.27

YMGL-600

600

5~50

3

10

Q235

6

0.61

YMGL-800

800

5~50

5

10

Q235

6

1.08

YMGL-1000

1000

5~50

7.5

10

Q235

6

1.69

YMGL-1200

1200

5~50

11

10

Q235

8

2.44

YMGL-1500

1500

5~50

18

10

Q235

8

3.81

YMGL-1600

1600

5~50

20

10

Q235

8

4.34

YMGL-1800

1800

5~50

25

10

Q235

8

5.49

YMGL-2000

2000

5~50

30

10

Q235

10

6.78

YMGL-2200

2200

5~50

38

10

Q235

10

8.20

YMGL-2400

2400

5~50

45

10

Q235

10

9.76

YMGL-2500

2500

5~50

50

10

Q235

10

10.59

Remark: this size can be changed according to client requirements

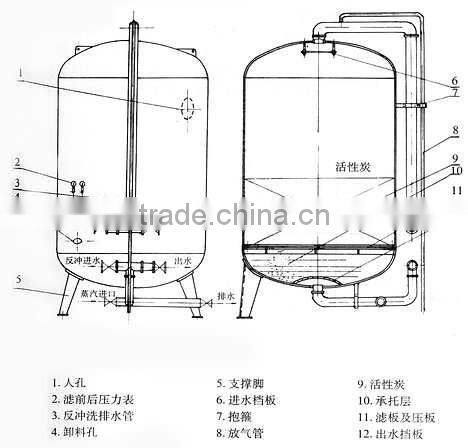

 Multi-media filter for water treatmentMulti-media filter for water treatmentMulti-media filter for water treatmentMulti-media filter for water treatment
