Specifications
1.waste water submersible mixer with CEpact structure
3.small volume weight
4.easy operation maintenance

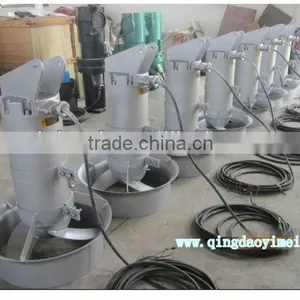

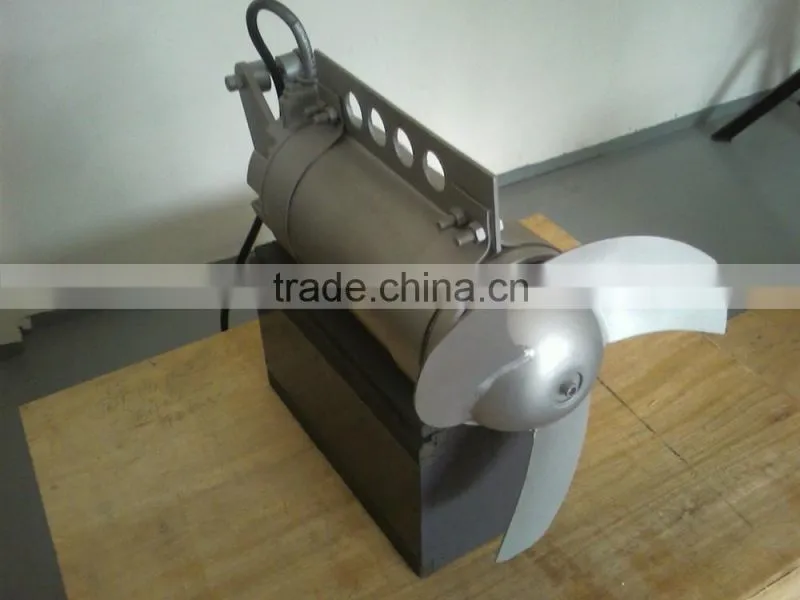

Submersible Mixer
Feature
- compact structure,small volume,light weight, easy operation maintenance,fast installation,long service life etc.
- the blade has the self-cleaning function, can prevent sundries wind,blocking
- can combine with aeration system to make energy reduced greatly, greatly increase oxygen volume, effective prevent sediment.
- motor winding is F grade insulation, protection grade is IP68.
- all fastener is stainless steel.
Specification Introduction:
QJB0.85/8-260/3-740s
QJB------ submersible mixer
260----- impeller dia
740------- impeller rotate speed(r/min)
0.85------ motor power(KW)S--------stainless steel
matching power range:0.85-10KW impeller dia range:260-615mm
Impeller rotate range:180-980r/min
Function and application condition:
This mixer suitable for all kind of water treatment process which need keep solid,liquid_ two phase or solid,liquid ,air three phase uniform mixing reaction area.
Normal continuous operation condition:
Maxi temperature no over 40°C medium PH 5-9
Medium density no over 1150KG/M^3
long term diving operation, diving water depth no over 20m
Attention items when chose models:
In order to guarantee mixer to get the best operation effect, pls supply the
Application purpose
tank type and dimension
Mixing media characteristic: contain Viscosity, density, temperature and solid content etc.
Specification:

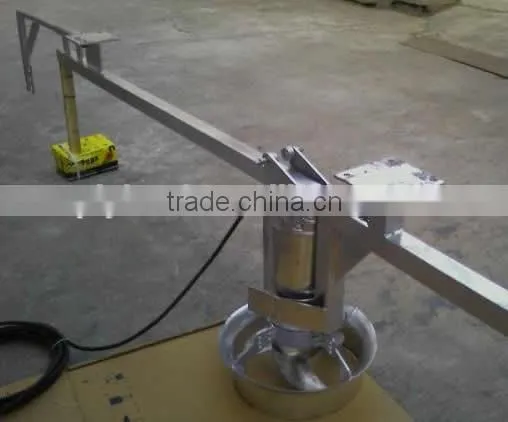

Installation system:
The special install system of mixer can be fast installation and dismantle submersible mixer no need discharge out the sewage in tank.
When tank depth H <4m, suggest adopt install system Ⅰ-1. The diving depth
Can make adjustment in vertical direction according to requirement, and it can rotating maxi angle plus or minus 60° around guide pad is in horizontal direction inner hoist system base,supporting bracket and below bracket and all concerned connect face all adopt expansion bolt fix, no need reserved hole.
Installation system Ⅱ using guide rope instead of guide pad, it has the feature of convenient installation, simple site installation etc, and effective improve too much depth tank condition, due to guide pad installation error and lead to can’t normal hoist condition.
