Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > LED Driving Power T-30A Triple 12v Switch Power Quality Guaranteed

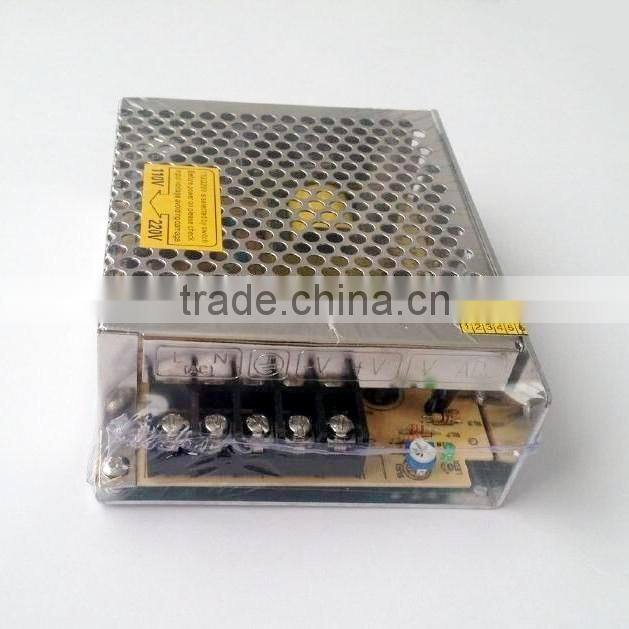

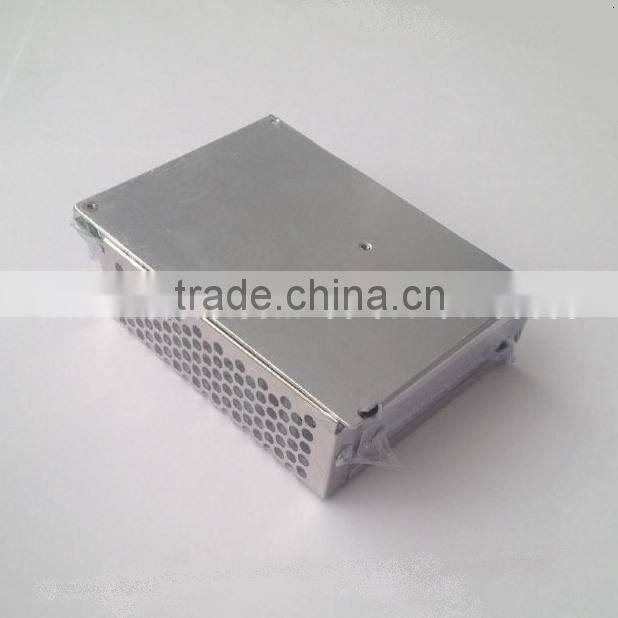

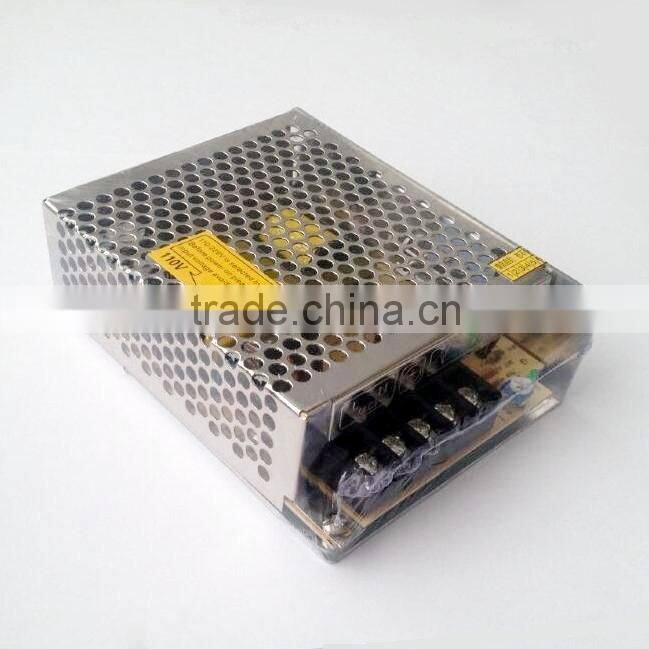

LED Driving Power T-30A Triple 12v Switch Power Quality Guaranteed

Name: LED Driving Power T-30A Triple 12v Switch Power Quality Guaranteed
Brand: Aotoro
SKU: 111808221
Availability: InStock

Yueqing Aotoro Electric Automation Co., Ltd.

LED Driving Power T-30A Triple 12v Switch Power Quality Guaranteed thumbnail-1

LED Driving Power T-30A Triple 12v Switch Power Quality Guaranteed thumbnail-2

LED Driving Power T-30A Triple 12v Switch Power Quality Guaranteed thumbnail-3

LED Driving Power T-30A Triple 12v Switch Power Quality Guaranteed photo-1

LED Driving Power T-30A Triple 12v Switch Power Quality Guaranteed photo-2

LED Driving Power T-30A Triple 12v Switch Power Quality Guaranteed photo-3

US$ 6.8 - 12.4 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Aotoro

Model Number:

T-30A

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo shanghai shenzhen guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Aotoro

Model Number T-30A

Output Power 1 - 50W

Output Type Triple

Input Voltage Other, 85-132VAC/170-264VAC

Output Voltage 5V12V-12V

Output Frequency 10500HZ

Output Current 3A,1A,0.5A

Established in 1997, Yueqing Aotoro Electric Automation Co.,Ltd is a professional in the electronic sensors research and development, one of the most professional sensor manufactures China.Now, we have won high and good reputation from customers both at home and abroad with excellent products and competitive price. We special manufacture in photoelectric switch,proximity switch,solid state relay,switch power supply,magnetic relay,timer relay,counter, touch sensor, all of our product have already approved CE certificate. We always believe in that the enterprise could keep leading position in the market as long as we are seeking our object.With this spirit,we always try best to satisfactory our customers to enlarge markets.

MODEL SPECIFICATION	T-30A			T-30B
MODEL SPECIFICATION	CH1	CH2	CH3	CH1	CH2	CH3
OUTPUT DC VOLTAGE	5V	12V	-5V	5V	12V	-12V
RATED CURRENT	3A	1A	0.5A	3A	1A	0.5A
OUTPUT CURRENT	0.5-3A	0.1-1A	0.1-0.5A	0.5-3A	0.1-1A	0.1-0.5A
RIPPLE & NOISE	50mVp-p	100mVp-p	50mVp-p	50mVp-p	100mVp-p	100mVp-p
LINE REGULATION	±0.5%	±1%	±1%	±0.5%	±1%	±1%
LOAD REGULATION	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
RATED POWER	30W			33W
EFFICIENCY	70%			72%
VOLTAGE ADJ. RANGE	CH1+10,-5%			CH1+10,-5%
INPUT VOLTAGE RANGE	85-132VAC/170-264VAC selected by switch 240370VDC
INPUT AC CURRENT	0.8A/115V 0.45A/230V
INRUSH CURRENT	COLD START 18A/115V 36A/230V
LEAKAGE CURRENT	<0.75mA/240VAC
OVER LOAD PROTECTION	105 ~ 150% rated output power, fold back current limiting, auto-recovery
TEMP. COEFFICIENT	±0.03%(050)
SETUP, RISE, HOLD TIME	200ms,100ms,30ms
VIBRATION	10500Hz,2G 10min./1 cycle , period for 60min, each along X, Y, Z axes
WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
WORKING TEMP. HUMIDITY	-10+60,20%90%RH
STORAGE TEMP., HUMIDITY	-20+85,10%95%RH
DIMENSION	1299838mm
WEIGHT	0.4Kgs
SAFETY STANDARDS	UL1012
EMC	FCC PART15 J CONDUCTION CLASS A

Aotoro Technology support:

Index: passed the CCC, CE certification, all the technical indexes reach achieve national standard (GB/T14048.10-1999),

Technology: adopting new special IC, adopt the most complete technical design, with various protection circuit, anti-jamming measures, more stable performance.

by SMD production technology, product reliability and consistency.

Management: passed ISO9001 certification, all processes of production links is strict accordance with the standardization documents, never let any nonconforming into the market.

Appearance: by international standard method to design, structure more reasonable and more beautiful appearance.

Service: pre-sale, sale and after-sale tracking service is comprehensive, The first-class technical team, providing technical support, complete and spotless quality guarantee.
