Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Triple Switch Power T-100B Power Supply Led Quality Guaranteed

Triple Switch Power T-100B Power Supply Led Quality Guaranteed

Name: Triple Switch Power T-100B Power Supply Led Quality Guaranteed
Brand: Aotoro
SKU: 111808263
Availability: InStock

Triple Switch Power T-100B Power Supply Led Quality Guaranteed thumbnail-1

Triple Switch Power T-100B Power Supply Led Quality Guaranteed thumbnail-2

Triple Switch Power T-100B Power Supply Led Quality Guaranteed thumbnail-3

Triple Switch Power T-100B Power Supply Led Quality Guaranteed photo-1

Triple Switch Power T-100B Power Supply Led Quality Guaranteed photo-2

Triple Switch Power T-100B Power Supply Led Quality Guaranteed photo-3

US$ 15 - 27.2 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Aotoro

Model Number:

T-100B

Contact Supplier Request Quote Chat Now

Yueqing Aotoro Electric Automation Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo shanghai shenzhen guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Aotoro

Model Number T-100B

Output Power 51 - 100W

Output Type Triple

Input Voltage Other, 85-132VAC,170-264VAC

Output Voltage 5V 15V -15V

Output Frequency 10500HZ

Output Current 6A 2A 2A

Established in 1997, Yueqing Aotoro Electric Automation Co.,Ltd is a professional in the electronic sensors research and development, one of the most professional sensor manufactures China.Now, we have won high and good reputation from customers both at home and abroad with excellent products and competitive price. We special manufacture in photoelectric switch,proximity switch,solid state relay,switch power supply,magnetic relay,timer relay,counter, touch sensor, all of our product have already approved CE certificate. We always believe in that the enterprise could keep leading position in the market as long as we are seeking our object.With this spirit,we always try best to satisfactory our customers to enlarge markets.

MODEL SPECIFICATION	T-100A			T-100B
	CH1	CH2	CH3	CH1	CH2	CH3
OUTPUT DC VOLTAGE	5V	12V	-5V	5V	12V	24V
RATED CURRENT	10A	2.5A	4A	6A	2A	2A
OUTPUT CURRENT	2-12A	0.1-2.5A	0.2-4A	0.5-6A	0.1-2A	0.1-2A
RIPPLE & NOISE	100mVp-p	120mVp-p	100mVp-p	100mVp-p	120mVp-p	150mVp-p
LINE REGULATION	±0.5%	±1%	±1%	±0.5%	±1%	±1%
LOAD REGULATION	±1%	±5%	±5%	±1%	±5%	±5%
RATED POWER	100W			102W
EFFICIENCY	77%			77%
VOLTAGE ADJ. RANGE	CH1:+10,-5%			CH1:+10,-5%
INPUT VOLTAGE RANGE	85-132VAC/170-264VAC selected by switch 240-370VDC
INPUT AC CURRENT	2.5A/115V 1.25A/230V
INRUSH CURRENT	COLD START 18A/115V 36A/230V
LEAKAGE CURRENT	<2mA/240VAC
OVER LOAD PROTECTION	105 ~ 150% rated output power, cut off output power, auto-recovery
TEMP. COEFFICIENT	±0.03%(050) ON+5V OUTPUT
SETUP, RISE, HOLD TIME	800ms,50ms,16ms
VIBRATION	10500Hz,2G 10min./1 cycle , period for 60min, each along X, Y, Z axes
WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
WORKING TEMP. HUMIDITY	-10+60,20%90%RH
STORAGE TEMP., HUMIDITY	-20+85,10%95%RH
DIMENSION	19911050mm
WEIGHT	1.15Kg
SAFETY STANDARDS	UL1012
EMC	FCC PART15 J CONDUCTION CLASS A

Aotoro Technology support:

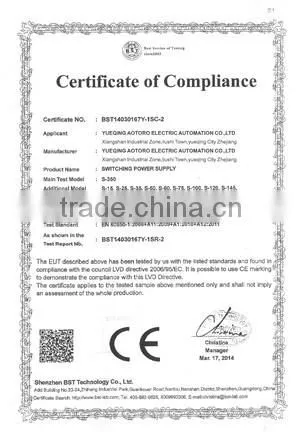

Index: passed the CCC, CE certification, all the technical indexes reach achieve national standard (GB/T14048.10-1999),

Technology: adopting new special IC, adopt the most complete technical design, with various protection circuit, anti-jamming measures, more stable performance.

by SMD production technology, product reliability and consistency.

Management: passed ISO9001 certification, all processes of production links is strict accordance with the standardization documents, never let any nonconforming into the market.

Appearance: by international standard method to design, structure more reasonable and more beautiful appearance.

Service: pre-sale, sale and after-sale tracking service is comprehensive, The first-class technical team, providing technical support, complete and spotless quality guarantee.

Payment

1. Full payment must be made within 15 days of placing your order.

2. The buyer is responsible for any tax and/or duty charged by their country.

Shipping and handing

FEDEX is our preferred shipping method. We offer ship goods with FEDEX EMS TNT DHL UPS.

Insurance

Buyers are responsible for any insurance they feel is required..

RefundExchange Only

1.If you are not satisfied with your purchase, you can exchange the item. The buyer is responsible for all further shipping fees.2. The buyer must contact us within 3 days of delivery if they wish to exchange defective or incorrectly shipped items.

Feedback

Please contact us before leaving any negative or neutral feedback. We will work with you to solve any problems.

Service:

pre-sale, sale and after-sale tracking service is comprehensive, The first-class technical team, providing technical support, complete and spotless quality guaranteed.
