mechanical bar screen

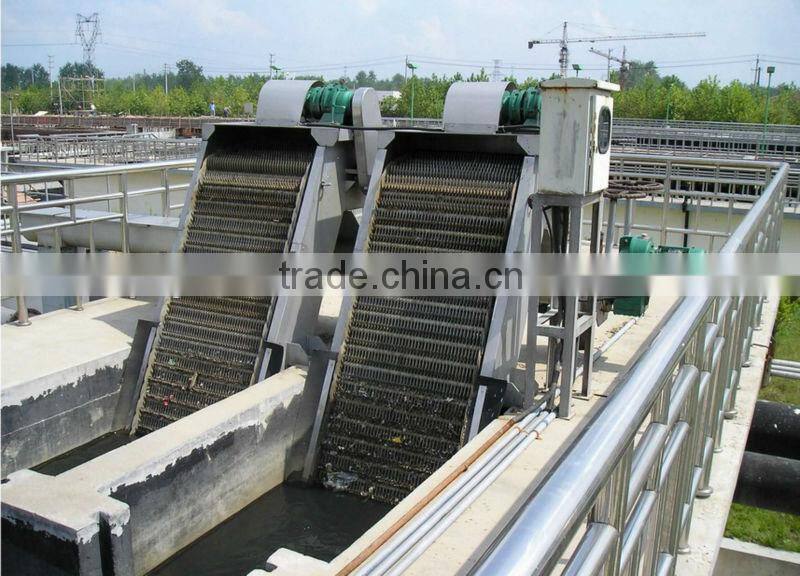

YMGS serial rotary mechanical bar screen (grilling spotter) is a kind of solid-liquid separation device, which can continuous automatic eliminate all kinds of figure sundries in the fluid, which can as a special equipment widely used in urban sewage treatment,
water supply industry,, electric plant water inlet, at the same time, it can be as a essential special equipment in the production processing of textile, food processing,, paper making, leather etc industry, it is the most advanced Solid-liquid separation equipment in china. Rotary bar screen machine also called bar grilling spotter.

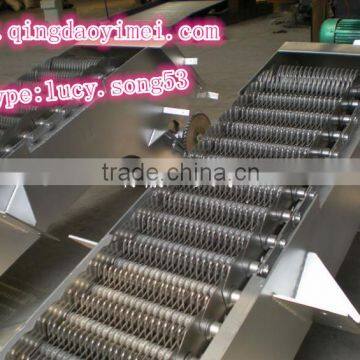

Rake tooth chain similar to bar screen by water flow direction, the rake tooth clearance which assembled in rake tooth chain shaft can be chose according to usage condition. Which can guarantee the water flow pass by smoothly after the rake tooth separate the suspended solid in the fluid. the whole process can be continuous and intermittent.

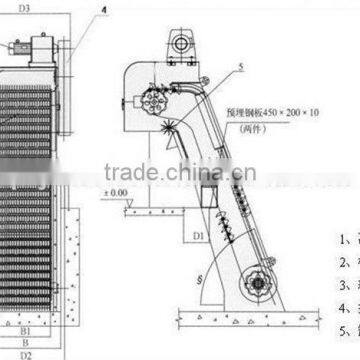

Technical data
Model |
YMHG-300 |
YMHG-400 |
YMHG-500 |
YMHG-600 |
YMHG-700 |
YMHG-800 |
YMHG-900 |
YMHG-1100 |
YMHG-1200 |
YMHG-1250 |
YMHG-1500 |
Install angle( a) |
60°~80° |
||||||||||
|
Power (kw) |
0.37~0.75 |
0.55~1.1 |
0.75~1.5 |
1.1~2.2 |
1.5~3 |
||||||
|
Screen Speed ( m/min) |
About 2 |
||||||||||
|
Width w0(mm) |
300 |
400 |
500 |
600 |
700 |
800 |
900 |
1100 |
1200 |
1250 |
1500 |
Height H0 (mm) |
H+H1+1350 |
||||||||||
|
Total width W1 (mm) |
650 |
750 |
850 |
950 |
1050 |
1150 |
1250 |
1450 |
1550 |
1600 |
1850 |
|
Ditch width U (mm) |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
1200 |
1300 |
1350 |
1600 |
|
Ditch depth h (mm) |
decided by user |
||||||||||
|
Diversion trench Length L (mm) |
1500+Hxctga |
||||||||||
Medium maxi temperature(°C) |
80° |
||||||||||
|
foot margin to discharging top mouth height H2 (mm) |
400~1000 |
||||||||||
