Help CenterLow Rpm Powerful Home Use 5kw Windmill
Related Products
5KW wind turbine technical parameter | |
Model |
FD6.0-5.0/10 |
Rated power(W) |
5000 |
Rated voltage (V) |
DC 240 |
Start-up wind speed (m/s) |
3 |
Environment temperature |
from -25to +45 |
Blade material |
fiber glass |
Generator style |
3-phase AC PMG |
Suggested battery capacity |
12v150AH20PCS |
Rotor diameter (m) |
6.0 |
Working wind speed (m/s) |
3~25 |
Rated RPM (r/min) |
260 |
Shell material |
Rrecision steel |
Blade quantity(pcs) |
3 |
Matched inverter type |
Sine wave |
Certificate |
CE,RoHS,ISO9001:2000 |
Features:
1.Long lifespan:25 years
2.Start-up wind low wind speed
3.High efficiency and low noise
4.Direct driven permanent magnet generator,without the gear box.
5.Aotomatically adjust the facing with direction
6.Anticorrosion
7.Brake system:Mechanical Yawing and Electromagnetic Brake
8.Range of wind power needed: 3-20m/s
9.Controller:on grid and off grid
10.Inverter: Pure sine wave

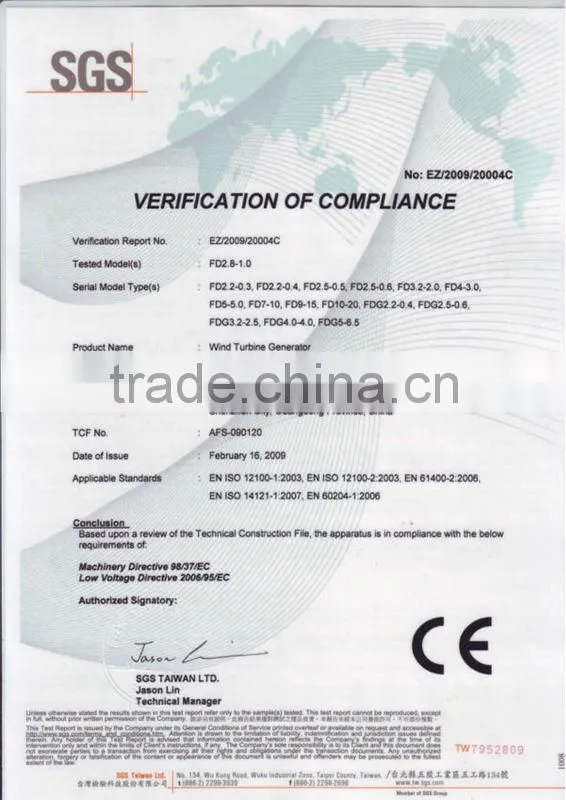

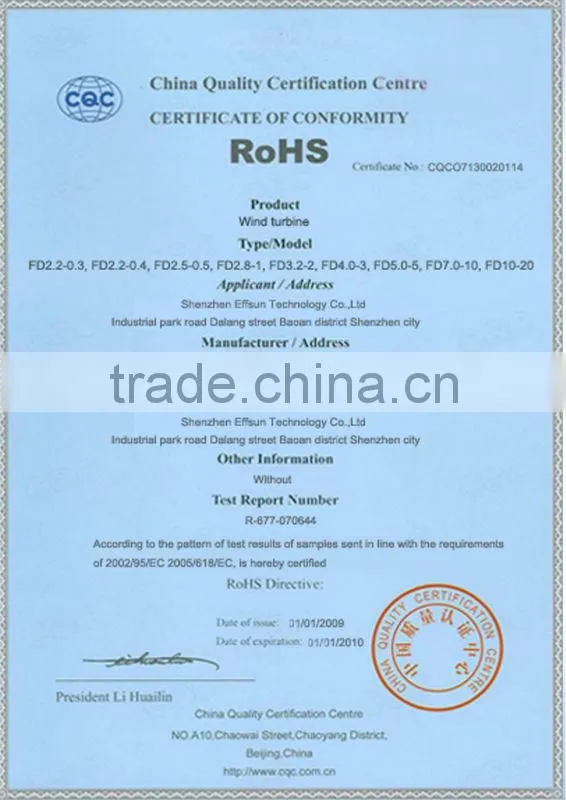

Certificates:
