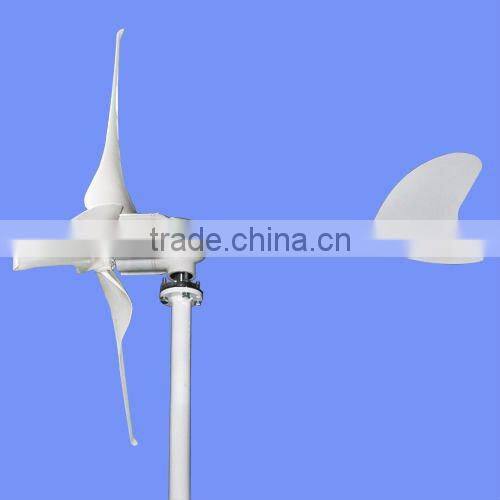

3000W Horizonal Axis Windmill

3000W Horizonal Axis Windmill photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Effsun
Model Number:
FD4.2-3.0
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Effsun
Model Number FD4.2-3.0
Type Wind Power Generator

 3000W wind horizonal axis permanent magnet generator



3000W Wind Turbine generator Main technical parameter

Model

FD4.2-3.0/10

Rated power

3000W

Generator rated voltage

DC 240 V

Rotor diameter

4.0m

Start-up wind speed

3 m/s

Rated wind speed

10 m/s

Security wind speed

40 m/s

Working wind speed

4~25

Speed regulation method

Mechanical yawing+ Electromagnetic Brake

Environment temperature

from -30 to 65

Rated RPM

300 r/m

Shell material

Precision Steel

Blade material&quantity(pcs)

Fiberglass-Reinforced Plastics*3

Matched inverter type

Sine wave

Suggested batteries capacity

12V100Ah* 20pcs

Heavy wind protection

Dump load+Eletromagnetic brake

Generator style

Three-phase AC PM

Certificate

CE,RoHS,ISO9001

Characteristics

Wind turbine has small size, and simple design. It fully uses lift and drag force, easily products rated power at low wind speed. 3 Phase Permanent Magnet AC Generator, direct driven, no gearbox, and not need windward.

It has perfect performance. With low rpm of generator; controller can be PWM, on grid; invertor can be pure sine wave with automatic off-grid interface or directlt on grid invertor.

3000W horizonal axis windmill3000W horizonal axis windmill3000W horizonal axis windmill
