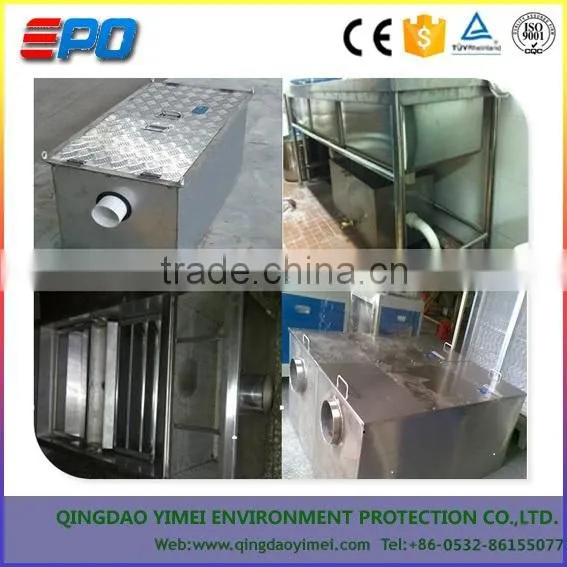

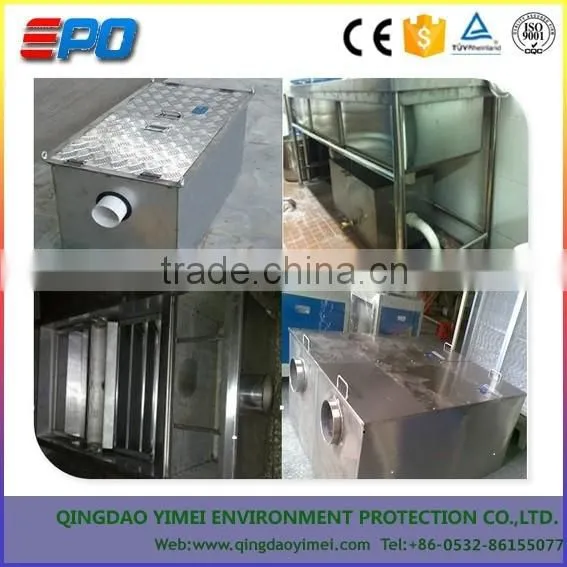

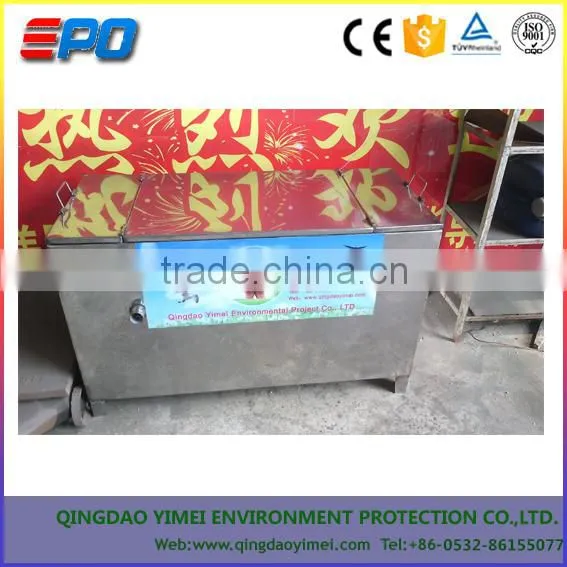

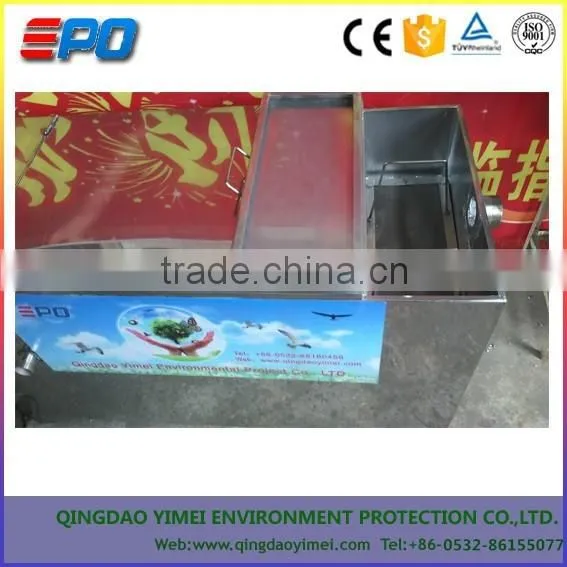

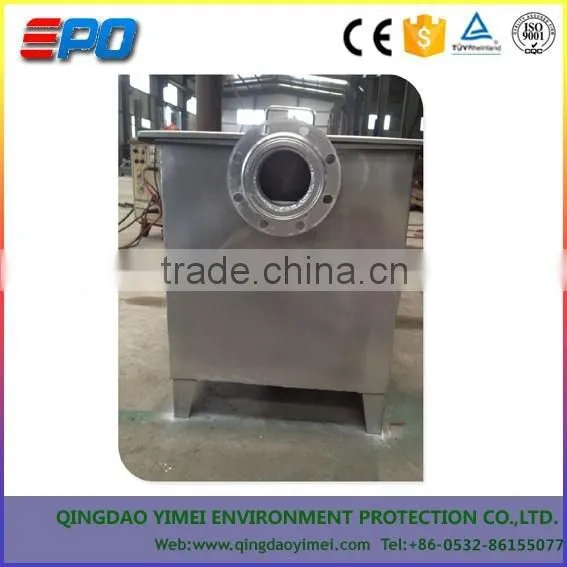

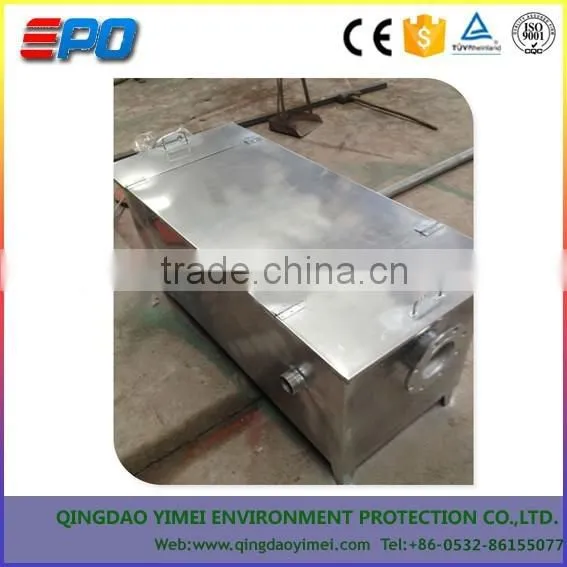

YM grease fat water separators
Feature:
1.High technical content: due to the shallow pool precipitation theory and the principle of
Different flow seperation and turbulent boundary layer, it improves the seperation surface of unit pool capacity, enhances the effectiveness of oil water seperation, shortens retention time of waste water, greatly reduces the equipment volume and save floor area as well as cost.
2,No need for electricity & power and save cost: just using liquor level formed when sewage passes device to realize the purpose of water – oil separation. This product has specific characteristic on process theory and structure design, so it works reliably with small volume and long life, without adding any reagent and drug and no secondary pollution.

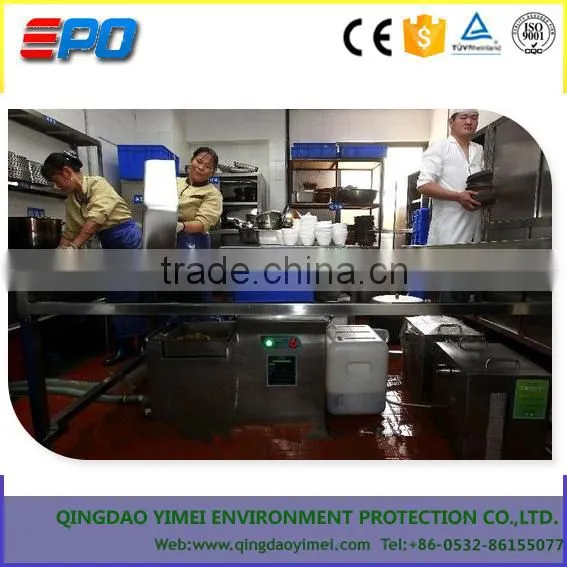

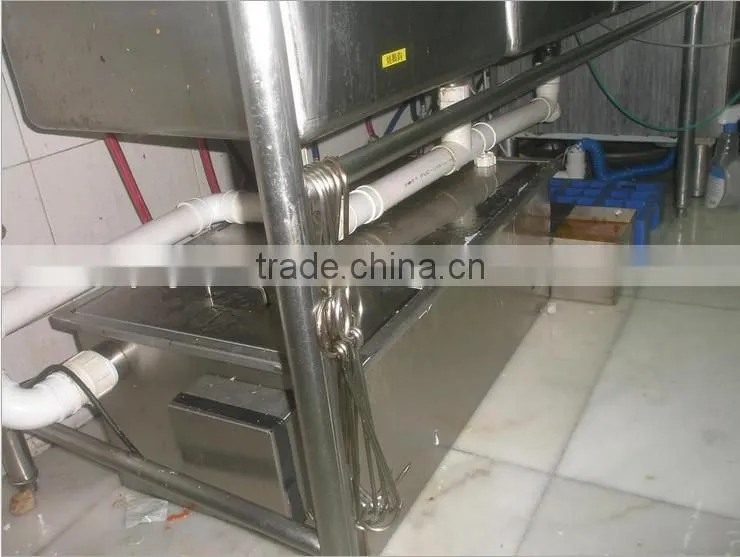

3,without power can be installed easily: as long as pluging in inlet tube and outlet pipe. It can be installed under kitchen sink, washing-up basin and cooking bench; without special person for operating and maintaining, just discharge oil at fixed period.
4, without power applies to all kinds of oil, and is not restricted by oil concentration” it can be widely used in wastewater treatment engineering which contains natural oil, oil product, tar oil & distillates, animal oil and plant oil and wool oil, esp. suitable for wastewater treatment of catering industry.
product use

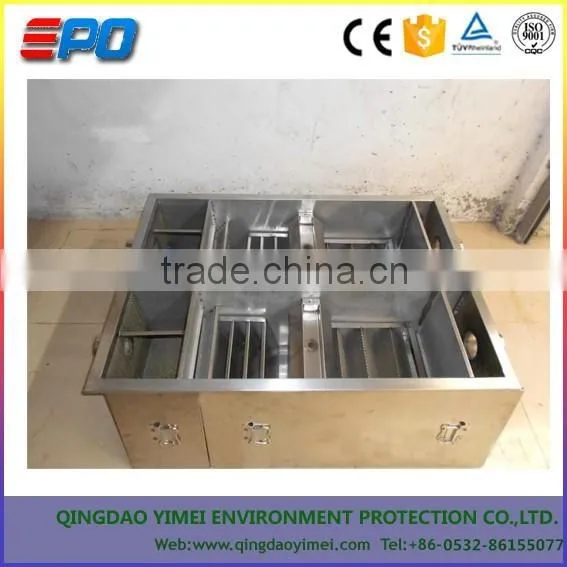

Sewage treatment process: oily sewage → sludge removal box (slagging) → oil removal areaof slow flow → oil removal area of cantboard (oil sump → oil extraction) → drainage to reach standard
Model |
Maximum capacity |
Appearance specification |
(Φmm) Inlet/outlet (Φmm) |
YM-2 |
2t/h |
1000X300X400 |
75/75 |
YM-3 |
3t/h |
1220X400X420 |
110/110 |
YM-4 |
4t/h |
1220X500X450 |
110/110 |
YML-5 |
5t/h |
1300X500X550 |
110/110 |
YM-6 |
6t/h |
1500X550X600 |
110/110 |
YM-8 |
8t/h |
1800X700X700 |
160/160 |
YM-10 |
10t/h |
2000X800X800 |
160/160 |
YM-15 |
15t/h |
2200X900X1000 |
200/200 |
YM-20 |
20t/h |
2440X1000X1100 |
200/200 |

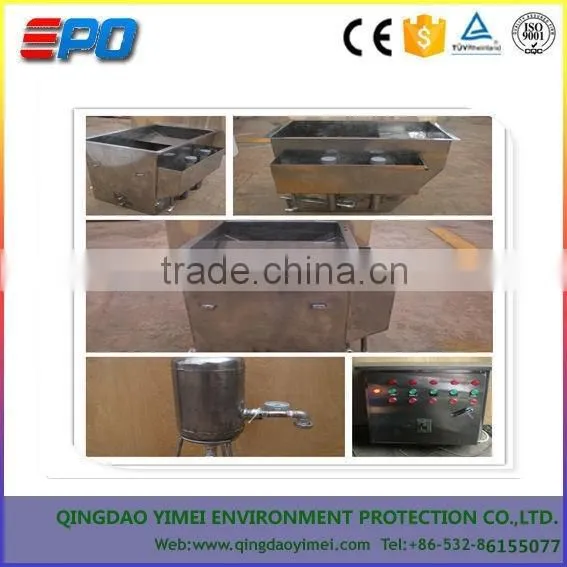

Industrial oil - water seperator
Product introduction: Industrial oil – water separator can be widely used in factory workshop, garage,service station, heavy oil storing area, can also be used for sewage treatment in restaurants, cafes, unit, authority and the living community. Because of low operation cost, convenient maintenance which not only protects environment but also has good social benefits, it is ideal device for wastewater treatment of industrial and living oily sewage.
Product characteristics:
Industrial oil – water separator is compacted without taking area, design with science, filtering rate is 95%, convenient installation & maintenance,,simple operation and low operating cost.
