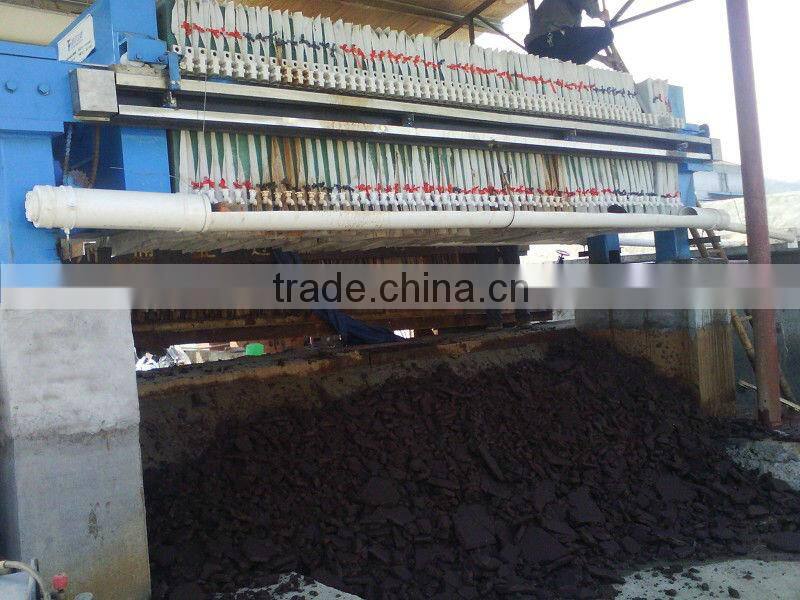

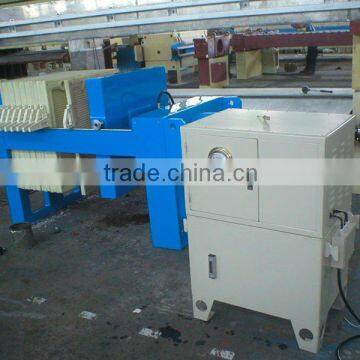

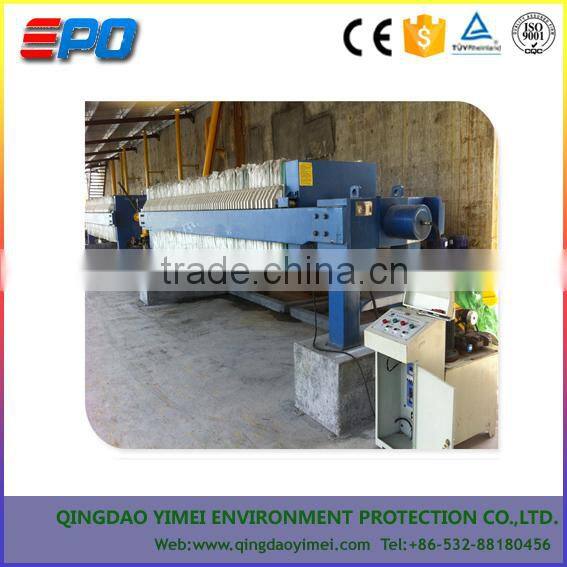

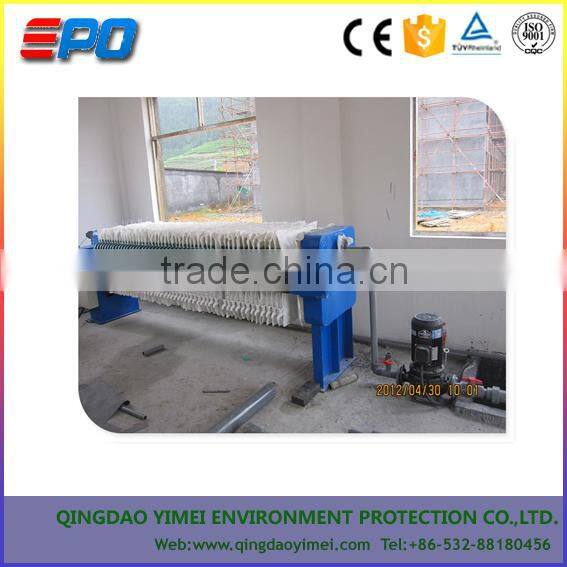

Small manual plate and frame filter press
Manual Hydraulic Mechanical Pressure Sustaining filter press Design and Operation Instructions
Filter plate size: 630mmX630mm chamber filter plate
Filter Plate thickness: up to Filter Press Design data and will be various according to different materials which to be filtered
Filter Plate Quantity: up to Filter Press Design Data or various according to special filter press design requirements
Filter cake thickness: 30mm(standard designed model)
Filtering temperature endurable :50-90 centi degree(standard designed models)
Filtering pressure available: 0.6-1.0Mpa (standard designed models)
Filter Press Closing Method : manual hydraulic pump closing
Filter Press Pressure Sustaining Method: Mechnical Pressure Sustaining(Screw Pressure Sustaining)
Manual Hydraulic Mechanial Pressure Sustaining Filter Press Design and Operation Specifications List
Filter Press Model |
Filtering Area (m2) |
Filter Plate (pcs) |
Chamber Volume (L) |
External Size |
Weight (kg) |
|||
X |
A M |
J8/630-U |
K B |
8 |
13 |
120 |
4040X880X1015 |
1370 |
X |
A M |
J10/630-U |
K B |
10 |
17 |
160 |
4280880X1015 |
1476 |
X |
A M |
J12/630-U |
K B |
12 |
21 |
200 |
4520880X1015 |
1582 |
|
A M |
J15/630-U |
K B |
15 |
25 |
240 |
4760880X1015 |
1688 |
|
A M |
J18/630-U |
K B |
18 |
29 |
290 |
5000880X1015 |
1794 |
|
A M |
J20/630-U |
K B |
20 |
33 |
330 |
5240880X1015 |
1900 |
Any modification of this filter press specification list will be informed separately.
The upper mentioned specifications only for your reference
The upper mentioned specifications are for manual hydraulic closing filter press only.
The upper mentioned specifications are based on 30mm filter press cake thickness.
If marked with *,there will be middle support.
More detailed information for operation and Maintenance,please refer to " Manual Filter Press Design and Operation Manual"
Design and Operation Characteristics for Manual Hydraulic Mechnical Pressure Sustaining Filter Press:
1. Adopt patent mould pressing filter plate producing technology, high intensity, high temperature endurable, light weight, anti-corrosion, alkali and acid resistance, nontoxic and odorless
2. High strength and special mould design for PP filter plates, less moisture content and easy to be washed and maintenance.
3. The filter press frame is made from solid steel, which can support the total weight of filter press plates and the pressure caused during filtering
4. Reasonable structure design, economic model for Mid size capacity solid-liquid separation
5. Mid-size filter press,less economic cost but perfect filtering performance during filtration
6. manual hydraulic closing ,easy operation and daily maintenance, less repair cost
