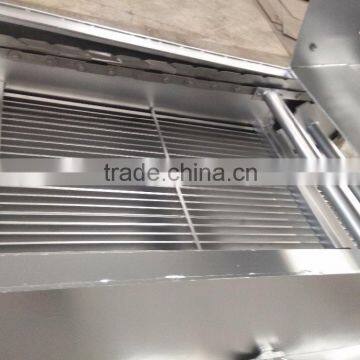

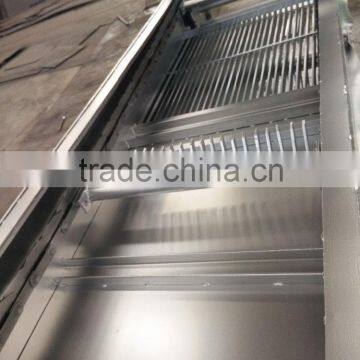

Help CenterRotary Coarse Grid Trash Screen
Related Products
-
Automatic Wastewater Treatment Mechanical Fine Bar Screens MachineUS$ 2,000 - 9,950MOQ: 1 Sheet -
Motorized Coarse Flat Rake Trash Bar ScreenUS$ 3,900 - 4,150MOQ: 1 Set
-
Rotary Type Waste Water Pretreatment Thin Screen MachineUS$ 5,320 - 5,520MOQ: 1 Set
-
Sewage Treatment Equipment MECHINAL FINE BAR SCREENUS$ 1,500 - 8,000MOQ: 1 Set
-
Automatic Wastewater Treatment Mechanical Fine Bar Screens MachineUS$ 1,500 - 8,000MOQ: 1 Set
Working principle:
YMGS serial rotary grilling mainly composed of driven device,rake tooth facility ,Flush facility etc, which is assembled to be a group of rotary grille chain by a unique rake tooth, driven by Motor reducer,the rake tooth chain going Rotary motion as reverse flow.
When the rake tooth chain operate to upside of equipment,duing to the guiding of Geneva wheel and curve,which produce the relative self-cleaning motion between each group rake tooth,most of the solid drop down by gravity. Another parts clean up the sundries sticking in the rake tooth by sweeper ‘s Reverse movement.
Rake tooth chain similar to grilling by water flow direction,the rake tooth clearance which assembled in rake tooth chain shaft can be chose according to usage condition. Which can guarantee the water flow pass by smoothly after the rake tooth separate the suspended solid in the fluid.the whole process can be continuous and intermittent.
Scope of application:
Water supply and drainage engineering pump stations, water inlet fine grille, remove fine grille between the grid slag;
Textile, printing, dyeing, slaughtering, leather papermaking industrial wastewater solid-liquid separation;
Sugar, wine, food processing of solid-liquid separation
Model |
YMHG-300 |
YMHG-400 |
YMHG-500 |
YMHG-600 |
YMHG-700 |
YMHG-800 |
YMHG-900 |
YMHG-1100 |
YMHG-1200 |
YMHG-1250 |
YMHG-1500 |
Install angle( a) |
60°~80° |
||||||||||
|
Power (kw) |
0.37~0.75 |
0.55~1.1 |
0.75~1.5 |
1.1~2.2 |
1.5~3 |
||||||
|
Screen Speed ( m/min) |
About 2 |
||||||||||
|
Width w0(mm) |
300 |
400 |
500 |
600 |
700 |
800 |
900 |
1100 |
1200 |
1250 |
1500 |
Height H0 (mm) |
H+H1+1350 |
||||||||||
|
Total width W1 (mm) |
650 |
750 |
850 |
950 |
1050 |
1150 |
1250 |
1450 |
1550 |
1600 |
1850 |
|
Ditch width U (mm) |
400 |
500 |
600 |
700 |
800 |
900 |
1000 |
1200 |
1300 |
1350 |
1600 |
|
Ditch depth h (mm) |
decided by user |
||||||||||
|
Diversion trench Length L (mm) |
1500+Hxctga |
||||||||||
Medium maxi temperature(°C) |
<80° |
||||||||||
|
foot margin to discharging top mouth height H2 (mm) |
400~1000 |
||||||||||
