Specifications
OPGW Preforemd Vibration Damper1.more years experience
2.Simple structure
3.Good antivibration effort
4.hot selling

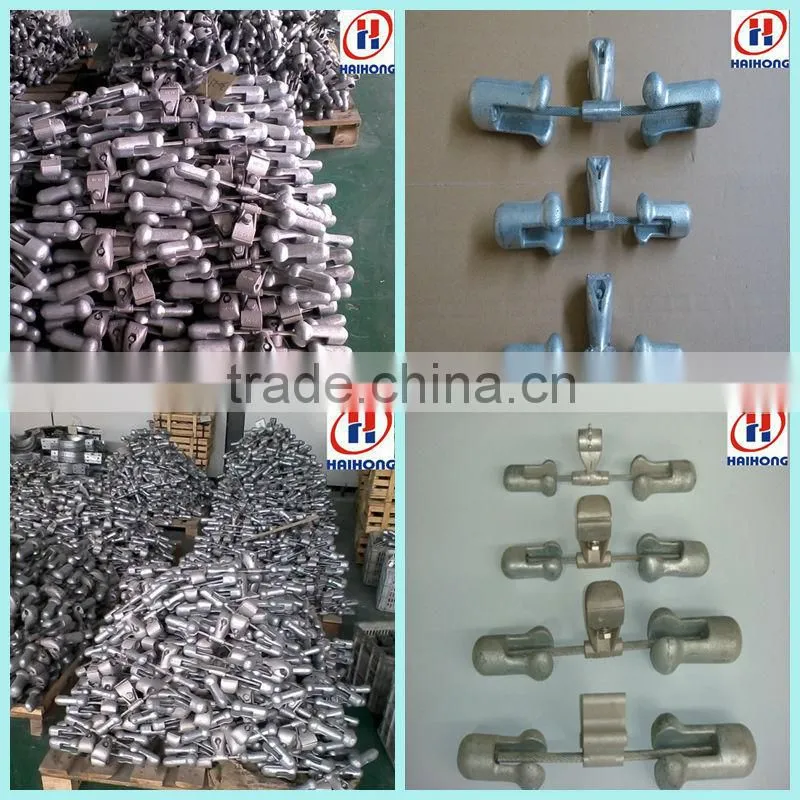

Wholesale OPGW Preforemd Vibration Damper
Function of OPGW Preforemd Vibration Damper
SH4D Antivibration hammer is mainly used on ADSSS, OPGW and electric conductors to eliminate or reduce the vibration of fiber cable and conductor caused by wind, so as to prevent the fittings and
cable from damage.

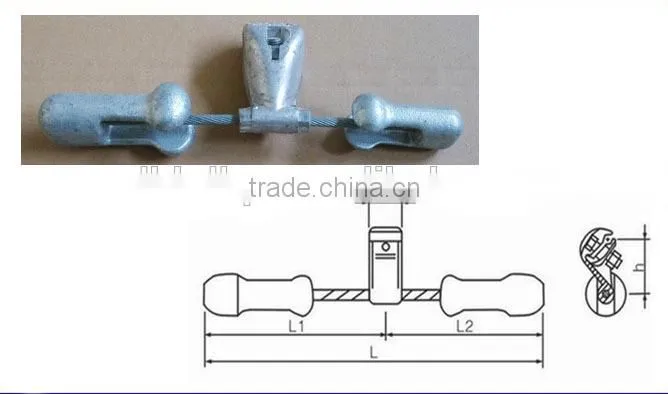

Components of OPGW Preforemd Vibration Damper
Hammerhead (one big and one small), strand wire, clamp part etc. The streamline shape can control
the corona effectively.
absorber Application Guide:
- Vibration Damper can’t be directly installed on the OPGW cables, installed with Helical Rods.
- Calculate the installation distance, if it is within the Helical Rods, then installed as usual (Installed on Helical Rods directly). If the installation position of Vibration Damper is outside of the Helical Rods, you should install Helical Rods. The distance between the end of the Vibration Damper and Protection Rods must be more than 70mm.
- The big Damper Weight of low frequency is close to pole or tower.
- Confirm the quantity per span length according to cable strength, span length and topography.
protective fittings absorber |
Helical Rods |
||||
Specification Model |
Cable Dia. (mm) |
Weight (Kg) |
Specification Model |
Cable Dia. (mm) |
Color Code |
TFY 1010 10 |
9.5-10.1 |
1.0 |
FYH 1010 10 |
9.5-10.1 |
orange |
TFY 1080 10 |
10.2-10.8 |
1.0 |
FYH 1080 10 |
10.2-10.8 |
yellow |
TFY 1150 10 |
10.9-11.5 |
1.0 |
FYH 1150 10 |
10.9-11.5 |
green |
TFY 1220 10 |
11.6-12.2 |
1.0 |
FYH 1220 10 |
11.6-12.2 |
cyan |
TFY 1290 10 |
12.3-12.9 |
1.0 |
FYH 1290 10 |
12.3-12.9 |
blue |
TFY 1360 10 |
13.0-13.6 |
1.0 |
FYH 1360 10 |
13.0-13.6 |
purple |
TFY 1430 10 |
13.7-14.3 |
1.0 |
FYH 1430 10 |
13.7-14.3 |
black |
TFY 1500 10 |
14.4-15.0 |
1.0 |
FYH 1500 10 |
14.4-15.0 |
red |
TFY 1570 10 |
15.1-15.7 |
1.0 |
FYH 1570 10 |
15.1-15.7 |
orange |
TFY 1640 10 |
15.8-16.4 |
1.0 |
FYH 1640 10 |
15.8-16.4 |
yellow |
TFY 1710 10 |
16.5-17.1 |
1.0 |
FYH 1710 10 |
16.5-17.1 |
green |
