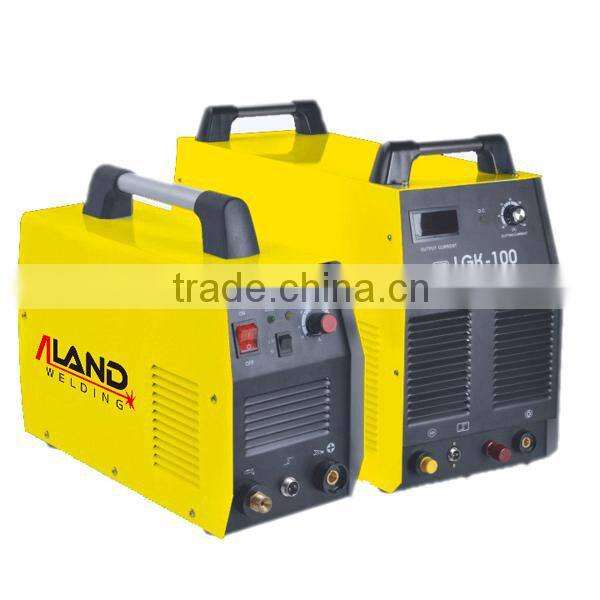

LGK-30 40 60 100 120 Inverter DC Plasma Cutter

Name: LGK-30 40 60 100 120 Inverter DC Plasma Cutter
Brand: ALAND
SKU: 111735341
Availability: InStock

US$ 50 - 100 MOQ: 20 Sets

Key Specifications

Condition:

New

Place of Origin:

Beijing, China

Brand Name:

ALAND

Beijing Aland Welding Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI/SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Beijing, China

Brand Name ALAND

Model Number LGK-30/40/60/100/120

Input Voltage 230/400V

Power(W) 3.3/4.8/7.9/KVA14

Dimensions 450*230*410mm

Usage Plasma Cutting

Certification CE

Product Description

LGK-30/40/60/100/120 Inverter DC Plasma Cutter

Features:

- Can cut metal plate in various routes.

- Outstanding cutting performance, suitable for cutting carbon steel, stainless steel, aluminum and copper.

- Widely used in iron structure construction, manufacturing and automobile maintenance.

- Improved cooling method for the cutting torch which greatly makes the cutting consumables more endurable.

- Using air pressure adjusting equipment. Able to operate when the external air pressure is too high.

- The cutting current is continuously adjustable. Direct and precise.

- With protection of electro circuit against over current, over voltage and low-voltage. Safety in operation can be assured.

Specification:

Model	LGK-30	LGK-40	LGK-60	LGK-100
Input Voltage(V)	115/230	115/230	400	400
Frequency(Hz)	50/60	50/60	50/60	50/60
Rated Input Power Capacity(KVA)	3.3	4.8	7.9	14
No-load Voltage (V)	230	230	238	270
Output Current(A)	10-30	10-40	10-60	10-100
Duty Cycle (%)	60	60	60	60
Max Cutting Thickness(mm)	12	15	25	35
Efficiency	85	85	85	85
ARC Starting	HF/Touch	HF/Touch	HF/Touch	HF/Un-Touch
Insulation Class	F	F	F	F
Protection Class	IP21	IP21	IP21	IP21
Gross Weight(KG)	11	11	22	38
Dimensions(mm)	450230410	450230410	550310510	675355520
Quantity(20ft)	670 pieces	670 pieces	370 pieces	225 pieces
