Good Quality Customized Hot Dipped Emt Galvanised Steel Tube
US$ 700 - 800
MOQ: 20 Tons
Key Specifications
Get Latest Price
Standard:
Grade:
Thickness:
1.07, 2.11
Payment & Shipping
Payment Methods:
Port of Shipment:
XINGANG CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Discount 2" Imc Conduit for Cable ProtectionUS$ 700 - 800MOQ: 20 Tons -
Quality Promotional Zinc-coated Steel TubesUS$ 600 - 700MOQ: 25 Tons
-
Super Quality Customized Little od Steel TubeUS$ 600 - 700MOQ: 25 Tons
-
New Style Hot Sell Pipe 15 Emt ElbowUS$ 700 - 800MOQ: 20 Tons
-
Good Quality Stylish Mantled Imc Galvanised Steel TubesUS$ 700 - 800MOQ: 20 Tons
Thickness
1.07, 2.11
Section Shape
Round
Outer Diameter
0.5 - 4 inch
Place of Origin
Hebei, China
Secondary Or Not
Non-secondary
Application
Other, Pipe used for threading
Technique
Hot Rolled
Certification
UL
Surface Treatment
Galvanized
Special Pipe
EMT Pipe
Alloy Or Not
Non-alloy
Good quality customized hot dipped emt galvanised steel tube
Details for hot dipped emt galvanised steel tube
(1)UL Approved
(2)UL797-2000
(3)Galvanized inside and outside
(4)High corrosion resistance
EMT electrical steel pipe
1) Standard: UL 797
2) Trade Size Designator: 1/2'', 3/4'', 1'', 1-1/4'', 1-1/2'', 2'', 2-1/2", 3", 4".
3) All sizes are furnished in the length of 10" or according to your requirement.
The EMT pipe is formed with advanced technology and equipment. It's excellent ductility
provides easy bending,cutting and joining.
Both inside and outside surface of the conduit is galvanized.So it features high corrosion resistance and is widely used under poor condition.
Specification for hot dipped emt galvanised steel tube
| Name | EMT pipe (ELECTRICAL METALLIC CONDUIT STEEL PIPE) |
| Standard | UL797 & ANSI C80.3, UL 797,BS 4568 ,BS EN39 ,BS 31 |
| Name | IMC (INTERMEDIATE METAL CONDUIT STEEL PIPE) |
| Standard | Standard: UL1242/ANSI C80.6. BS 4568 ,BS EN39 ,BS 31 Thread: NPT |
| Size | 1/2" to 4" |
| Length | 3050mm (10 feet)or according to customer's requirement |
| Usage | Through the electrical wires with the purpose of protection for the electrical raceway system |
| Surface finished | Hot dip galvanized(HDG) for class4 and pre-galvanized (PG) for classs3 |
| Material | Carbon steel coil |
| Package | The conduits coverd with plastics then tied with steel straps |
| Delivery time | 20 to 30 days after we receive your advance payment or copy of L/C |
| Payment Term | L/C at sight or T/T |
| Wall thickness | Standard or economy |
| Package | Small package, 5 to 20 PCS/bundle, tied with wire. Master package, 5 to 20 PCS/small bundle, tied with wires, then 10 small bundles/master, tied with steel straps.each bundle covered with woven bag. |
Dimension for hot dipped emt galvanised steel tube
| Nominal Dimension(mm) | Outside Diameter Inch(mm) | Wall Thickness Inch(mm) | Length | Estimated Weight | |||
| Inch | mm | Dimension | Tolerance | Dimension | Tolerance | (mm) | (Kg/m) |
| 1/2" | 16 | 0.706(17.93) | ±0.005(0.13) | 0.042(1.07) | 5%10% | 10(3.05) | 0.439 |
| 3/4" | 21 | 0.922(23.42) | 0.049(1.24) | 0.669 | |||
| 1 | 27 | 1.163(29.54) | 0.057(1.45) | 0.99 | |||
| 1-1-4" | 35 | 1.510(38.35) | 0.065(1.65) | 1.469 | |||
| 1-1-2" | 41 | 1.710(44.20) | 0.065(1.65) | 1.698 | |||
| 2 | 53 | 2.197(55.80) | 0.065(1.65) | 2.17 | |||
| 2-1-2" | 63 | 2.875(73.03) | ±0.010(0.25) | 0.072(1.83) | 3.177 | ||
| 3 | 78 | 3.500(88.90) | ±0.015(0.38) | 0.072(1.83) | 3.979 | ||
| 4 | 103 | 4.500(114.30) | ±0.020(0.50) | 0.083(2.11) | 5.75 |

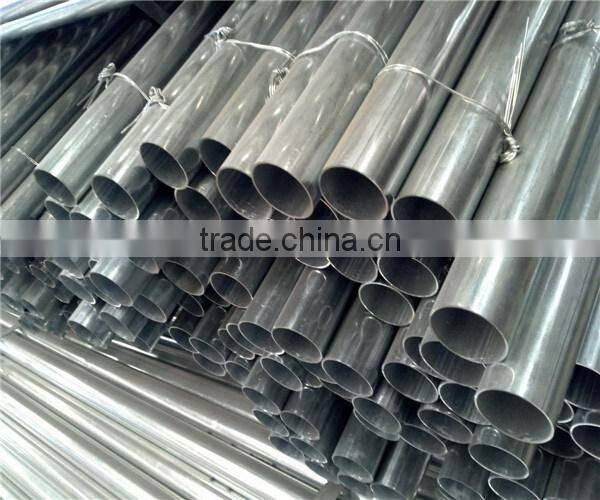

Picture for hot dipped emt galvanised steel tube
Workflow
Packaging&shipping for hot dipped emt galvanised steel tube
Customer visiting
Our team
hot dipped emt galvanised steel tube
