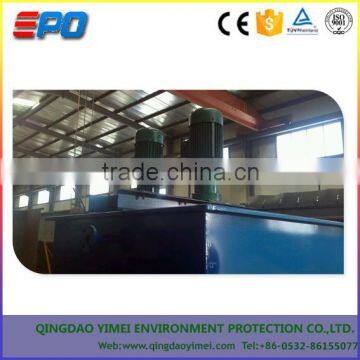

Cavitation Air Flotation
Introduction: CAF of Qingdao YiMei (Group) Environment Project Co.,Ltd is based on the overall analysis summarize the advantages and disadvantages of home and abroad air flotation equipment, Through Many Experiments carefully developed, which is a domestic leading technology of sewage suspended solids separation purification equipment, Today's including dissolved vapor floating in all floating technology and incomparable,which got customer consistent high praise since bring to market.

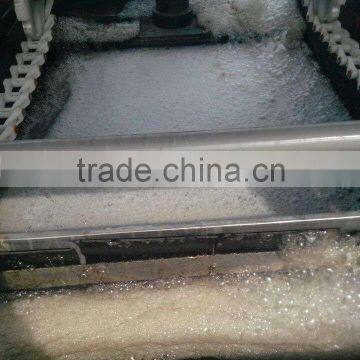

YMWF cavitation air flotation machine is the world original patent water treatment equipment, also is the US department of commerce and EPA's export recommend technology. YMWF cavitation air floating system is the Mcwong Environmental and Energy Group patent products, enjoy exclusive manufacturing license. This system ’s equipment is simple and easy operation and maintenance, better suit to all nations, which is the best choice of industry and Municipal sewage treatment. Comparing with the traditional flotation technique, YMWF have stronger strengthen in operating expense and easy operating. YMWF cavitation flotation system enjoy high reputation in America, which is widely used all over the world. Cavitation Air Flotation is an excellent sewage treatment technique, rational design, operation convenient and economic, which can remove the suspended solid from the waste water by air produce bubble. cavitation aerator inject the “microscopic bubble” into waste water directly , no need dissolved air in advance, then make the “microscopic bubble” Uniform distribution into waste water by Scattered gas impeller, so the entire operation won’t occur choking, no need of pressure dissolved air, air compressor and circulating pump etc.
Characteristic
1.Simple Structure, easy to operate
2.Low operation cost
3.High efficiency
4.Strong adaptability5. Save investment
Applied Range
1.Suspended solid separation
2. water-oil separation purification
3. Coagulation flocculent body separate
4. Activated sludge flocculent separate
Compare with Conventional floating performance:
Item |
YMWF—1OO |
Conventional dissolved air flotation |
Power |
4kw |
22kw |
Occupy area |
25 m2 |
66m2 |
Proper range |
No limit to SS |
SS≤200mg/L |
Treatment Effect |
Effluent SS≤20-30mg/L |
Effluent SS≤20-30mg/L |
retention Period |
15-20Min |
30-50Min |
Air bubble size |
10-100μ |
10-50μ |
Air Bubble dimensional requirement |
uniformity |
more evenly More better |
Routine Maintenance |
rarely requirement |
Often requirement |
Danger |
no pressure equipment |
With Pressure equipment |
Operation |
very simple |
Complex |
Structure |
Briefness |
Complex |
Noise |
No |
Big |
Technical data:
Model |
Flow rate (m3/h) |
Tank size (L*W*H) |
Aerator power (kw) |
Main motor power (kw) |
Dosing system Power (kw) |
Total power (kw) |
||
YMYF-5 |
5 |
2.44 |
0.93 |
1.23 |
1.1 |
1.6 |
2.24 |
3.84 |
YMYF-10 |
10 |
3.05 |
1.23 |
1.23 |
1.1 |
1.6 |
2.24 |
3.84 |
YMYF-15 |
15 |
3.55 |
1.23 |
1.23 |
1.1 |
1.6 |
2.24 |
3.84 |
YMYF-20 |
20 |
4.10 |
1.23 |
1.23 |
1.1 |
1.6 |
2.24 |
3.84 |
YMYF-25 |
25 |
4.30 |
1.52 |
1.83 |
2.2 |
2.94 |
2.24 |
5.18 |
YMYF-35 |
35 |
4.72 |
1.52 |
1.83 |
2.2 |
2.94 |
2.24 |
5.18 |
YMYF-50 |
50 |
5.33 |
1.80 |
1.83 |
2.2 |
2.94 |
2.24 |
5.18 |
YMYF-75 |
75 |
7.14 |
2.21 |
1.83 |
2.2 |
2.94 |
2.24 |
5.18 |
YMYF-100 |
100 |
8.47 |
2.21 |
1.83 |
2.2*2 |
5.5 |
2.24 |
5.18 |
YMYF-150 |
150 |
12.32 |
2.21 |
1.83 |
2.2*2 |
5.5 |
2.24 |
7.74 |
YMYF-175 |
175 |
13.50 |
2.41 |
1.83 |
2.2*2 |
5.5 |
2.24 |
7.74 |
YMYF-200 |
200 |
15.09 |
2.41 |
1.83 |
2.2*3 |
7.7 |
2.24 |
9.94 |
YMYF-320 |
320 |
15.09 |
3.05 |
1.83 |
2.2*3 |
8.1 |
2.24 |
9.94 |
YMYF-400 |
400 |
16.6 |
3.50 |
1.83 |
2.2*4 |
10.3 |
2.24 |
12.54 |
YMYF-500 |
500 |
20.62 |
4.40 |
1.83 |
2.2*6 |
14.7 |
2.24 |
16.94 |
