Specifications
2 atas gateway / fxs ports voip gateway sip1 to 32 FXS/FXO
Protocol SIP
1 Wan 1 Lan 1Console
ATA FXS FXO VOIP Gateway
1.1 2 4 8 16 24 32 FXS/FXO, 1 Wan,1 Lan,
2.Protocol SIP
3.G.729A, G.723.1, G.711a/ulaw Codecs
4.Compatible with Asterisk, Elastix etc.
5.AudioCodes DSP chip
Company profile:
(ACOM20X)The Fxs/Fxo gateway products:
The Ejointech ACOM20X is a SIP-based analog voice gateway that provide voice/fax communication over the IP network
(VoIP/FoIP). It links traditional telephony networks to IP networks with conventional telephony devices such as analog phones
or fax machines.
The highly flexible call routing settings allow the administrator to configure different routes for calls based on the dialed number. Both proxy based calls and peer to peer calls are supported simultaneously. It supports phone book to place peer to peer calls without going through a VoIP server. By routing calls over the Internet or any IP network, this gateway can reduce or eliminate
long distance or inter office phone charges. Corporations can also enjoy the benefits of network consolidation and improved
controllability of the telephone system
Features & Specifications:
| Call Control Protocols | SIP | ||||||||
| Number of Ports | 1 to 32 FXS/FXO(RJ-11 conntector) | ||||||||
| 1 WAN 10/100Base-T ethernet(RJ-45 connector) | |||||||||
| 1 LAN 10/100Base-T ethernet(RJ-45 connector) | |||||||||
| 1 console(RS-232 connector) | |||||||||
| Voice Codecs | G.729A, G.723.1, G.711 a/ulaw | ||||||||
| Network Protocols | IPv4, TCP, UDP, PPPoE, DHCP, DNS, NAT, Telnet, HTTP, FTP, TFTP | ||||||||
| Configuration and Maintenance |
·Web-based GUI ·Console, telnet command line ·Centralized network management ·IP configuration setting through IVR |
||||||||
| Firmware Update | Local file, FTP, TFTP and HTTP | ||||||||
| Telephony Features | ·Hot-line call ·Dial plan ·Speed dial ·Phone book |
||||||||
| Telephony Signaling | ·DTMF tone dectection/generation ·DTMF relay: in-band, RFC 2833 and SIP info ·Call forward: unconditional, no answer and busy ·N-way conferencing ·Caller ID display/generation, Mobile Number Portability |
||||||||
| Fax | T.38 fax | ||||||||
| Voice Quality |
·Echo cancellation ·Silence suppression(voice activity detection, comfortable noise generation) ·Adaptive jitter buffer |
||||||||
| LEDs | 1 power, 2 WAN (10M and 100M), 2 LAN (10M and 100M) and 1-32 ports | ||||||||
| Power Supply | Input 12V DC/1.2A | ||||||||
| Weight | 0.4kg-4kg | ||||||||
| Operating Environment | ·Operating temperature: 0 - 50ºC ·Operating humidity: 10 – 90% |
||||||||
| Warranty | 12 Months | ||||||||
Detailed PIC

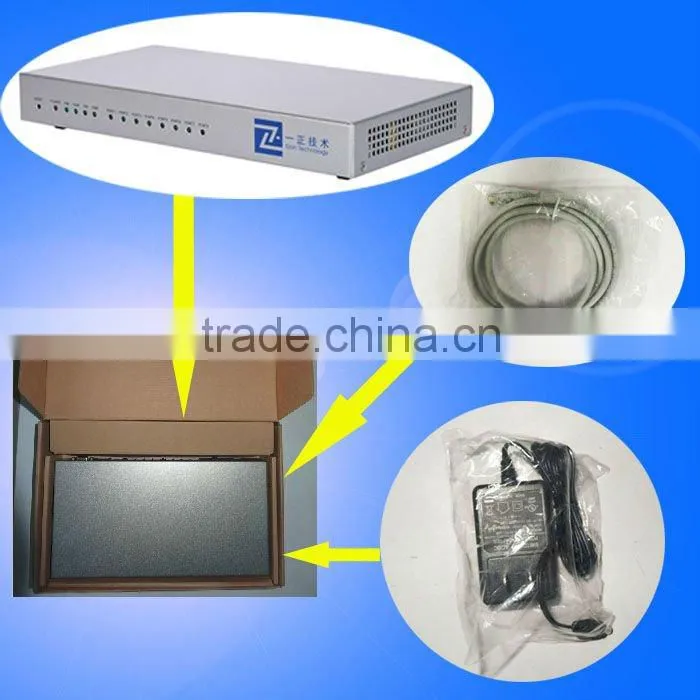

Package PIC
