Ejointech Online Firmware Update 3g 16 Port 16 Channels 64 Sim Cards Wcdma Gateway Goip-16/64

Ejointech Online Firmware Update 3g 16 Port 16 Channels 64 Sim Cards Wcdma Gateway Goip-16/64 thumbnail-1
Ejointech Online Firmware Update 3g 16 Port 16 Channels 64 Sim Cards Wcdma Gateway Goip-16/64 photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Ejoin
Model Number:
ACOM516W-16/64
Contact Supplier Request Quote Chat Now
Shenzhen Ejoin Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Ejoin
Model Number ACOM516W-16/64
Type VoIP Gateway
Company Information

Ejointech online firmware update 3g 16 port 16 channels 64 sim cards wcdma gateway goip-16/64

Ejointech is a professional developer and manufacturer of VoIP products. EjoinTech

provides ACOM brand VoIP communication devices and solutions. And we also offer

customized products and OEM service. They are cost-effective gateways for SOHO,

SMEs and system integrators and it also opens up new revenue generating opportunities

for service providers.





Product Description

ACOM516 series is able to process traditional voice call service and internet

data service. Compare to the ACOM508 GSM/CDMA/WCDMA series VoIP

Gateway,ACOM516 series adapts new hardware and software structure, which

supports up to 16 concurrent calls.

Ejointech online firmware update 3g 16 port 16 channels 64 sim cards wcdma gateway goip-16/64

Ejointech online firmware update 3g 16 port 16 channels 64 sim cards wcdma gateway goip-16/64



Special Features:

1.Support G729a/b/e,G723.1,G.711 A/U law, iLBC auto-selecting



2.EBO(Ejoin Band with Optimization)



3.Proxy Encryption Solution for IP Block



4.Support SIM Bank



5.VPN(pptp)



6.SIM Card Rotating(ACOM516-64)



 Solution to solve the SIM card blocked by:



  Accumulated Call Duration



  Accumulated Connected Calls



 Accumulated Calls



 Consecutive Failed Calls



 Consecutive No-Alert Calls



 Consecutive No-Answer Calls



 Consecutive No Carrier Calls



 Consecutive Short-Duration Calls



7.Station intelligent switching



8.ERMS(Ejoin Remote Management System)



9.Port Inter-Calling



10.Fake Ringback



11.Call Duration Limitation for SIM Card/Single



12.Dial Plan/Prefix Inward Translation/Intelligent Routing



13.Web Browser: Firefox/Chrome /IE/Opera

Specification:

Model

ACOM 516-16/64

Number of Channels

16 channels

Frequency

GSM: 850/900/1800/1900MHz

CDMA:450/800/1900MHz

WCDMA:850/900/1800/1900MHz

SIP Specification

SIP/2.0 RFC3261

Session Timer RFC4028

STUN

Network Protocols

DHCP/PPPoE/VPN(pptp)

NTP

Telnet/HTTP/FTP/TFTP

Encryption:Ejoin,VOS2000,RC4,XOP.Base64

Telephony Features

Hot-line call ,Dial plan, Speed dial, Phone book, CDR, LCR, White/

Black list

Telephony Signaling

DTMF tone dectection/generation

DTMF relay: in-band, RFC 2833 and SIP info

Call forward: unconditional, no answer and busy

N-way conferencing

Caller ID display/generation, Mobile Number Portability

Voice Capability

Voice codecs:G729a/b/e,G723.1,G.711 A/U law, iLBC

Echo cancellation

Silence suppression & detection(VAD, CNG)

Adaptive jitter buffer

Volume adjustable

IVR customized

Number of Ports

1 WAN 10/100Base-T ethernet(RJ-45 connector)

1 LAN 10/100Base-T ethernet(RJ-45 connector)

1 Console(USB)

LEDs

1 Power and 16 groups of card online and running status indicator

Power Supply

100-240VAC, 50 - 60 Hz IN, 12V/5A OUT

Operating Environment

Operating temperature: 0 - 50ºC

Operating humidity: 10 – 90%RH

Warranty

12 Months




Our Services

Mobile Features:

1.SMS Send, Receive and Forward(GSM/SIP/HTTP)

2.SMS Inbox

3.AT Command , USSD

4.SMS Format: PDU/TXT

5.PIN Code Management

6.CDMA Delay Answer

7.GSM Polarity Reversal

8.Carrier Selection

9.Caller ID Hidden(need SIM Card support)

Maintenance and Management:

1.Multi-language Interface

2.USB Serial COM

3.Configuration Backup and Restore

4.Support HTTP/TFTP Upgrade

5.Call statistics: ASR,ACD,PDD

6.Ejoin Remote Management System



Ejointech online firmware update 3g 16 port 16 channels 64 sim cards wcdma gateway goip-16/64

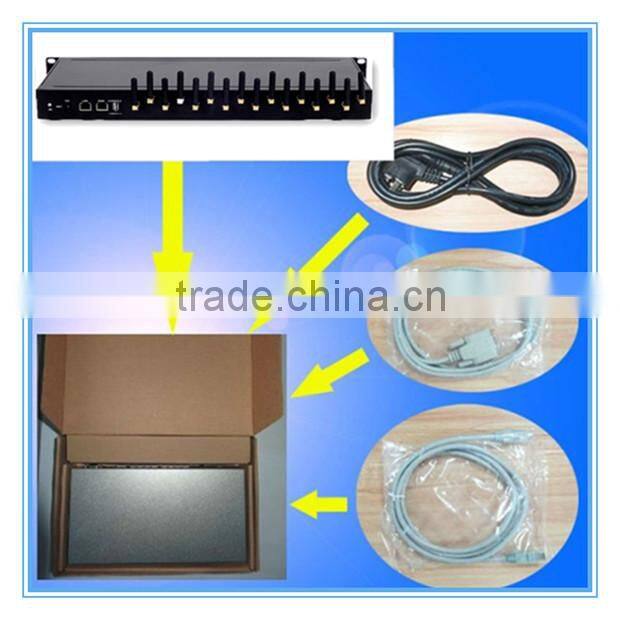

Packaging & Shipping

 Ejointech online firmware update 3g 16 port 16 channels 64 sim cards wcdma gateway goip-16/64Ejointech online firmware update 3g 16 port 16 channels 64 sim cards wcdma gateway goip-16/64















FAQ

Ejointech online firmware update 3g 16 port 16 channels 64 sim cards wcdma gateway goip-16/64
