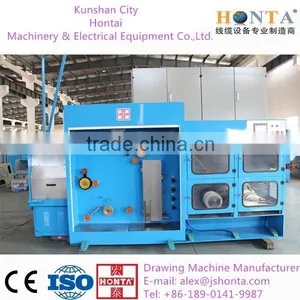

24DTS Fine wire drawing machine
Body structure : steel welding
Inlet diameter : Max 2.2mm
Applicable material : aluminum wires
Outlet diameter : 0.25~0.6mm
Mechanical speed : Max 2500MPM
NO. of dies : Max 22 / Min 13, prepared by users.
Exterior diameter of dies : Dia. 25mm x thickness 8-12mm
Area reduction : the last die is 8.7%; the others are15%
Drawing capstan : 4 capstans, sprayed chromic oxide
Power of drawing main motor : 20HP-4P AC; controlled by a 20HP inverter
Take-up motor : 5.5HP-4PAC; controlled by a 5.5HP inverter
Bobbin loading capacity : approx. 100kgs
Bobbin type : PND300, 400, 500mm
(Bobbin drawings shall be offered by user)
Power consumption : 5~15KW
Total installed capacity : 35KVA
Transmission : all by flat belts, Habasit (swiss) belts
Emulsion quantity : 40L/min
Wire drawing lubrication : curtain spray system
Color : blue (or according to customer’s request)
Operation direction : Left to right
Dimension (L×W×H) : 1800L×1400W×2100H(mm)
Weight : about 2200kgs
Requirements for emulsion:
Working pressure : 0.2~0.4Mpa
Temperature : ≤30℃
Flow rate : 12~18m3/h
Assembly Workshop
Mechanical Strength
Certifications
Packing: well packed on steel pallets in 1x 40HC containers.
Suitable for long distance ocean freight transportation and to change of climate, well protected against moisture and shocks.
Terms of payment:
- 30% at contract, 65% before shipment, 5% after acceptance test at user site in 1 month by T/T.
- Payment by an irrevocable L/C is acceptable.
1. Any inquire will be replied within 24 hours.
2 .Prodessional manufacture,welcome to visit our website
3. Any your idea on machine,we will help you to design and put it into production.
4. High quality,fashion designs,reasonable competitive price,fast lead time.
5. After-sale service.
a. All products will have been strictly quality checked in house before packing.
b.1 year warranty.
c. Engineers available to service machinery overseas
