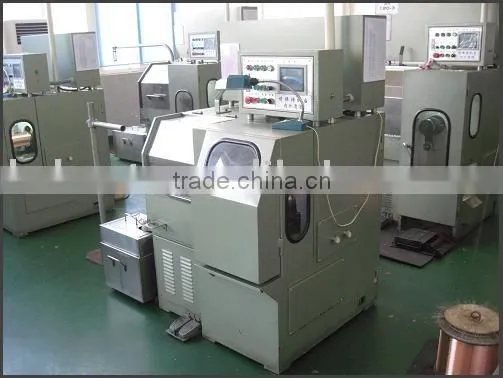

Help CenterExtremely Fine Wire & Supper Wire Drawing Machine
Related Products
Main technical data of the Extremely fine wire & supper wire drawing machine:
· inlet diameter:Φ 0.15 - Φ0.40mm
· outlet diameter:Φ 0.05 - Φ0.12mm
· max dies No.:20 pcs
· transmission type: flat belts
· machine type: 4capstans square type
· max speed ( MPM/min):2000
· Slip ratio of m/c:10.50%
· Capstan slip ratio:6.00%
· Control system: button
· Motor control: Dual inverter control
· Capstan: Ceramic plasma
· Capstan diameter(max) :120
· Capstan diameter:120
· Take-up diameter:Φ300 /max
· Bobbin loading & unloading: shaft type
· Traversing unit: Synchronize motor type
· Main motor:4KW
· Take-up motor: 2.2KW
· Top power consumption: 7KW
· Synchronous control: PID synchronous control spooler
· Max loading weight: 20-50kg
· Brake: 10kg magnetic brake
· lubrication type: spray type
· lubrication type for bearing: without oil
· Power: 3*380V 50/60Hz
· Machine size: 2050*1600*1900
