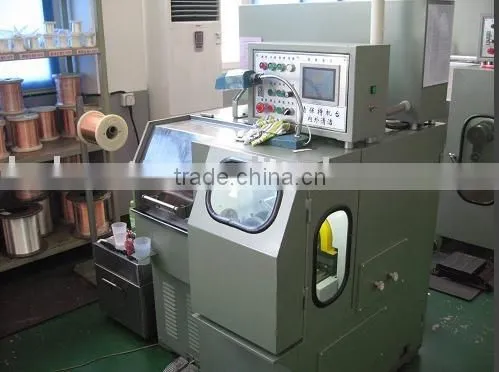

Main technical data of the HT-24DW Extremely fine wire & supper wire drawing machine:
· inlet diameter:Φ0.14-Φ0.30mm
· outlet diameter:Φ0.03-Φ0.08mm
· max dies No.:24 pcs
· transmission type: flat belt
· machine type: 4capstans square type
· max speed ( MPM/min):2000
· Slip ratio of m/c:8.00%
· Capstan slip ratio:7.00%
· Control system: PLC+ men-machine interface
· Motor control: Dual inverter control
· Capstan: Ceramic plasma
· Capstan diameter(max) :100
· Capstan diameter:100
· Take-up diameter:Φ250/max
· Bobbin loading & unloading: shaft type
· Traversing unit: Synchronize motor type
· Main motor:4KW
· Take-up motor: 2.2KW
· Top power consumption: 4KW
· Max loading weight: 12-15kg
· Brake: 10kg magnetic brake
· lubrication type: spray type
· lubrication type for bearing: without oil
· Power: 3*380V 50/60Hz
· Machine size: 1200*960*1800
