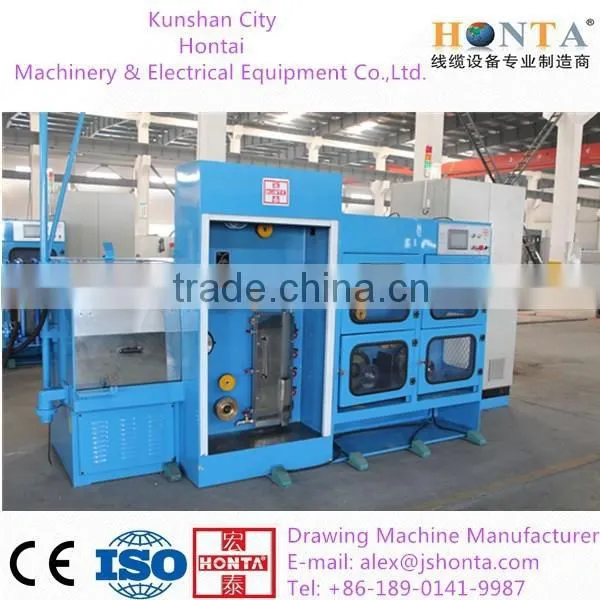

24DTS Fine wire drawing machine
Body structure : steel welding
Inlet diameter : Max. 1.2mm
Applicable material : hypoxia oroxygen free copper wire, tinned copper wire;
silver coated copper wire.
Outlet diameter : 0.08~0.45mm
Max. line speed : Max. 1800m/min (hard wire)
Outlet diameter (mm) |
0.08-0.11 |
0.12-0.15 |
0.16-0.18 |
Speed with annealing(m/min) |
1000-1200 |
1200-1100 |
1100-1000 |
Speed without annealing (m/min) |
1600-1400 |
1400-1200 |
1200-1000 |
NO. of dies : Max. 24 sets
Exterior diameter of dies : Dia. 25mm x thickness 8-12mm
Area reduction : the last die is 8.7%; 1st- 23rd are15%
Drawing capstan : 4 capstans
Power of drawing main motor : 15HP (11KW) AC; controlled by inverter

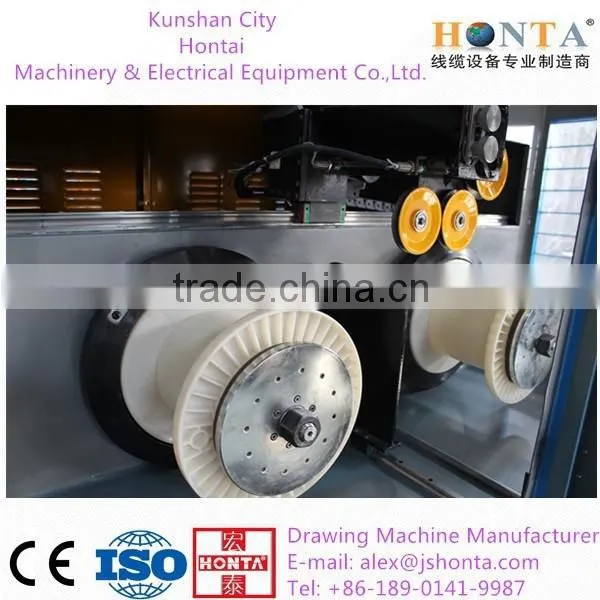

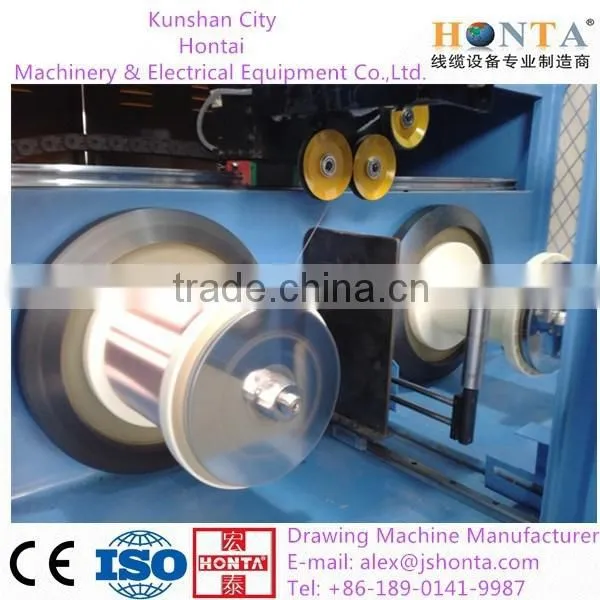

Double spooler motor : 5HP (2.2KW X 2) AC; controlled by inverter
Total installed capacity : 40KVA
Transmission : all by flat belts
Drawing cones : ceramic (zirconium oxide)
Cooling : emulsiom spraying to dies and drawing cones.
Emulsion quantity , : 40L/min
Operation direction : from left to right
Dimension (L×W×H) : as per the foundation drawing offered by the supplier.
Colour/painting : Machine K7RAL5012 (Light blue)
interior K7RAL7037 (Dusty grey)
noise enclosure K7RAL5012 (Light blue)
Electrical control cabinet K7RAL7035 (Light grey)
Rotate portion K7RAL1004 (Golden yellow)
or according to customer’s request.
Requirements for emulsion:
Working pressure : 0.2~0.4Mpa
Temperature : ≤30℃
Flow rate : 12~18m3/h
Assembly Workshop
Mechanical Strength
Certifications
Packing: well packed on steel pallets in 1x 40HC containers.
Suitable for long distance ocean freight transportation and to change of climate, well protected against moisture and shocks.
Terms of payment:
- 30% at contract, 65% before shipment, 5% after acceptance test at user site in 1 month by T/T.
- Payment by an irrevocable L/C is acceptable.
1. Any inquire will be replied within 24 hours.
2 .Prodessional manufacture,welcome to visit our website
3. Any your idea on machine,we will help you to design and put it into production.
4. High quality,fashion designs,reasonable competitive price,fast lead time.
5. After-sale service.
a. All products will have been strictly quality checked in house before packing.
b.1 year warranty.
c. Engineers available to service machinery overseas
