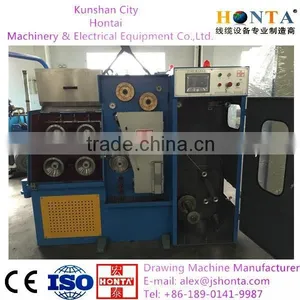

24DT Fine wire drawing machine
Body structure : steel welding
Inlet diameter : Max. 1.60mm
Applicable marterial : copper wires and tinned copper wires
Outlet diameter : 0.15~0.85mm
Max. line speed : Max. 1800m/min
Outlet diameter (mm) |
0.08-0.11 |
0.12-0.15 |
0.16-0.50 |
Speed with annealing(m/min) |
800-1000 |
1100-1000 |
1500-1600 |
NO. of dies : Max. 24 nos
Exterior diameter of dies : Dia. 25mm x thickness 8-12mm
Area reduction : the last die is 8%; 1st- 23rd are15%
Drawing capstan : 4 capstans, with zirconia rings, provided by user
Final capstan : zirconia, provided by user
Power of drawing main motor : 11KW AC; controlled by inverter
Total installed capacity : 39KVA
Transmission : all by flat belts
Cooling : emulsiom spraying to dies and drawing cones.
Emulsion quantity , : 40L/min (pump provided by users)
Operation direction : from right to left
Dimension (L×W×H) : as per the foundation drawing offered by the supplier.
Weight : about 4000kgs
Colour/painting : Machine K7RAL5012 (Light blue)
Interior K7RAL7037 (Dusty grey)
Rotate portion and safety fence K7RAL1018 (zinc yellow)
Electrical control cabinet K7RAL7035 (Light grey)
or according to customer’s request.
Requirements for emulsion:
Working pressure : 0.2~0.4Mpa
Temperature : ≤30℃
Flow rate :12~18m3/h
Assembly Workshop
Mechanical Strength
Certifications
Packing: well packed on steel pallets in 1x 40HC containers.
Suitable for long distance ocean freight transportation and to change of climate, well protected against moisture and shocks.
Terms of payment:
- 30% at contract, 65% before shipment, 5% after acceptance test at user site in 1 month by T/T.
- Payment by an irrevocable L/C is acceptable.
1. Any inquire will be replied within 24 hours.
2 .Prodessional manufacture,welcome to visit our website
3. Any your idea on machine,we will help you to design and put it into production.
4. High quality,fashion designs,reasonable competitive price,fast lead time.
5. After-sale service.
a. All products will have been strictly quality checked in house before packing.
b.1 year warranty.
c. Engineers available to service machinery overseas
