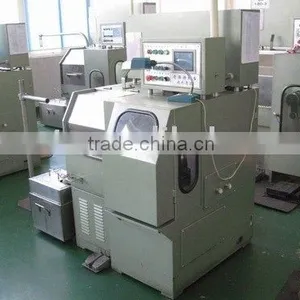

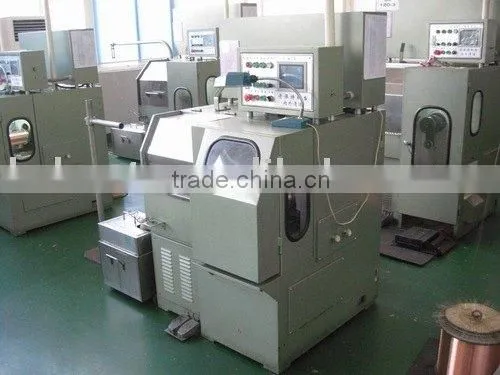

Super Fine Wire Drawing Machine
- 0 per Month
- Shanghai
- T/T
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | HONTA | Model Number: | HT100-24 |
Usage: | Drawing |
Product Description
Model | HT100-24 |
Inlet diameter | φ0.30--φ014mm |
Outlet diameter | φ0.06--φ0.03mm |
Max. Speed | 1800 m/min |
Max. dies | 24 |
Area reduction | 8% final 7% |
Drawing gear | sprayed porcelain on the surface |
Machine body | Irion casted |
Total power | 4.25KW |
Main motor power | 4 KW |
Line arrangement method | Synchronous motor, ball screw drive |
Lubrication and cooling method | fan spraying |
Weight | 1100KG |
Spooler dimension | φ255*215*φ215*200*φ80 mm |
Overall size | 1480L X 1090W X 1580H (mm) |
Max. spooler capacity | 12-15KG
|
