Specifications

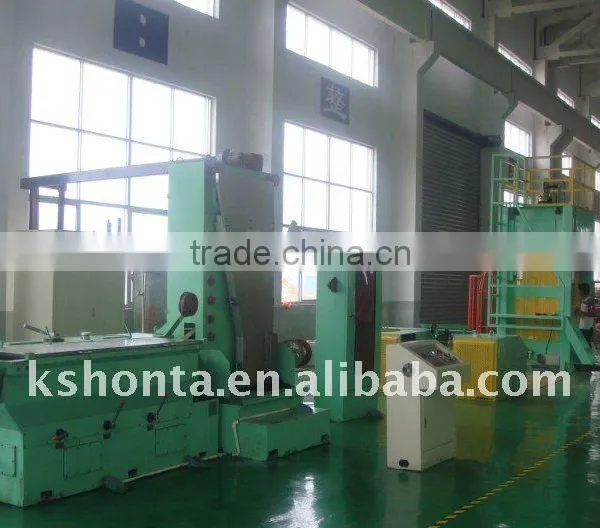

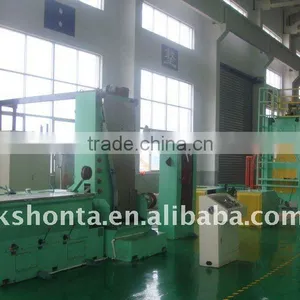

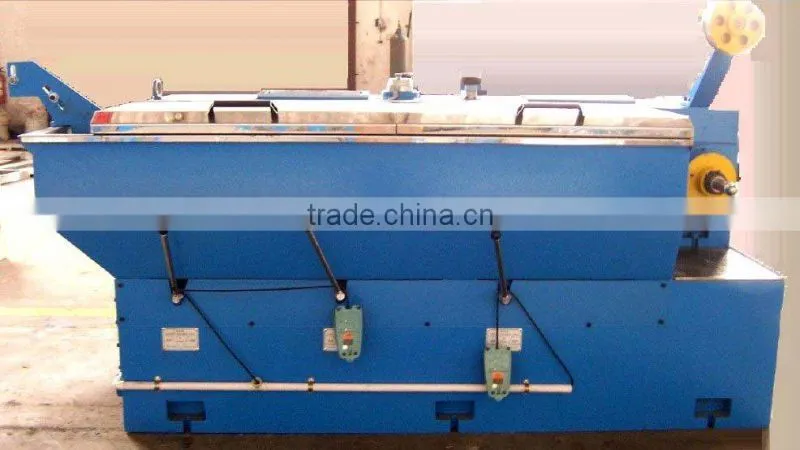

This machine can draw 3.5mm aluminum wire to 0.8-2.0mm.TECHNICAL DATA
Inlet diameter : Max.3.5 mm
Outlet diameter : 0.8-2.0mm
Drawing speed : max 1800m/min
Drawing passes : max 17
Exterior diameter of dies : 25mm
Area reduction : the final die is 8%, others are 15%
Diameter of drawing capstan : Max. 300mm
Diameter of finished capstan : 300mm
Power of drawing main motor : AC45 kw
installed power : 70 KVA
Control method : AC motors
Bobbin : DIN 630
Operation direction : left to right
Noise level : < 85 dbA (Except for main motor )
Line dimension (L X W X H) : approx.11000×4600×4500
Colour : according to request.
