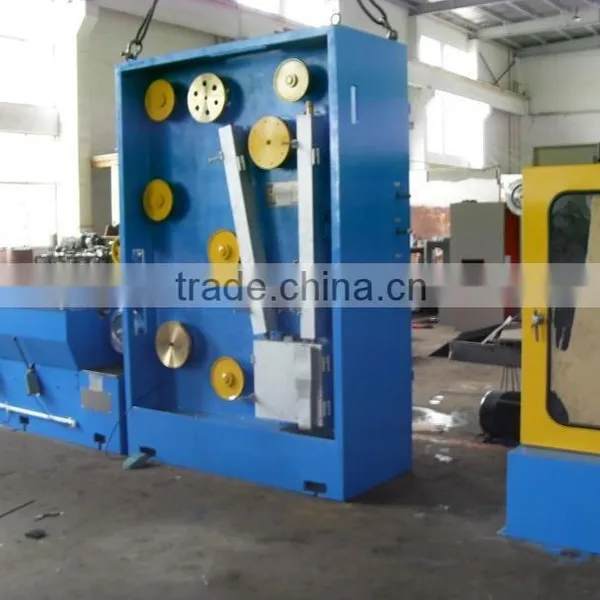

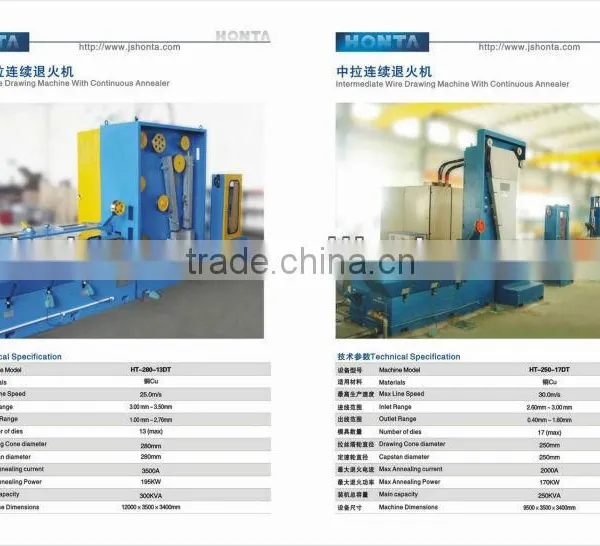

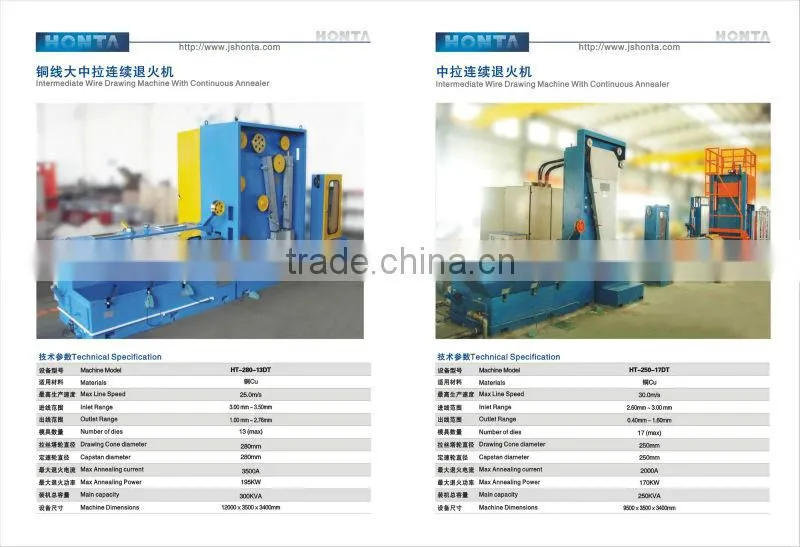

Technical specification of HT-280-13 Wire drawing machine:
1, Component:
Pay-off 1set
HT-280-13 Wire drawing machine 1set
Operations area 1set
Electric control system 1set
Pointing and threading machine 1set
Drawing main motor 1set
2. Technical data:
Inlet diameter: max 4.5 mm
Outlet diameter: 0.8~2.76 mm
Machinery speed: max 1500 m/min
Drawing passes.: max 13
Exterior diameter of dies: Φ25 X 10mm or Φ32 X 10mm
Area reduction: the final die is 18.6%, others are 25%
Diameter of drawing capstan: Max. Φ280mm
Diameter of finished capstan: Φ 280mm
Power of drawing main motor: AC 55kw
Material of drawing capstan and finished capstan: sprayed tungsten carbide on the surface of them .
Lubricating way of the gear box: Lubricate the gear pump through transmission inside of the gear box.
Line dimension (L X W X H): Approx.11000×4600×4500
Weight: 3200kgs
