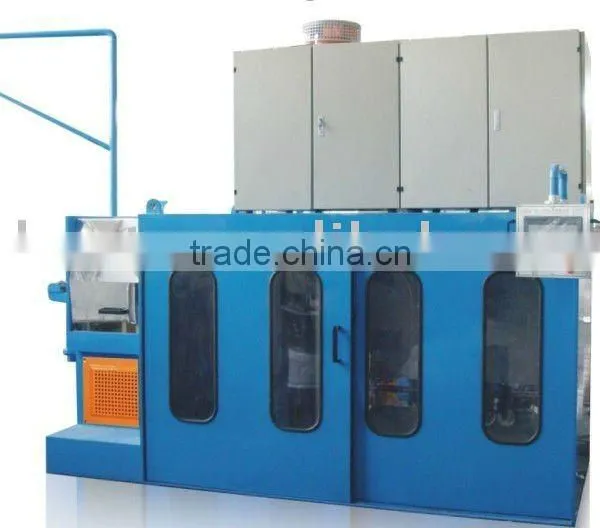

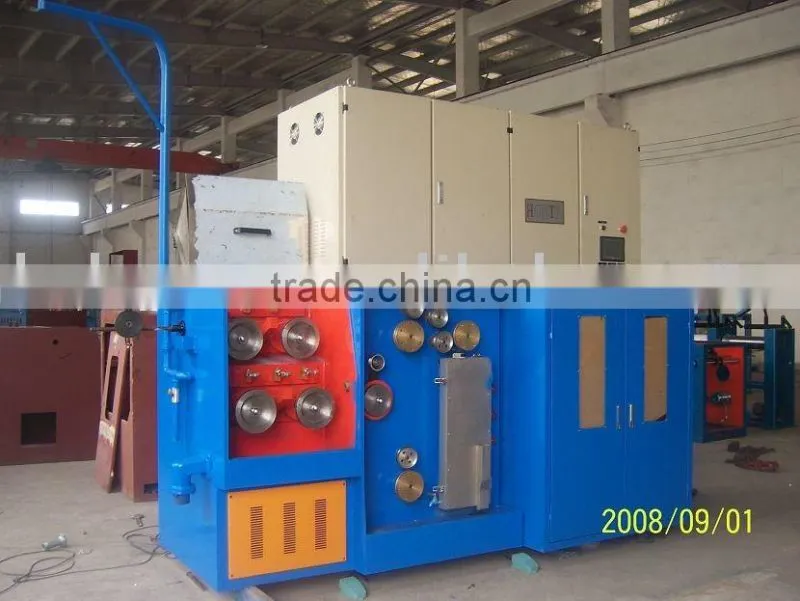

fine wire drawing machine with double bobbins dual take up

Technical data

Body structure : steel plate welding
Inlet diameter : Max. 1.6mm
Applicable marterial : copper wires
Outlet diameter : 0.20~0.68mm
Max. line speed : Max. 30m/s
NO. of dies : Max. 22 nos
Exterior diameter of dies : Dia. 20mm x thickness 8-12mm
Area reduction : the last die is 15.4%; the others are17.64%
Drawing capstan : 4 capstans
Transmission : all by flat belts
Wire drawing lubrication way : emulsion spraying to drawing capstans and dies
Operation direction : from left to right
Weight : approx.2000kgs

Requirements for emulsion


Working pressure : 0.2~0.4Mpa
Temperature : ≤30°C
Flow rate :12~18m3/h
