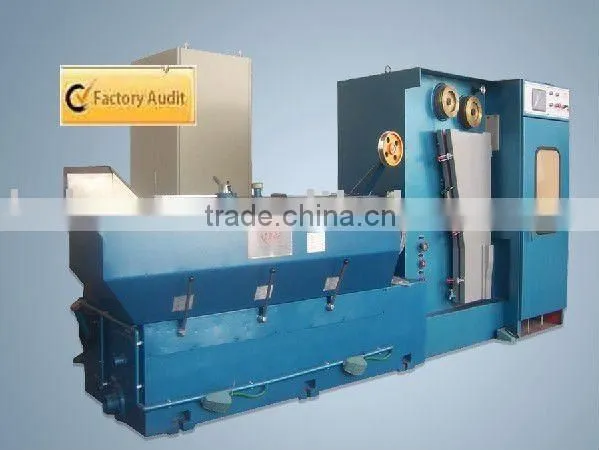

Intermediate Wire Drawing Machine

Intermediate Wire Drawing Machine thumbnail-1
Intermediate Wire Drawing Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-260-17D
Contact Supplier Request Quote Chat Now
Kunshan City Hongtai Machinery & Electric Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name HONTA
Model Number HT-260-17D
Usage Drawing

Drawing machine:

Inlet diameter : Max.Φ 3.0mm

Outlet diameter : Φ0.4-Φ 1.2mm

Drawing speed : max 1800m/min

Drawing passes : max 17

Exterior diameter of dies : Φ25mm &.Φ32mm

Area reduction : the final die is 14.5%, others are 18.18%

Diameter of drawing capstan : Max. Φ260mm

Diameter of finished capstan : Φ 260mm

Power of drawing main motor : AC55 kw

Installed power: 330 kVA

Bobbin for spooler: DIN 630 and DIN 500

Drawing capstans : coated tungsten carbide;

Machine body : casted in one piece;

Transmission : by V-belts to tooth wheels

Cooling type : capstans fully immerged



Online Annealer:

Annealing Wire Diameter : Φ0.4~Φ1.2mm

Maximum Machinery Speed : 1800 m/min

Rated DC Annealing Current : 2000A

Maximum DC Annealing Voltage : 70 V

Annealing Capacity :170KVA

Protection : by steam

Power of steam generator : 9KW

Quanlity of steam : Max.12 kg/hr

Weight : About 1800 kgs

Dimension : 1350X1600X2640mm

Drive : by the flat belt from the finished capstan



spooler:

Max rotate Speed :1800 r/min

Max. movable distance of the shaft :150 mm

Max. travel distance of bobbin lifter :150 mm

Spooling motor :11kW 1500r/min

Traverse motor : servomotor 1KW 3000r/min

Traverse width : 550mm

Brake : hydraulic type, emergency stop within 5 seconds;

Bobbin loading and unloading : by hydraulic liftor;

Wire traverse speed : automatically detect the changes of the speed

Working pressure of the cylinder : 60 kg/cm2
