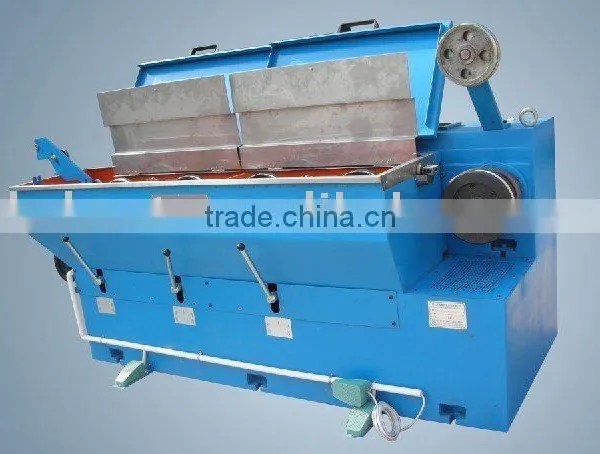

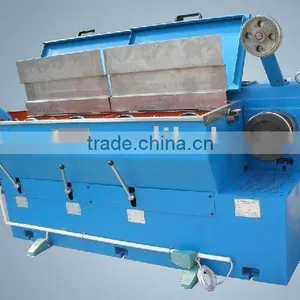

Help CenterCopper Medium Wire Drawing Machine
Related Products
-
17 Dies Wire Drawing Machine With AnnealerNegotiableMOQ: 1 Set -
Intermediate Wire Making Machine for BrassNegotiableMOQ: 1 Set
-
Brass Wire Making MachineNegotiableMOQ: 1 Set
-
Fine and Intermediate Wire Drawing Machine Wire Machine (HT-250-17D)NegotiableMOQ: 1 Set
-
Large & Intermediate Wire Drawing Machine HT-280-13DT Copper Wire Cable Making Equipment High Speed Electric Wire MachineNegotiableMOQ: 1 Set
The feature of the machine:
- Ahorizontal and tandem construction driven by double motors to achieve fast die change.
- A helical gear with high accuracy to ensure high efficiency and low noise.
- An immersion lubricating and cooling system to ensure better quality .
Technical specification:
1. Drawing machine:
Inlet wire diameter 2.6-3.5mm
Outlet wire diameter 04-1.2mm
Max. Line speed 35 m/s
Max. Drawing passes 17
Diameter of finish capstan 250 mm
Speed ratio between capstans 1.265
Max. Size of dies 25x10 mm
Speed ratio : 1.25 , 1st~16th dies;
1.186, 17th die
Power of main motor 55kw; AC
Total install power 300KVA
2. Online annealer:
Rated DC Annealing Current 2000A
Maximum DC Annealing Voltage 60 V
Annealing Capacity 170KVA
Protection by steam
Weight About 1800 kgs
Drive by the flat belt from the finished capstan
Compressed Air:
Working pressure 0.6 ~ 0.7Mpa
Fluctuating value ±0.02Mpa
Dew point -25°C
Flow rate 50L/min
Water quality:
Pressure 0.2~0.4Mpa
Temperature ≤25°C
Hardness of Water for Steam Generator Max 5 dH
Hardness of Water for Annealer Max 12 dH
3. Spooler:
Max rotate Speed 1800 r/min
Max. movable distance of the shaft 150 mm
Max. travel distance of bobbin lifter 150mm
Spooling motor 11kW;1500r/min
Traverse motor servomotor 1KW 3000r/min
Bobbins DIN 630
Brake hydraulic type, emergency stop within 5 seconds;
Bobbin loading and unloading by hydraulic liftor;
Wire traverse speed automatically detect the changes of the speed
