Specifications

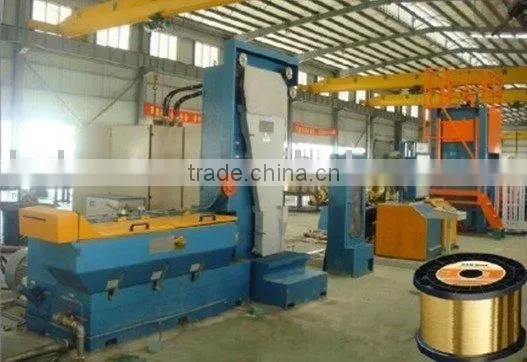

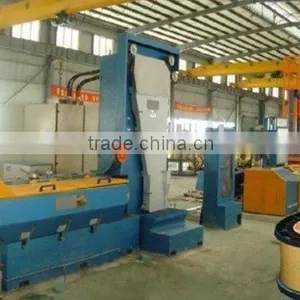

Brass Wire Making Machine:1.inlet:2.8mm
2.outlet:0.8-1.8mm
3.17 dies; 1500m/min
1. drawing machine
Applicable material : H62/H65/H70/H90 round brass/ phosphor bronze wire
Inlet diameter : Max.Φ 2.8 mm
Outlet diameter : Φ0.8-Φ 1.8mm
Drawing speed : max. 1200m/min
Drawing passes: max. 17
Exterior diameter of dies : Φ25 x 10mm
Area reduction : the final die is 8%, others are 15%
Diameter of drawing capstan : Φ 260mm, tungsten carbide
Diameter of finished capstan : Φ 260mm, tungsten carbide
Power of drawing main motor : AC 55 kw, motor made in China
Power of spooler motor : AC 11kw
Installed power : 330 KVA
2. Online annealer
Maximum Machinery Speed : 1200 m/min
Rated DC Annealing Current : 2000A
Maximum DC Annealing Voltage: 85V
Annealing Capacity :170KVA
Protection : by steam
Power of steam generator: 9 Kw
Steam quality : Max12 kg/h
Weight : About 1800 kgs
Dimension : 1350×1600×2640mm
Drive : by the flat belt from the finished capstan
3. spooler
Max. movable distance of the shaft: 150 mm
Max. travel distance of bobbin lifter: 150 mm
Spooling motor: AC 11kW
Traverse motor : 110W
Traverse width: 550mm
Bobbins : PND 500 and PND 630
Bobbin capacity: 300kgs~500 kgs
Brake: pneumatic-hydraulic pressure disc type;
Bobbin loading and unloading: by hydraulic liftor with motor;
Tension control : PID auto adjusting
