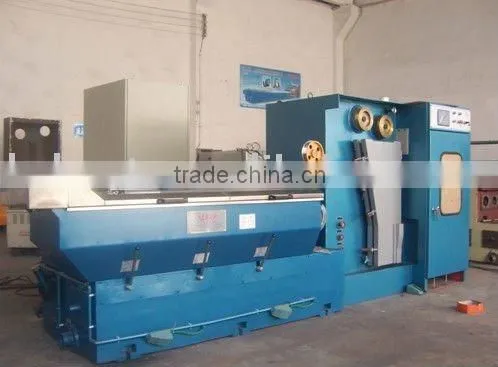

Fine and Intermediate wire drawing machine wire machine (HT-250-17D)

Specifications

HT-250-17D Intermediate wire drawing machines draw wire from 3.5mm to 0.4-1.2mm, and machinery speed is Max1800m/min...

Part one Component of HT-250-17D intermediate wire drawing machines

• HT-250-17D drawing machine                        1set
• HT-630A Spooler take-up machine                1set
• HT-180 intermediate pay-off                             1 set
• Operation area                                                    1 set
• Electrical control system                                   1 set
• Foundation layout plan (include: water, electricity, gas connection indication graph)   1 copy
•    [Parts]        Draw-bench part: one tension potentiometer, one proximity switch, and one traversing idler pulley.

Part two Main technical data:

Inlet wire diameter: max  3.5

Outlet wire scope: φ0.4φ1.2mm

Machinery speed: max  1800m/min

Quantity of moulds: max  17

Exterior diameter of mould: φ25

Machinery extensibility: sizing mould is 18.6%, others are 25%

Diameter of drawing drum: max  φ250

Diameter of constant speed wheel: φ250

Power of drawing main motor: AC55 kw

Exterior size of wire supply frame (L×W×H): 1215×550×3400

Exterior size of drawing machineL×W×H: 2400×1070×1400

Net weight of machine: approximately 3200
