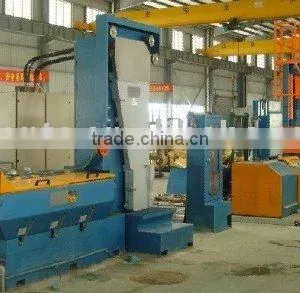

Help CenterBrass Wire Making Machine
Related Products
1. drawing machine
Applicable material : H62/H65/H70/H90 round brass/ phosphor bronze wire
Inlet diameter: Max.Φ 2.8 mm
Outlet diameter: Φ0.8-Φ 1.8mm
Drawing speed: max. 1500m/min
Drawing passes : max. 17
Exterior diameter of dies : Φ25 x 10mm
Area reduction : the final die is 8%, others are 15%
Diameter of drawing capstan : Φ 300mm, tungsten carbide
Diameter of finished capstan : Φ 300mm, tungsten carbide
Power of drawing main motor : AC 55 kw, motor made in China
Power of spooler motor : AC 11kw
Installed power : 330 KVA
2. Online annealer
Rated DC Annealing Current : 2000A
Maximum DC Annealing Voltage : 100 V
Annealing Capacity :100KVA
Protection : by steam
Power of steam generator : 9 Kw
Steam quality : Max12 kg/h
Drive : by the flat belt from the finished capstan
3. 650mm coiler
coiling capstan diameter : 650mm
Basket capacity: Max 1000 kgs
Compressed air pressure : 0.6- 0.7Mpa
flow rate of compressed air : 50L/min
power of main motor : AC11kw
power of the basket conveyor motor : 750 W
Overall size L×W×H : 3000×2600×4650 mm
Net weight of the machine : About 4000 kgs
