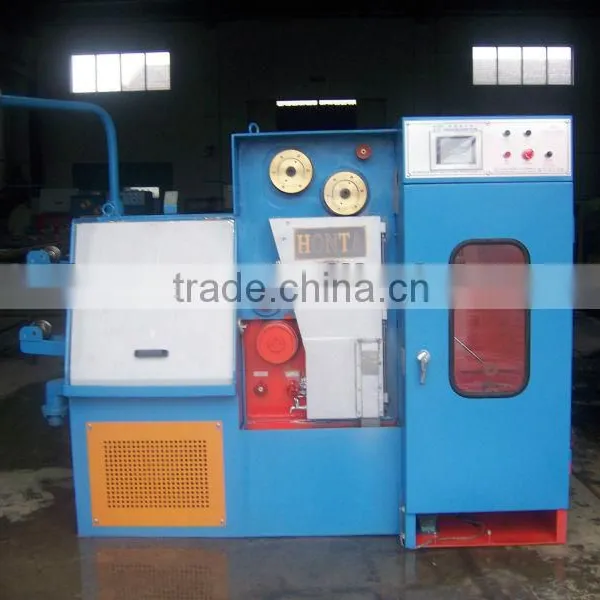

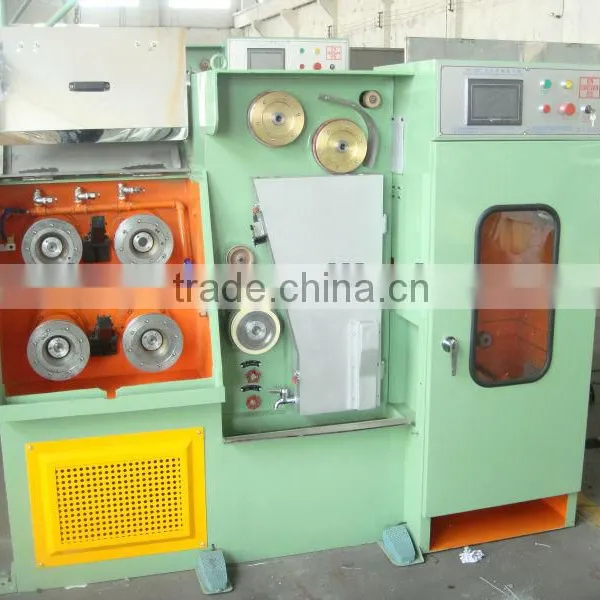

Help CenterFine Wire Drawing Machine High Speed Electric Copper Wire Cable Making Equipment
Related Products
-
HT-24DT High Speed Fine Wire Drawing Machine With Annealer Wire Drawing MachineNegotiableMOQ: 1 Set -
HT-24DT Fine Wire Drawing Machine With Annealer Wire and Cable EquipmentNegotiableMOQ: 1 Set
-
HT-24DT Fine Wire Drawing Machine With AnnealerUS$ 20,000 - 30,000MOQ: 1 Set
-
HT-22DS Fine Wire Drawing Machine for CuNegotiableMOQ: 1 Set
-
HT-22DTS Fine Wire Drawing Machine With AnnealerNegotiableMOQ: 1 Set
Featuresture
-Multi-zone DCannealing ,HMI+PLC,more control,more oriented;
-It can change spooler automatically without machine stop ,therefore ,it improves efficiency and saves labor
-Special traverser and spooler change machanism can ensure a high success rate of switchover and stability.
-Wires are loaded in ABS spooer ,which can meet requiments of the next process and lower costs.
Technical specifacations
Materials: Cu,Tinned copper
Inlet dia: 0.50~1.00mm
Outlet dia: 0.08~0.30mm
Line Speed: 30m/s
No.of dies : Max 24
Max annealing current : 250A
Max annealing power: 15KW
Power of steam generator: 9
Bobbin standard size : 200/250/300
Main capacity: 33KVA
Machine Dimensions: 3200*1600*1800mm
Please contact us for details.
