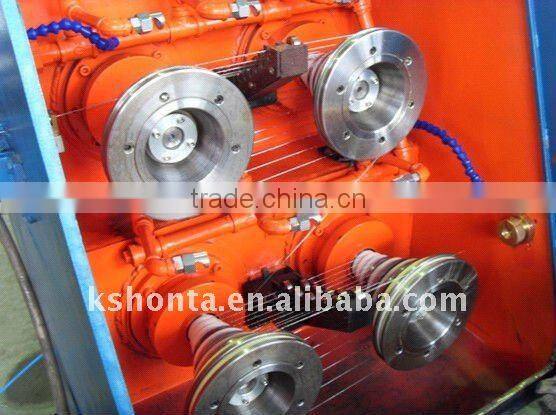

HT-24DT Fine Wire Drawing Machine With Annealer
US$ 20,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-24DT
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HT-22DS Fine Wire Drawing Machine for CuNegotiableMOQ: 1 Set -
HT-22DTS Fine Wire Drawing Machine With AnnealerNegotiableMOQ: 1 Set
-
Small Wire Drawing Machine Jiangsu Kunshan HONTA Manufacturer of Wire and Cable MachineUS$ 5,000 - 15,000MOQ: 1 Set
-
HT-24DA Fine Wire Drawing Machine Professional Manufacturer of Wire and Cable MachineUS$ 5,000 - 15,000MOQ: 1 Set
-
High Speed & Quality Fine Wire Drawing Machine With AnnealerNegotiableMOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
HONTA
Model Number
HT-24DT
Usage
Drawing
1. Main technical data of fine wire drawing machine with annealer:
Outlet diameter: Φ0.5-Φ1.0mm
Inlet diameter: Φ0.08-Φ0.25mm
Drawing line speed: 1800mpm/max
Main motor power: 11KW
Annealing Capacity: 30KVA
Take-up motor power: 3.7KW
Annealer method: DC three-section annealing
Suitable diameter of spool: Φ300mm
Revise system: PID synchronous control spooler
Capacity for wire receiving: 50kg
voltage: 380 V
Brake way: Magnetic brake
Machine dimention: 2100L*1600W*1700H
Machine weight: 3000kg
2. Certificate:
3.Main market:

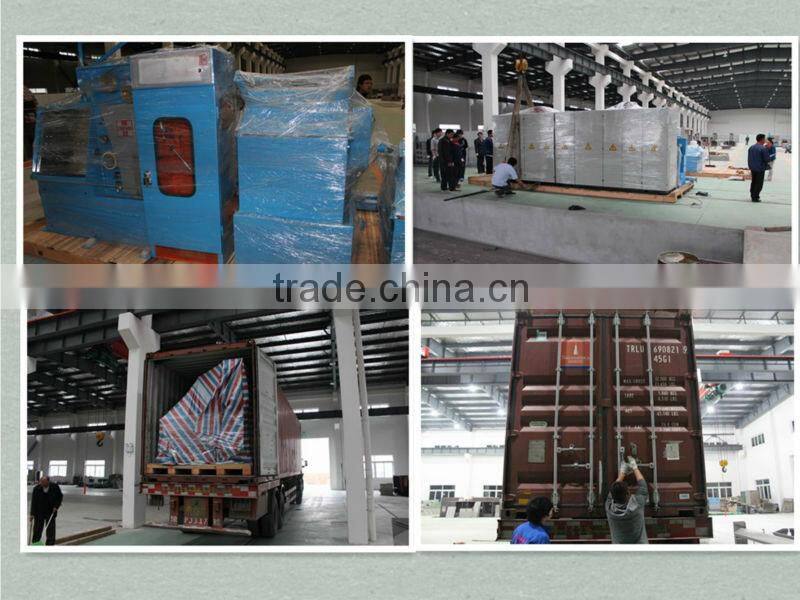

4.Packing:
FAQ
---Please contact with me for more details.
