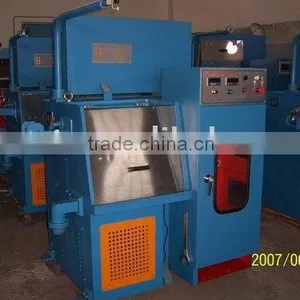

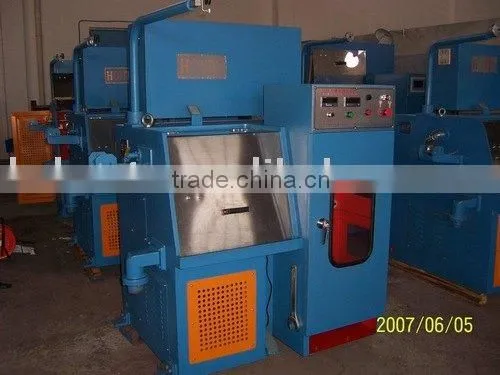

Fine Wire Drawing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-24D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
HONTA
Model Number
HT-24D
Usage
Drawing
model |
HT- 24D |
Inlet diameter |
φ0.5--φ1.0mm |
Outlet diameter |
φ0.08--φ0.25mm |
Max. Speed |
2000 m/min |
Max. dies |
24 |
Area reduction |
13% |
Area reduction of capstan |
8% |
Drawing gear |
sprayed porcelain on the surface |
Gear Max. diameter |
Φ194mm |
Capstan diameter |
Φ159mm |
structure of the machine body |
unit cast |
main machine power |
11KW three phase (AC) |
Take up power |
3.7KW three phase (AC) |
dynamic control |
frequency conversion control |
Transmission way |
Flat belt |
Line arranging |
Flat belt transmission and synchronous motor |
Size of take up |
φ 300 |
take up capacity |
50-60 |
Up and down axle way |
centre screw pressing way |
Voltage |
380V |
Brake |
electromagnetic brake |
Overall size |
2050L X 1600W X 1900H (mm) |
Weight |
2500KG |
Send Inquiry to This Supplier
Mr. Lichun Tan
General Manager
Kunshan City Hongtai Machinery & Electric Equipment Co., Ltd.
Jiangsu, China
Business Type
Manufacturer, Trading Company
Year Established
2006
Factory Size
10,000-30,000 square meters
Total Employees
51 - 100 People
