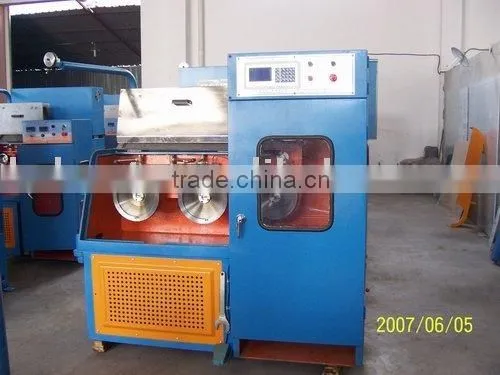

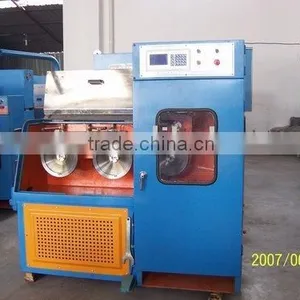

Help CenterFine Wire Drawing Machine
Related Products
-
HT-20DA Fine Wire Drawing Machine for CuNegotiableMOQ: 1 Set -
Fine Wire Drawing MachineNegotiableMOQ: 1 Set
-
HT-24DT Fine Wire Drawing Machine Jiangsu HONTA ISO, CE ManufacturerUS$ 20,000 - 30,000MOQ: 1 Set
-
High Speed Wire Drawing MachineNegotiableMOQ: 1 Set
-
Wire Drawing Machine With Annealer 22 DiesNegotiableMOQ: 1 Set
. Constructional feature and performance parameter
1. Control: Main motor shall be controlled by stepless transducer to adjust the speed, shall randomly regulate within 0~2000MPM, the linear speed meter indicating current drawing line speed of motor. The reeling motor is equipped with a frequency converter independently. .
2.Wire drawing method: Vertical four-axes, horizontal skid continuous wire drawing, small volume, not occupying space.
3.Driving method: The entire machine is driven by flat belt.
4.Automatic stop: Stop automatically when limited meter is reached, and the wire is to be broken to protect brake.
(5) Adopt the specialty high-quality product;
1) The surface of line drawing machine should spray with alumina;
2) All the bearings should adopt the NSK bearings import from Japan;
3) Switzerland drive flat belt with forever anti-static design.
2. Performance parameter
(1) Wire inlet range: Ø0.2-Ø0.60mm
(2) Wire outlet range: Ø0.05-Ø0.15mm
(3) Machinery speed: 2000MPM/Max
(4) MAX. number of dies: 24 pcs
Min. number of dies: 13 pcs
(5) Outline size of dies: Ø25mm×8~12mm
(6) Machinery reduction rate: the first to the 23rd is 11.5%
The 24th is10%
(7) Main motor: 5HP-4P AC motor and 5HP transducer
(8)Traversing ways: Synchronous motor silk rod drive, the width is 200mm
(9) Coiler motor: 3HP-4P AC motor and 3HP transducer
(10) Coiling capacity: 5~15KG
(11) Bobble outer dia. Ø280mm/ Max request a big internal diameter in order to next send-out program
(12) Braking: electromagnetic brake
(13) Electric consumption: 4~7.5KW
(14) Exterior size of machine: 1900L×1350W×1750Hmm
(15) Machinery weight: net weight1500kg, total weight 1700kg.
. Structure and function of machine:
1. Main motor structure
(1) Material: FC-25Gray pig iron HT-250
(2) Processing: The machine is casted to form entirely and treated by annealing to eliminate internal stress. And then been finished by reaming with fine boring machine. It has features of no deformation and high precision .
