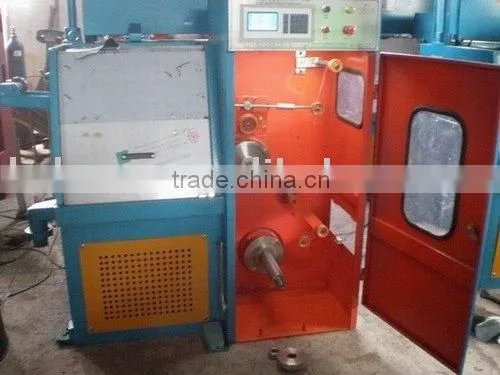

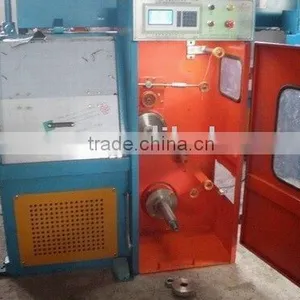

Fine Wire Drawing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-20D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
HONTA
Model Number
HT-20D
Usage
Drawing
model |
HT-20D |
Inlet diameter |
φ0.15--φ0.4mm |
Outlet diameter |
φ0.05--φ0.12mm |
Max. Speed |
2000 m/min |
Max. dies |
20 |
Area reduction |
11% |
Area reduction of capstan |
6% |
Drawing gear |
sprayed porcelain on the surface |
Gear Max. diameter |
Φ120mm |
Capstan diameter |
Φ120mm |
structure of the machine body |
unit cast |
main machine power |
3.7KW three phase (AC) |
Take up power |
2.2KW three phase (AC) |
dynamic control |
frequency conversion control |
Transmission |
Flat belts |
Line arranging |
Flat belt transmission and synchronous motor |
Size of take up |
Φ 250 |
Bobbin loading capacity |
30 kgs |
Up and down axle way |
centre screw pressing way |
Voltage |
380V |
Brake |
electromagnetic brake |
Overall size |
1900L X 1350W X 1750H (mm) |
Weight |
1900KG |
