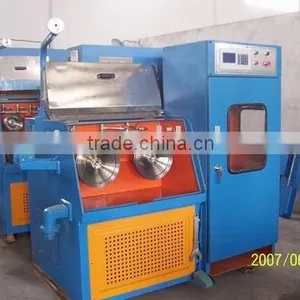

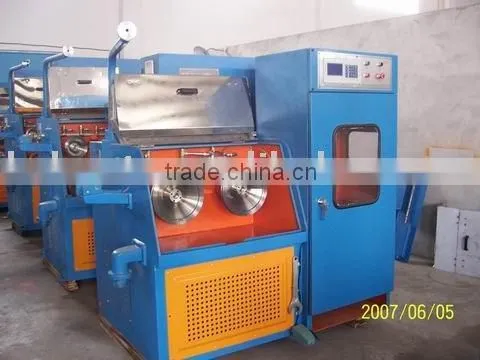

Fine Wire Drawing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-14D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
HONTA
Model Number
HT-14D
Usage
Drawing
model |
HT-14D |
Inlet diameter |
φ0.8 -- φ1.6mm |
Outlet diameter |
φ0.25 -- φ0.6mm |
Max. Speed |
1500m/min |
Max. dies no. |
14 |
Area reduction |
15% |
Area reduction of capstan |
8% |
Drawing gear |
sprayed tungsten carbide on the surface |
Gear Max. diameter |
Φ316mm |
Capstan diameter |
Φ268mm |
structure of the machine body |
steel plats by welding, anneaning |
main machine power |
15KW three phase (AC) |
Take up power |
5.5KW three phase (AC) |
dynamic control |
frequency conversion control |
Transmission way |
Flat belt |
Line arranging |
Flat belt transmission and synchronous motor |
Size of take up |
Φ300-400 |
Bobbin loading capacity |
50-80 kgs |
Up and down axle way |
centre screw pressing way |
Voltage |
380V |
Brake |
electromagnetic brake |
Overall size |
1950L X 1100W X 1750H (mm) |
Weight |
2200KG |
