AISI304 316 316L foor grade screen fine filter ss 430 wire mesh
Stainless steel wire mesh is made stainless steel wire and then woven together to form a square opening or oblong opening. Stainless steel woven wire cloth has outstanding characteristics of resistance to the rust, corrosion, acid, alkali, heat and chemical. Also the stainless steel woven wire cloth has high strength and durability. Stainless steel woven wire cloth has widely applications in the industries, architecture, residences and other places.
1. Different Types of Stainless Steel Woven Wire Cloth
-
Market Grade
The market grade stainless steel woven wire cloth is the most common specifications of industrial wire cloth. It can be used in a wide range of applications. The weaving method can be plain weave and twill weave. -
Mill Grade
The mill grade stainless steel woven wire cloth is used mostly in sifting and sizing applications. It has higher percent of open area compared with the market grade, but less than that of tensile bolting grade. The weaving method is commonly the plain weave. -
Tensile Bolting Grade
Tensile bolting grade stainless steel woven wire cloth is widely used in the sifting and sizing applications and general filtration applications. It has high percentage of open area than the market and mill grade cloth. It is typically used when maximum throughput is crucial. The weaving method is commonly plain weave.
2. Different Weaving Method of Stainless Steel Woven Wire Cloth
-
Plain Weave
Each weft wire passes over one and under one warp wire, and each warp wire passes over one and under one weft wire, every weft wire have and warp wire the same diameter. -
Twill Weave
Twill weave means each weft wire passes over two and under two warp wires, and each warp wire passes over and under two weft wires. The wire diameter of the warp and weft is mostly same. The open area is smaller than the plain weave. -
Dutch Weave
Different with the plain weave and twill weave. Dutch weave stainless steel woven wire cloth has different wire diameter and aperture size in the weft and warp. Commonly the diameter in the weft is thicker than the warp wire. Weft wire is in the length direction with the warp wire in the width direction. The dutch weave can be divided into plain dutch weave and twill dutch weave.
3. Specifications of Stainless Steel Woven Wire Cloth
- Material: stainless steel wire 304, 304L, 316, 316L, 310, 314, 410, 430.
- Weaving type: plain weave, twill weave, dutch twill.
- Wire diameter: 0.022mm - 3.5mm.
-
Aperture size:Grade: mill grade, market grade and heavy duty grade
- Plain weave up to 425 mesh.
- Twill weave up to 635 mesh.
- Dutch weave up to 400 × 2800 mesh.
4. Features of Stainless Steel Woven Wire Cloth
- Excellent resistance to the rust and corrosion.
- Resistance to the acid and alkali.
- Cleaner and brighter appearance.
- Resistance to the chemical and harsh weather.
- There is no welded point; the woven wire is long lasting.
- High strength and durable.
- Versatility in fabrication. The stainless steel can be fabricated to various weaving types, aperture size and diameter. It can fit different requirements of the customers.
- Customized. We can supply the standard specification of the stainless steel woven wire cloth, and the special specifics and requirements are available.
5. Application of Stainless Steel Woven Wire Cloth
Stainless steel woven wire cloth is used in an almost unlimited number of applications and industries. Some of the common application include filtering, protection, feeding decorating.
- Stainless steel woven wire cloth can be used as woven wire filter cloth to filter liquid, solid and gas in the filtering industries, such as the filter discs, filter tubes, dipping baskets, test sieves, filter elements or strainers.
- Stainless steel woven wire cloth can be used as window screens in the residences to prevent insects from entering the houses.
- The stainless steel crimped woven wire cloth can be used as the feeding screen for the pigs and other animals.
- The stainless steel woven wire cloth can be used in the architectural buildings as the decorative woven wire mesh.
- The stainless steel woven wire cloth is widely used in printing of electronics, textiles, ceramics, glass and other industries.

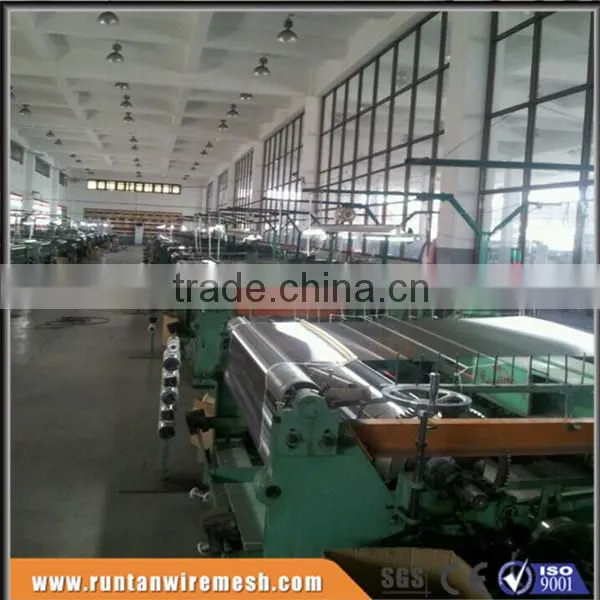

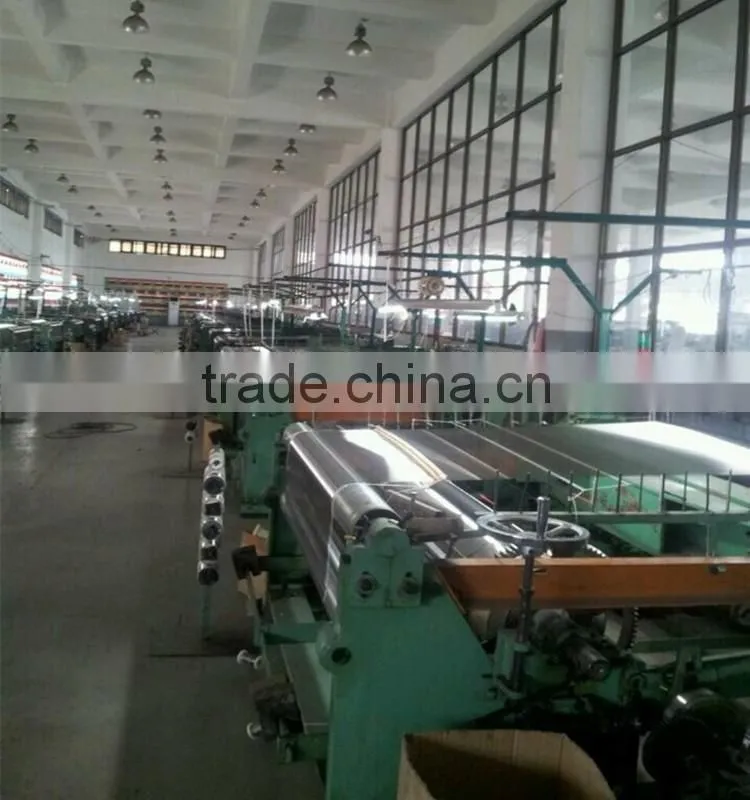

6. Machine of Stainless Steel Woven Wire Cloth

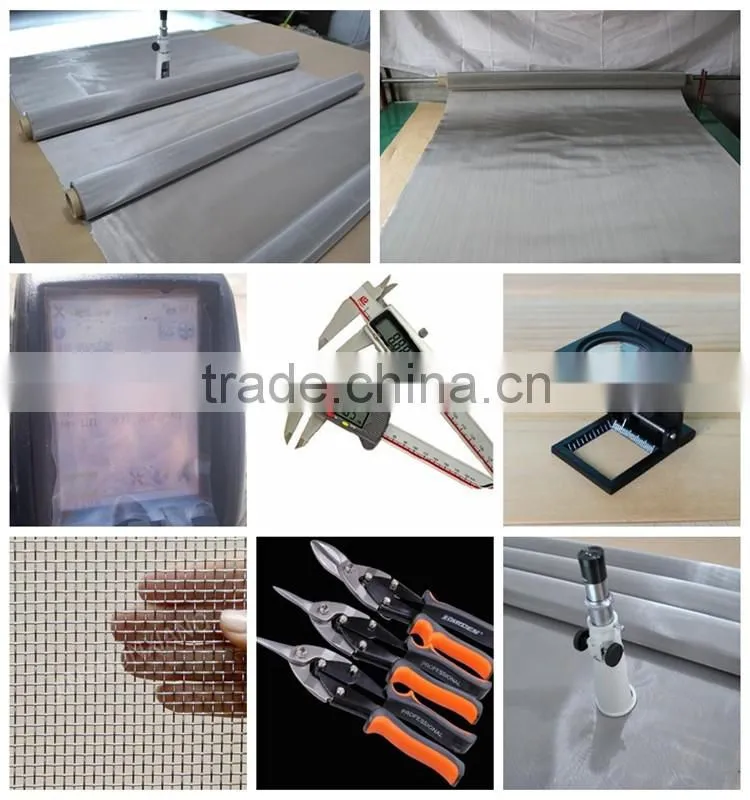

7. Testing Tools of Stainless Steel Woven Wire Cloth

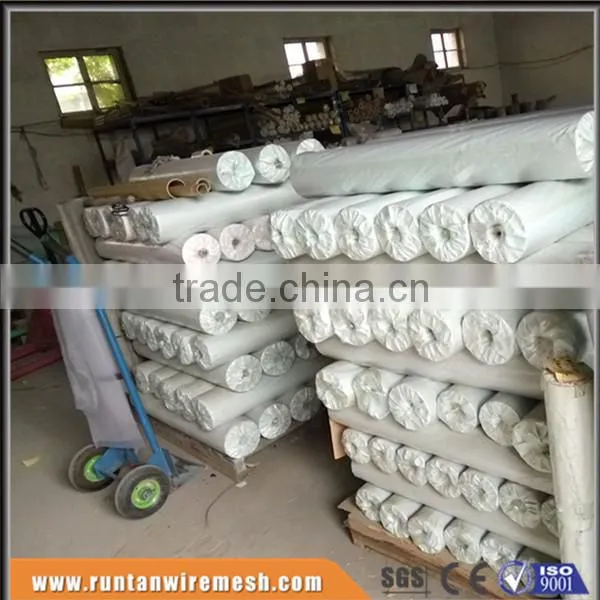

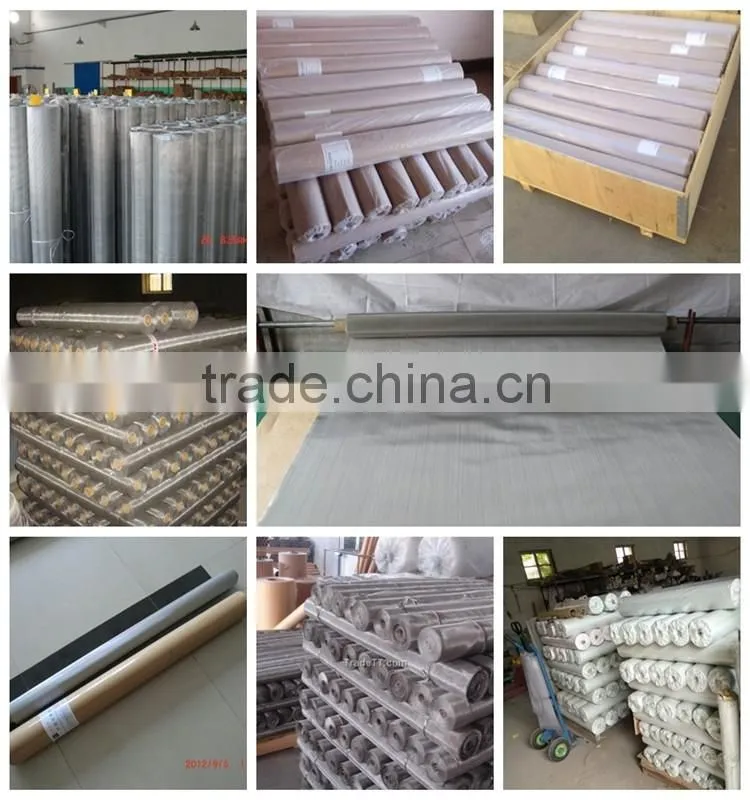

8. Packing And Shipment of Stainless Steel Woven Wire Cloth

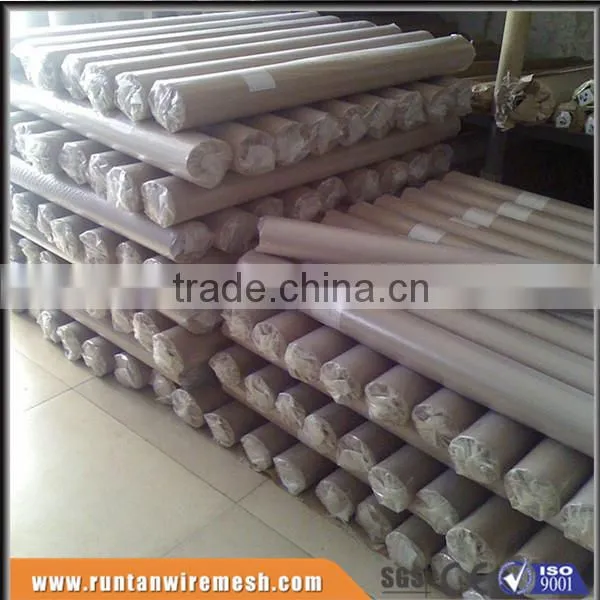

Packing: Packed in roll by paper tube then by kraft paper inside and plastic film outside,at last put in plywood boxes regularlly which is the standard export package;
Shipment: Within 3 days after receiving the deposit;
9. Company View
Factory |
Anping Runtan Metal Wire mesh products Factory |
Scale |
13340m2 |
Employees |
205 people |
QC Department |
8 Researchers |
Main Products |
stainless steel wove wire mesh,Wire Mesh Fence,Temporary Fence,Chian Link Fence, Double Wire Fence,Palisade Fence, Y Fence Post, T Fence Post, ect. |
Quality Control |
ISO9001, BV,CE,SGS Testing |
10. ISO9001,CE,SGS Certificate
(1) Free sample
(2) Factory directly sale
(3) It can customized according to the requirements or drawings
(4) 24 hours online
(5)With the fastest speed of delivery
(6)Answer questions in a timely manaer
(7)Terrific after-sales service:24 hours around the clock and 12 months warranty
(8)3-5 Years maintenance service for the product
We have identified following criterias to consider when ordering or requesting a quote.
-
QUANTITY NEEDED – How many rolls do you exactly need?
A standard roll is 30m length. Most of our clients usually place an order from 10-15 Rolls. - DIMENSIONS NEEDED – What is the length and width of each roll. Our standard widths are usually from 0.5m-6.0m, and we also could take orders by some other special sizes.
- MESH – number of openings per lineal inch.
- WIRE DIAMETER – expressed in decimal inches.
-
TYPE OF WEAVE – Plain, Twilled, Plain Dutch, Twilled Dutch, etc.
- For example, a customer should supply following details when places an order:
·1 piece 25 ft x 48” wide.
·4 x 4 mesh (4 openings per inch in each direction).
·047” diameter wire.
·Type 304 Stainless Steel Woven Wire Mesh.
·Plain Weave or Twill Weave. -
What does the price and delivery quote include?
Prices quoted are FOB Tianjin Xingang without any freight charges or any applicable taxes. -
Can I get samples?
Certainly we could supply you the samples for free if for small samples not larger than 1 square meter, but sometimes you should pay for the fright charge by DHL or Fedex. -
What is your minimum order?
There is no limits for the stocked products such as 1 Roll, 2Roll, etc, but for some special orders we have to manufacture exactly according to clients’ request. -
What are your payment terms?
We usually accept 30% prepaid payment then balance before its delivery for the stocks and we also could do 30% prepaid, balance after scanning the B/L copy. -
What is your return policy?
Please kindly inspect material before cutting, modifying or distributing. If there are quality problems please kindly return to us only in original condition for refund or replacement as clients’ request.
The buyer must notify us within ten calendar days after receipt of material if any problem.
Unauthorized returns will not be accepted.
