AISI304 316 316L screen filter Stainless steel woven wire cloth

AISI304 316 316L woven screen filter Stainless steel woven wire cloth

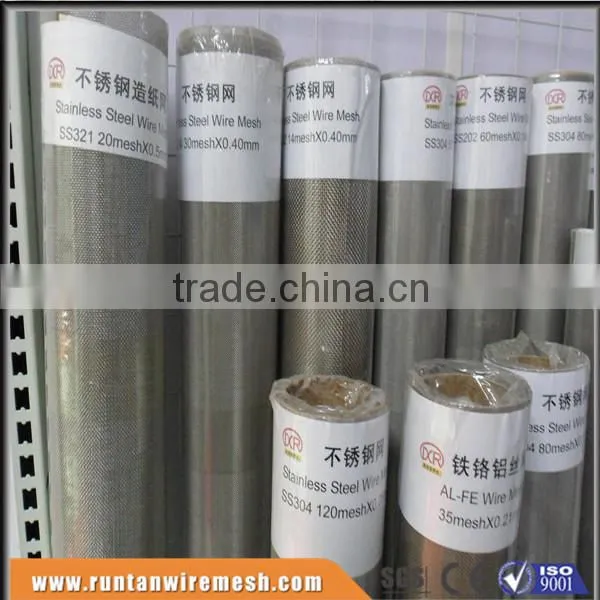

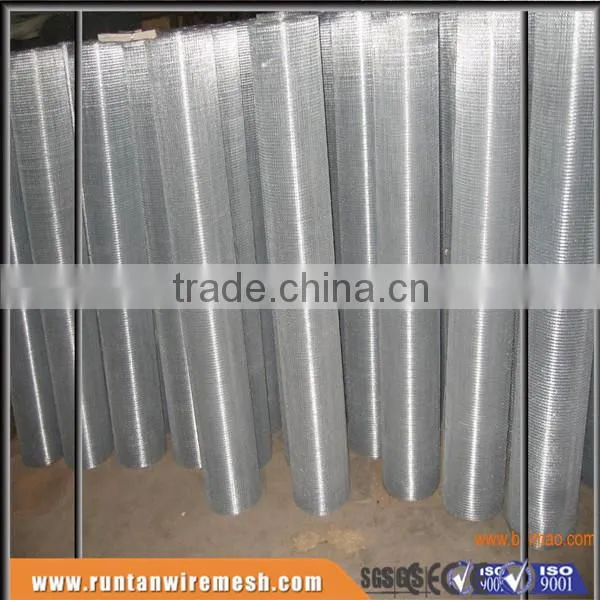

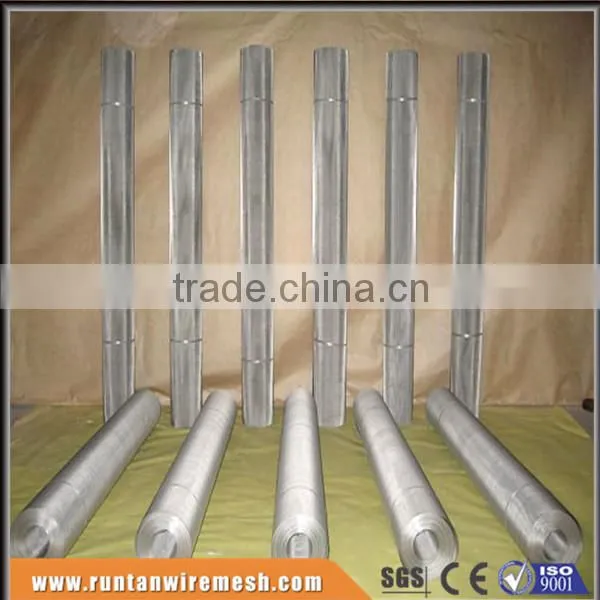

Stainless steel woven wire cloth is made stainless steel wire and then woven together to form a square opening or oblong opening. Stainless steel woven wire cloth has outstanding characteristics of resistance to the rust, corrosion, acid, alkali, heat and chemical. Also the stainless steel woven wire cloth has high strength and durability. Stainless steel woven wire cloth has widely applications in the industries, architecture, residences and other places.

• Market Grade
  The market grade stainless steel woven wire cloth is the most common specifications of industrial wire cloth. It can be used in a wide range of applications. The weaving method can be plain weave and twill weave.
• Mill Grade
  The mill grade stainless steel woven wire cloth is used mostly in sifting and sizing applications. It has higher percent of open area compared with the market grade, but less than that of tensile bolting grade. The weaving method is commonly the plain weave.
• Tensile Bolting Grade
  Tensile bolting grade stainless steel woven wire cloth is widely used in the sifting and sizing applications and general filtration applications. It has high percentage of open area than the market and mill grade cloth. It is typically used when maximum throughput is crucial. The weaving method is commonly plain weave.

2. Different Weaving Method of Stainless Steel Woven Wire Cloth

• Plain Weave
  Each weft wire passes over one and under one warp wire, and each warp wire passes over one and under one weft wire, every weft wire have and warp wire the same diameter.
• Twill Weave
  Twill weave means each weft wire passes over two and under two warp wires, and each warp wire passes over and under two weft wires. The wire diameter of the warp and weft is mostly same. The open area is smaller than the plain weave.
• Dutch Weave
  Different with the plain weave and twill weave. Dutch weave stainless steel woven wire cloth has different wire diameter and aperture size in the weft and warp. Commonly the diameter in the weft is thicker than the warp wire. Weft wire is in the length direction with the warp wire in the width direction. The dutch weave can be divided into plain dutch weave and twill dutch weave.

3. Specifications of Stainless Steel Woven Wire Cloth

• Material: stainless steel wire 304, 304L, 316, 316L, 310, 314, 410, 430.
• Weaving type: plain weave, twill weave, dutch twill.
• Wire diameter: 0.022mm - 3.5mm.
• Aperture size:Grade: mill grade, market grade and heavy duty grade
  • Plain weave up to 425 mesh.
  • Twill weave up to 635 mesh.
  • Dutch weave up to 400 × 2800 mesh.

4. Features of Stainless Steel Woven Wire Cloth

• Excellent resistance to the rust and corrosion.
• Resistance to the acid and alkali.
• Cleaner and brighter appearance.
• Resistance to the chemical and harsh weather.
• There is no welded point; the woven wire is long lasting.
• High strength and durable.
• Versatility in fabrication. The stainless steel can be fabricated to various weaving types, aperture size and diameter. It can fit different requirements of the customers.
• Customized. We can supply the standard specification of the stainless steel woven wire cloth, and the special specifics and requirements are available.

5. Application of Stainless Steel Woven Wire Cloth

Stainless steel woven wire cloth is used in an almost unlimited number of applications and industries. Some of the common application include filtering, protection, feeding decorating.

• Stainless steel woven wire cloth can be used as woven wire filter cloth to filter liquid, solid and gas in the filtering industries, such as the filter discs, filter tubes, dipping baskets, test sieves, filter elements or strainers.
• Stainless steel woven wire cloth can be used as window screens in the residences to prevent insects from entering the houses.
• The stainless steel crimped woven wire cloth can be used as the feeding screen for the pigs and other animals.
• The stainless steel woven wire cloth can be used in the architectural buildings as the decorative woven wire mesh.
• The stainless steel woven wire cloth is widely used in printing of electronics, textiles, ceramics, glass and other industries.

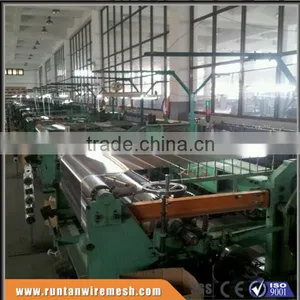

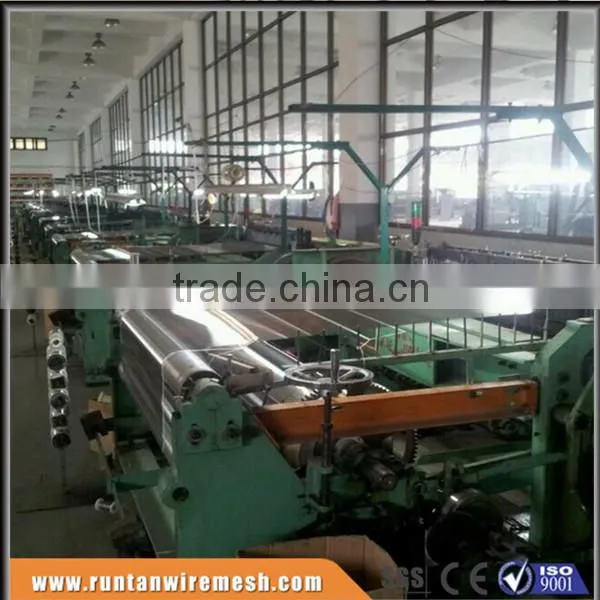

6. Machine of Stainless Steel Woven Wire Cloth

7. Testing Tools of Stainless Steel Woven Wire Cloth

8.  Packing And Shipment of Stainless Steel Woven Wire Cloth

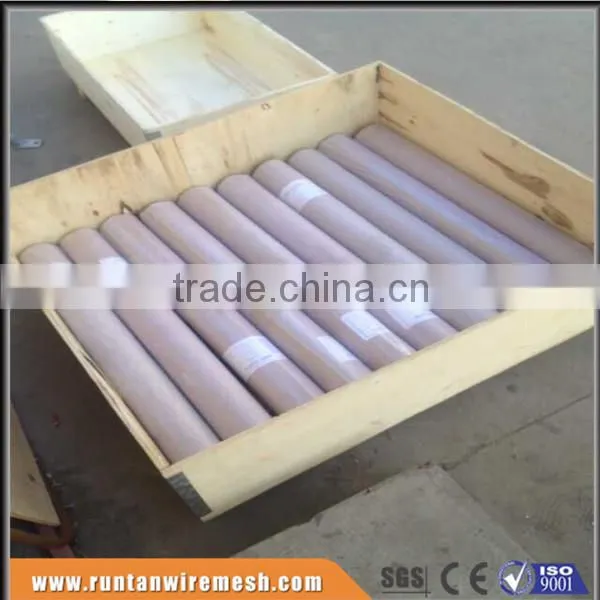

Packing:  Packed in roll by paper tube then by kraft paper inside and plastic film outside,at last put in plywood boxes regularlly which is the standard export package;

Shipment: Within 3 days after receiving the deposit;
