Double Twist Bunching Machine With Mechanical Pay-offs
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-800P
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Double Twist Bunching Machine With Double Motorised Pay-off Wire Twisting Machine Pay-off MachineNegotiableMOQ: 1 Set -
Double Twist Bunching Machine With Mechanical Pay-offsNegotiableMOQ: 1 Set
-
High Efficiency Bunch Wrapping Machine for Copper With Double Twisting Buching MachineNegotiableMOQ: 1 Set
-
( Bunchine Machine ) High Speed Bunching MachineNegotiableMOQ: 1 Set
-
[Main Product]HONTA Double Twist Bunching MachineUS$ 1 - 80,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
HONTA
Model Number
HT-800P
Usage
Twisting

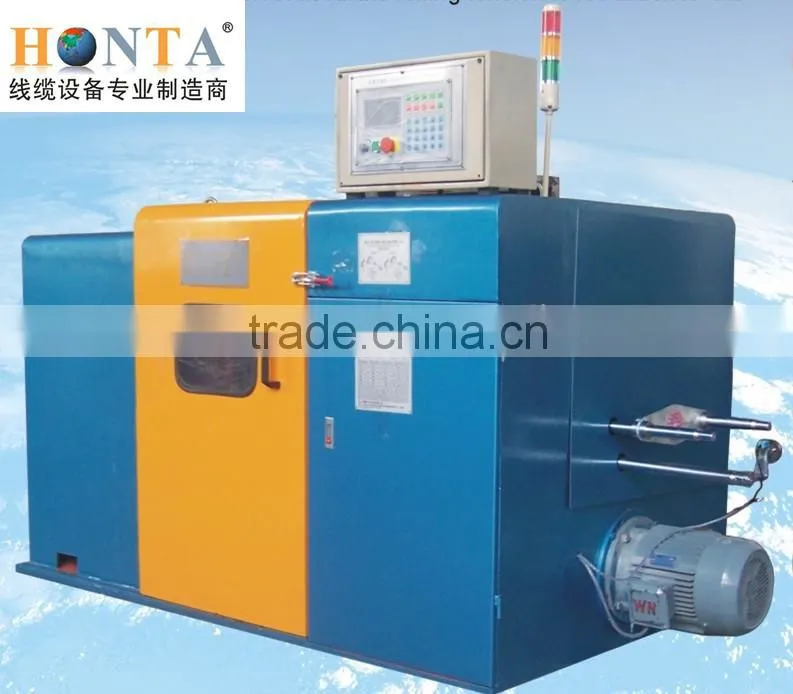

Double Twist Bunching Machine with Mechanical Pay-offs
Model:HT-800P
Structure: our double twist bunching machine consists of two main parts, the pay-off part and the main machine.
Function: This machine is used for stranding of bare copper wires, tined copper wire, CCA etc..
The bow: through dynamic balance test to ensure the minimum vibration at a high speed running; with guide ceramics to make wire pass stably.
Bearing cooling and lubrication: by oil, it is more suitable for machine running at a high speed.
Pulling: by changing the pulling capstans to change the stranding pitches. There is no open gear transmission, all transmission are led by the synchronous tooth belts. The pulling casptans are coated with chromium.
Technical data
Wire diameter range : φ 0.39 - φ1.70mm
Bunched conductor diameter : φ1.2 - φ5.5mm
Stranding sectional area : 1.0- 16.0 mm2
Rotational speed : Max 1200rpm / 2400TPM
Drive motor : 15 KWAC
Stranding pitches : 48 - 120mm
Spindle lubrication : by grease
Noose level : ≤ 85dB(A)
Operation direction : left hand machine
Machine dimension : approx. 3800×2800×2000
Weight : about 6500KGS

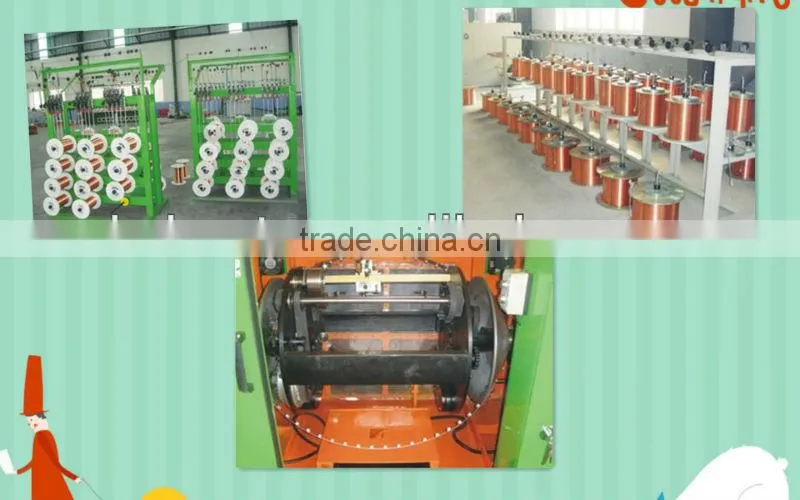

Pictures
Certification
Please contact for more information!
