( Bunchine Machine ) High Speed Bunching Machine

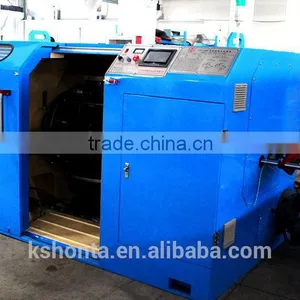

( Bunchine Machine ) High Speed Bunching Machine thumbnail-1

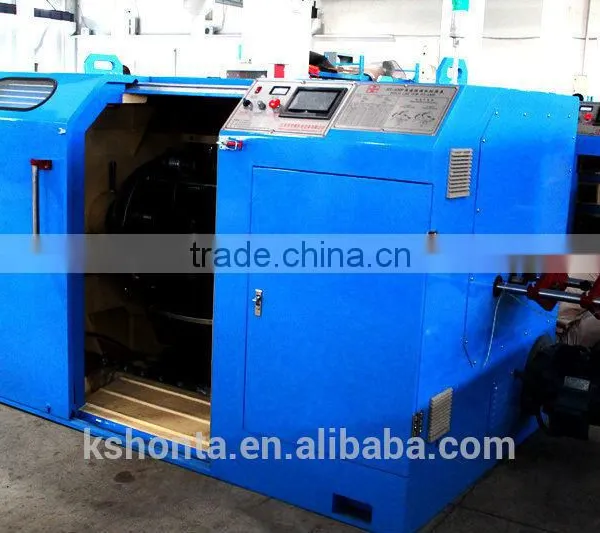

( Bunchine Machine ) High Speed Bunching Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-800P
Contact Supplier Request Quote Chat Now
Kunshan City Hongtai Machinery & Electric Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name HONTA
Model Number HT-800P
Usage Stranding



Product Description



Features:

  • Ø  Magnetic powder clutch tension auto control can ensure constant tension from
  •      empty  bobbin to full bobbin;
  • Ø  Synchronous belt drive; mechanical pitch change; stable pitch;
  • Ø  Bobbin loading and unloading is controlled by hydraulic with motor; it’s easy to
  •     oprtate.

Technical Specification:

Machine model

HT-500P

HT-630P

HT-800P

HT-1000P

HT-1250P

Sectional area twisted(mm2)

0.50-2.50

0.75-6.00

2.50-16.0

6.0-25.0

10.0-50.0

Inlet wire dia.

0.08-0.45

0.25-1.00

0.30-1.60

0.40-1.80

0.60-2.50

Twisting pitch

4.22-39.64mm

11.15-100mm

17-200mm

35-200mm

35-300mm

Main motor power

AC7.5KW

AC11KW

AC18.5KW

AC22KW

AC37KW

Max. rotating speed

2200RPM

1800RPM

1200RPM

1000RPM

800RPM

Tension control

Magnetic powder clutch automatic adjustment

Traverse type

Polished rod traverse, wire lay is adjustable

Wire break sensor

Digital display, machine auto-stop if wire break

Rotating direction

S.Z Direction

Spooling bobbin

500mm

630mm

800mm

1000mm

1250mm

 ------------------------------------------



Finished Products

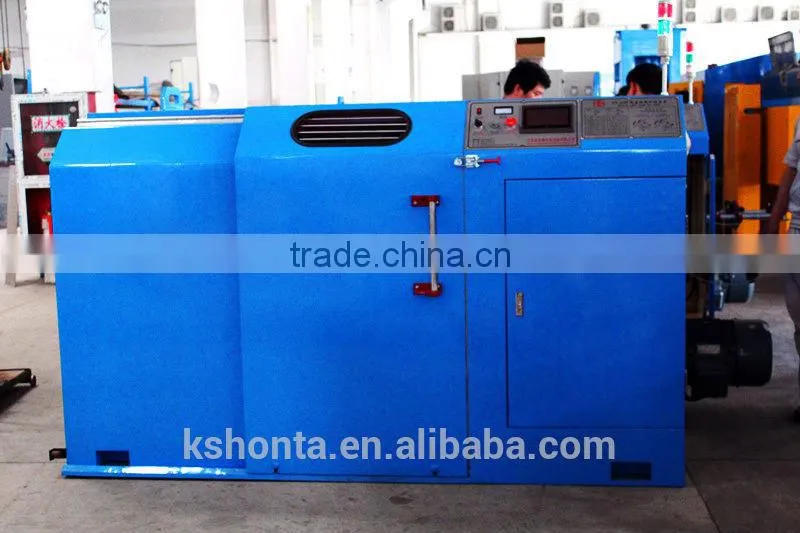

HT-630P Bunching machine:


( Bunchine machine ) high speed bunching machine( Bunchine machine ) high speed bunching machine

Company Information

 Our factory show:

( Bunchine machine ) high speed bunching machine

Certifications

 CE for multi wire drawing machine:

( Bunchine machine ) high speed bunching machine



Trade show

 Exhibition is shanghai city:

( Bunchine machine ) high speed bunching machine

Commissioning

 Commissioning wire drawing machine in Turkey :

( Bunchine machine ) high speed bunching machine



Customer show

Our customers come from different countries around the world.



( Bunchine machine ) high speed bunching machine
